BH0101A portable power station with 1200W pure sine wave output, 2.56kWh LiFePO4 battery, 1000W MPPT solar input and 10ms UPS transfer.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

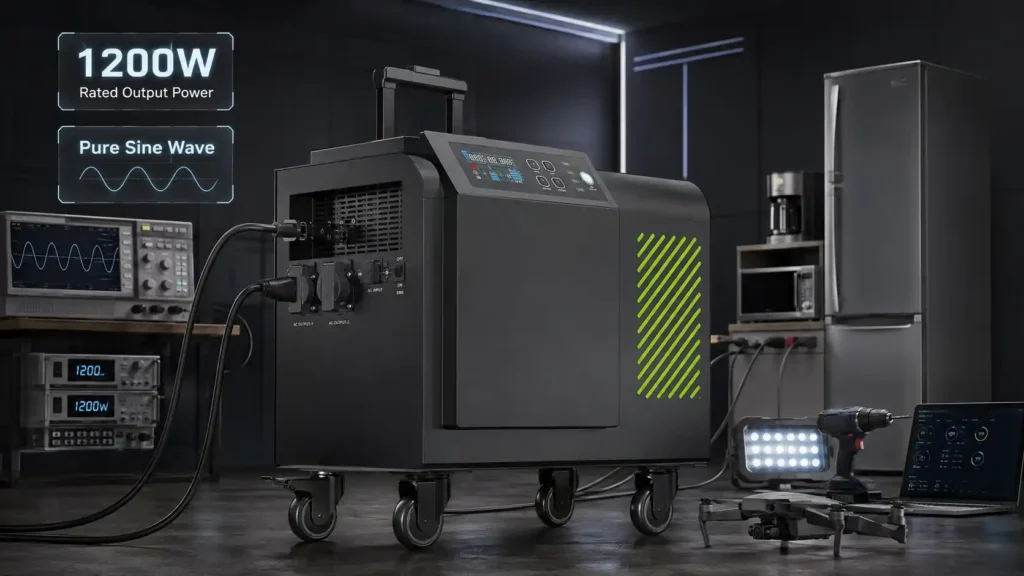

The BH0101A delivers 1200W rated power with 230V pure sine wave AC output for household, office and sensitive electronic equipment. Output voltage can be configured for 208V, 220V, 230V or 240V.

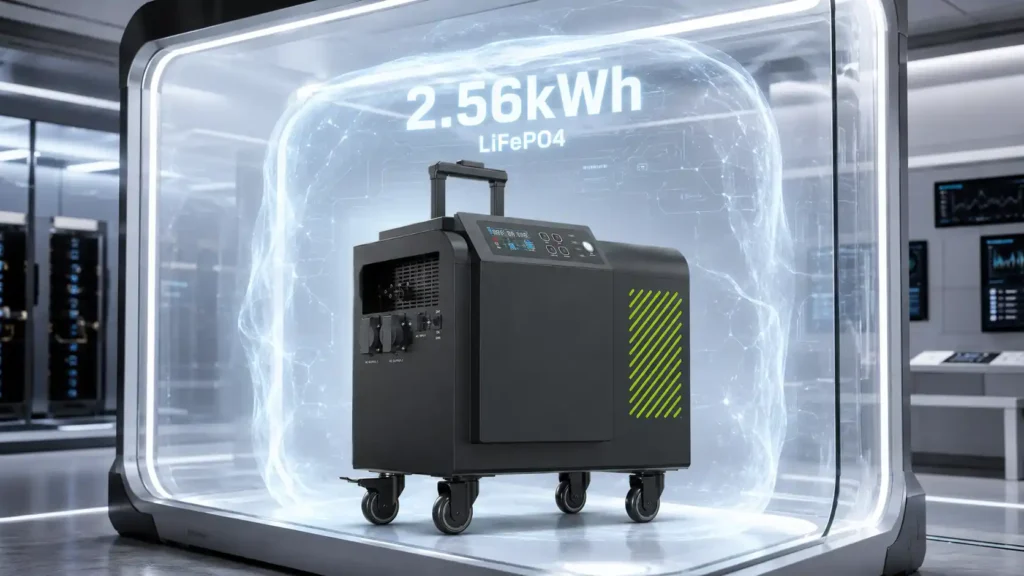

A 2.56kWh LiFePO4 battery provides substantial stored energy for backup and light-duty energy applications. The integrated BMS manages battery operation and multiple protection functions.

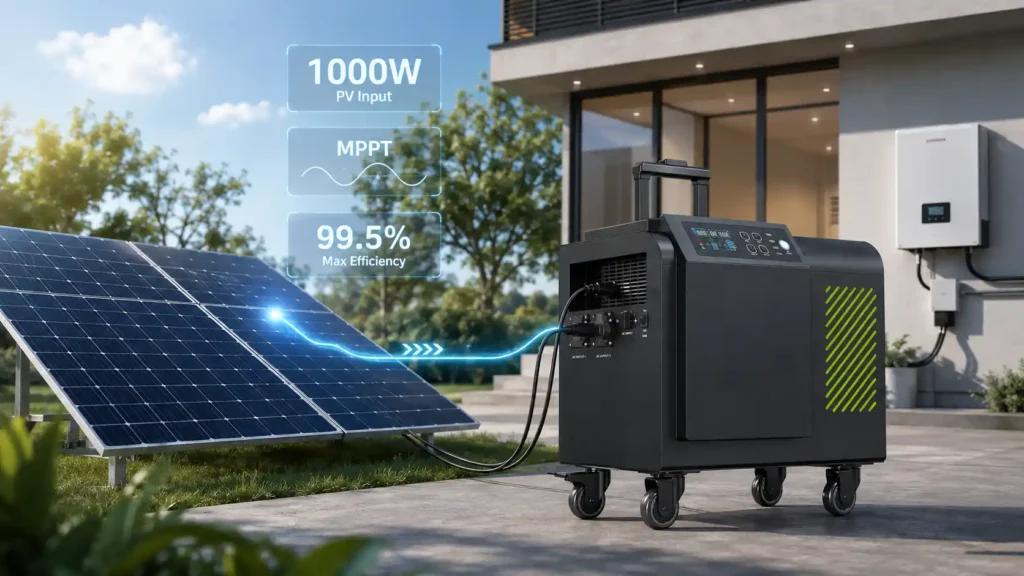

The integrated MPPT controller supports 20–100VDC solar input with up to 1000W PV input power. Maximum MPPT tracking efficiency reaches 99.5% for efficient solar-energy utilization.
The system supports both AC grid and solar PV charging for flexible energy replenishment. Its AC input operates at 230V/50Hz with a wide 90–280VAC input range.

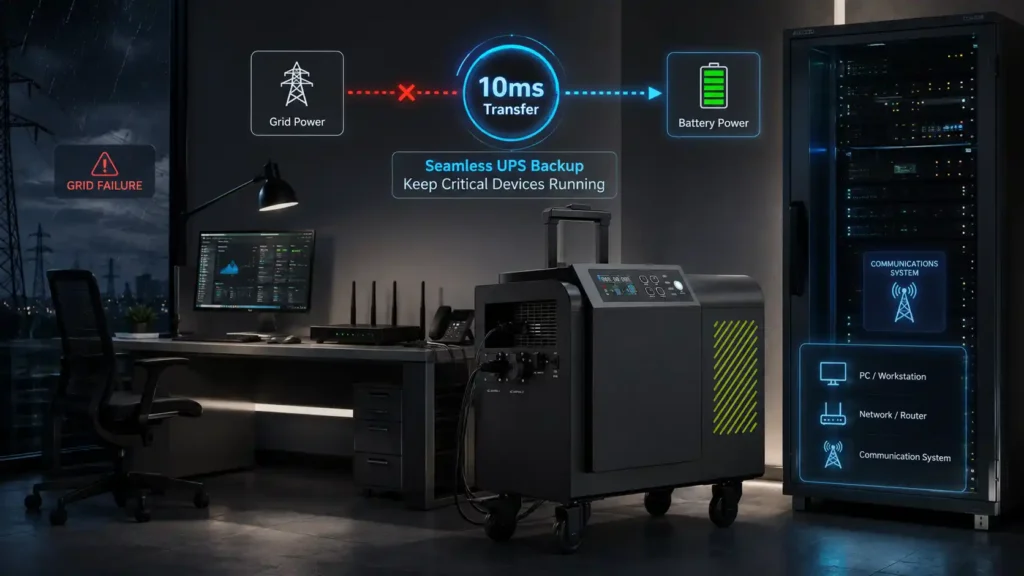

A 10ms grid-to-battery transfer time helps maintain power continuity for critical equipment during outages. Generator mode further expands backup-power flexibility.
The integrated LCD interface displays key AC, PV, battery, load and operating information. Controls allow convenient system monitoring and configuration.

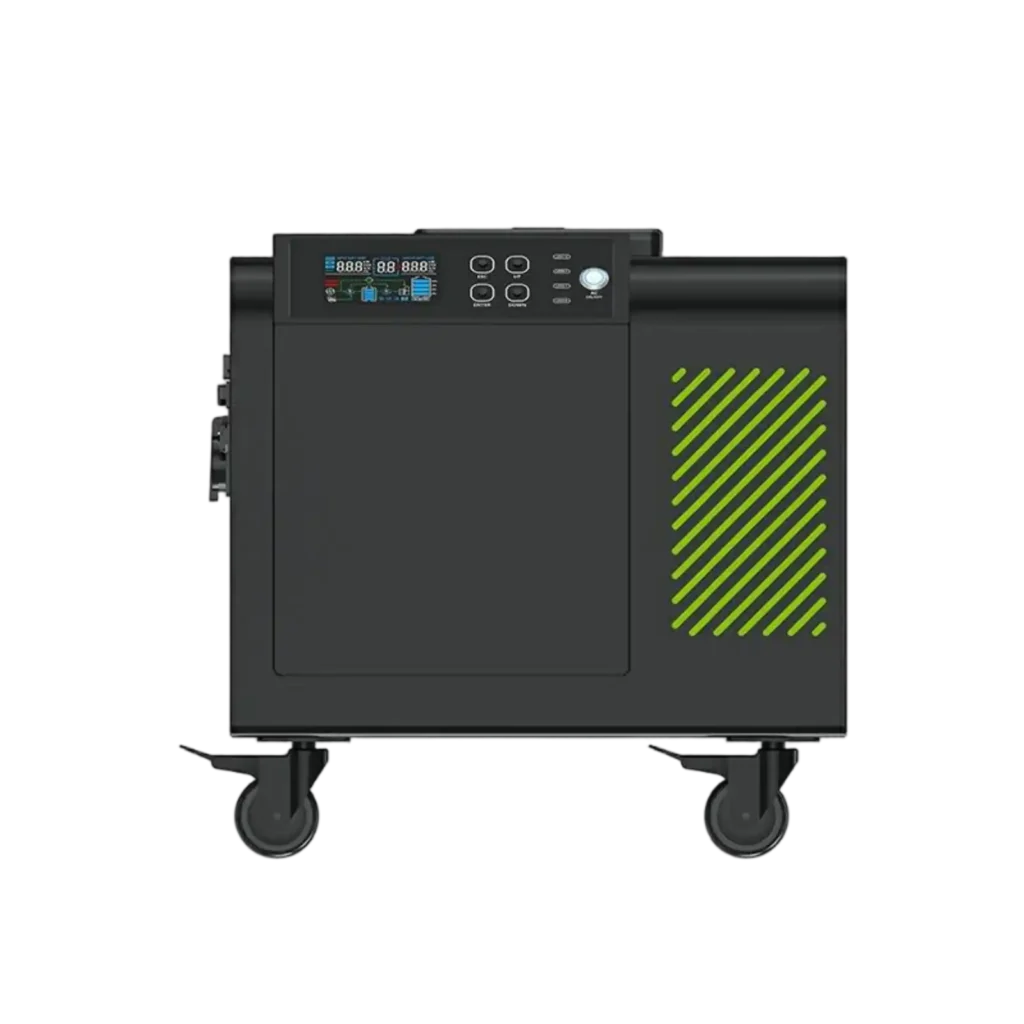

The reference-matched enclosure integrates four caster wheels and a retractable transport handle for easier movement. Its cabinet-style construction is suited to home backup, workshops and other mobile deployment scenarios.
VoltCrave Power supports customized configurations for different markets and project requirements. Plug types, AC output standards, housing colors and product specifications can be adapted for customer needs.
| Parameter | Specification |
|---|---|
| Model | BH0101A |
| Rated AC Output | 1200W |
| Battery Capacity | 2.56kWh |
| Battery Type | LiFePO4 |
| AC Output | 230V Pure Sine Wave |
| Configurable Output Voltage | 208V / 220V / 230V / 240V |
| AC Input | 230V / 50Hz |
| AC Input Voltage Range | 90–280VAC |
| Maximum AC Input Current | 10A |
| Solar PV Input | 20–100VDC |
| Maximum PV Input Power | 1000W |
| Solar Controller | MPPT |
| Maximum MPPT Efficiency | 99.5% |
| Transfer Time | 10ms |
| Battery Management | BMS |
| Display | LCD |
| Communication / Configuration | RS232 |
| Supply Ability | 10,000 Units/Month |
| Customization | Plug Configuration, AC Output Standards, Housing Color and Specifications According to Customer Requirements |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
