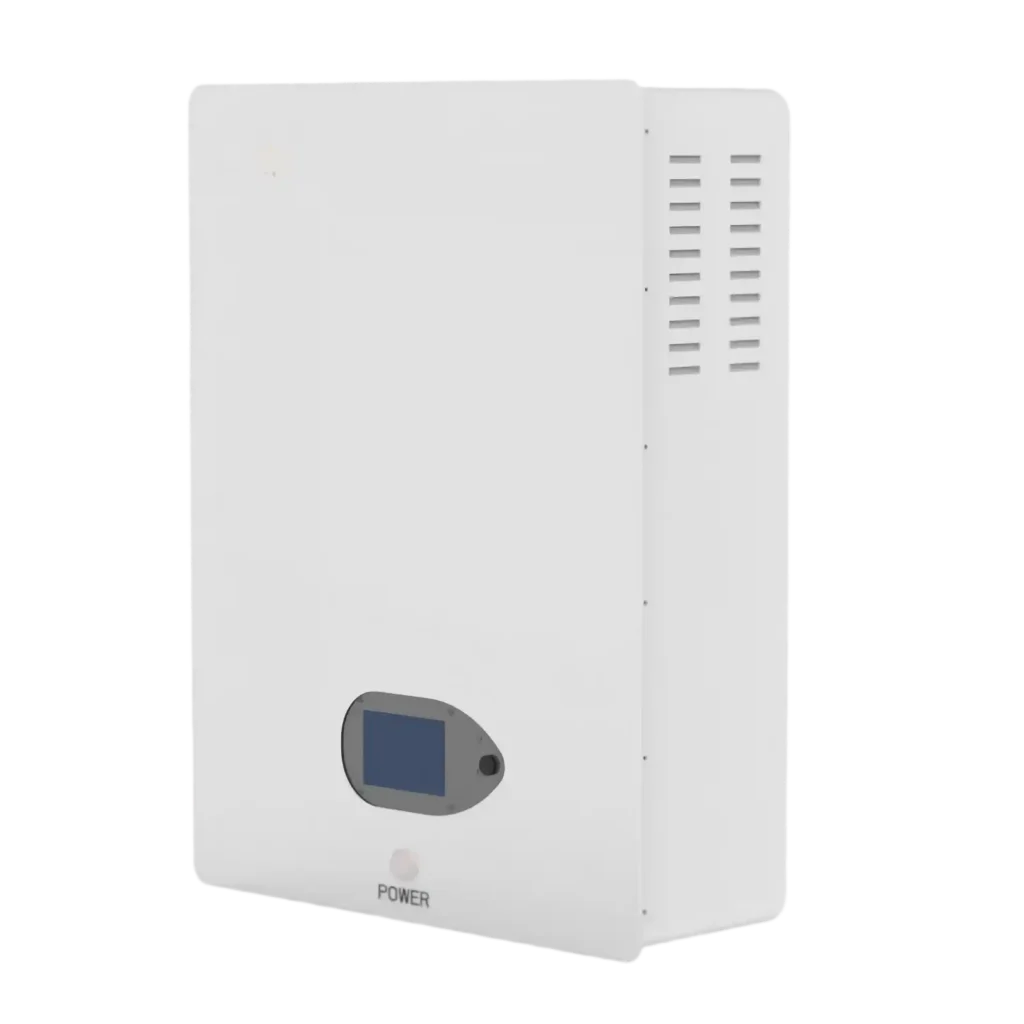

10KW wall-mounted energy storage system with 10.24KWh 51.2V 200Ah LiFePO4 battery, hybrid inverter, 6000-cycle life and solar charging.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
The 51.2V 200Ah LiFePO4 battery provides 10.24KWh of nominal energy for residential storage and backup applications. Its integrated configuration provides a compact wall-mounted energy solution.
The system integrates a 10KW hybrid inverter with 210V–230V AC output at 50Hz. It combines battery storage and power conversion for residential energy applications.
The PV input supports a 120–450VDC MPPT voltage range, enabling direct integration with photovoltaic arrays. Maximum battery charging current reaches 100A.
The LiFePO4 battery is specified for 6000 cycles and operates from -20°C to 60°C. Maximum charge and discharge currents are both rated at 100A.
An integrated BMS manages and protects the energy storage battery during operation. This provides centralized battery management for residential energy-storage applications.
During a utility power interruption, the system can automatically switch to stored battery energy to supply connected household loads. It is designed for residential emergency and backup-power applications.
The system supports up to 16 storage batteries connected in parallel for capacity expansion. This scalable architecture can accommodate different household and project energy requirements.
VoltCrave Power supports B2B energy-storage configurations for different markets and residential projects. System specifications and configurations can be adapted according to customer requirements.
| Parameter | Specification |
|---|---|
| System Type | Wall-Mounted Energy Storage System |
| Inverter Type | 10KW Hybrid Inverter |
| Rated Output Power | 10KW |
| AC Output Voltage | 210V–230V AC |
| Output Frequency | 50Hz |
| PV MPPT Voltage Range | 120VDC–450VDC |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Battery Energy | 10.24KWh |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Charge Cut-Off Voltage | 58.4V |
| Discharge Cut-Off Voltage | 40V |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | 0°C to 45°C |
| Cycle Life | 6000 Cycles |
| Parallel Expansion | Up to 16 Batteries |
| Battery Management | Built-In BMS |
| Monitoring | WiFi Module |
| Warranty | 5 Years |
| Customization | Specifications According to Customer Requirements |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
