12kW All-in-One Hybrid Inverter for Home Energy Storage

01 · Overview

Product Introduction

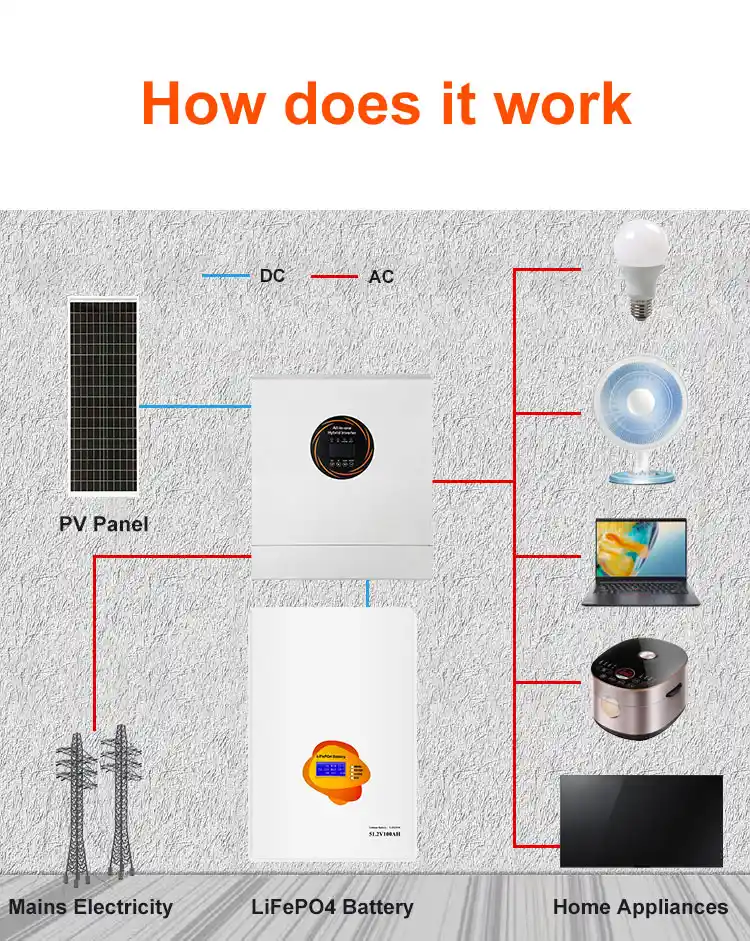

The 12kw all in one hybrid inverter is an integrated energy storage solution designed for residential solar power systems, combining photovoltaic conversion, battery charging, and AC power output functions into one compact unit. This residential hybrid inverter is developed to improve solar energy utilization and provide reliable power management for modern homes.

With a rated output power of 12KW, maximum PV input power of 7500W, and advanced MPPT solar charging technology, the system supports efficient solar energy conversion and flexible battery integration. The all-in-one structure simplifies installation compared with traditional separated inverter and energy storage configurations.

The inverter supports 220-240VAC input and 220/230/240VAC output voltage, making it suitable for different residential power environments. Multiple communication interfaces including RS232, RS485, and dry contact provide flexible connection options for battery systems and energy management applications.

Target Customers and Applications

The 12kw all in one hybrid inverter is designed for professional customers including solar installers, distributors, EPC companies, and energy storage system integrators.

Typical applications include:

• Residential solar energy storage systems
• Home backup power solutions
• Solar self-consumption projects
• Renewable energy integration
• Small-scale energy storage applications

As an experienced energy storage solution provider, VoltCrave Power delivers reliable inverter products, customized solutions, and professional support for global B2B partners.

02 · Key Features

High Output Capability for Residential Energy Storage

The 12kw all in one hybrid inverter provides powerful energy conversion performance with a 12KW rated output. It is designed for residential applications requiring higher power capacity, stable electricity supply, and efficient energy management.

Key features:

• 12KW rated output power
• 12KVA / 12KW output capability
• 220/230/240VAC output voltage
• Pure sine wave output
• 50/60Hz frequency compatibility
• 3:1 peak factor capability

The high output capability allows this residential hybrid inverter to support multiple household loads while maintaining stable power performance during daily operation and backup scenarios.

Efficient MPPT Solar Charging Technology

The integrated MPPT solar charging system improves photovoltaic energy utilization by optimizing solar input performance. This design helps residential users maximize renewable energy usage and reduce dependence on traditional electricity sources.

Key features:

• MPPT charging technology
• 7500W maximum PV input power
• 60-500VDC MPPT voltage range
• 500VDC maximum PV open circuit voltage
• 22.5A × 2 maximum PV input current
• 160A maximum PV charging current

The solar charging capability makes the inverter suitable for residential solar storage projects requiring efficient energy conversion and flexible system configuration.

Flexible Battery Energy Storage Integration

The inverter supports 40-60VDC battery systems and provides high charging capability for residential energy storage applications.

Key features:

• 40-60VDC battery voltage range
• 220A maximum charging current
• 54VDC floating charging voltage
• 63VDC overcharge protection voltage
• CC/CV charging mode

The flexible battery compatibility allows installers and system integrators to select suitable battery configurations according to different project requirements.

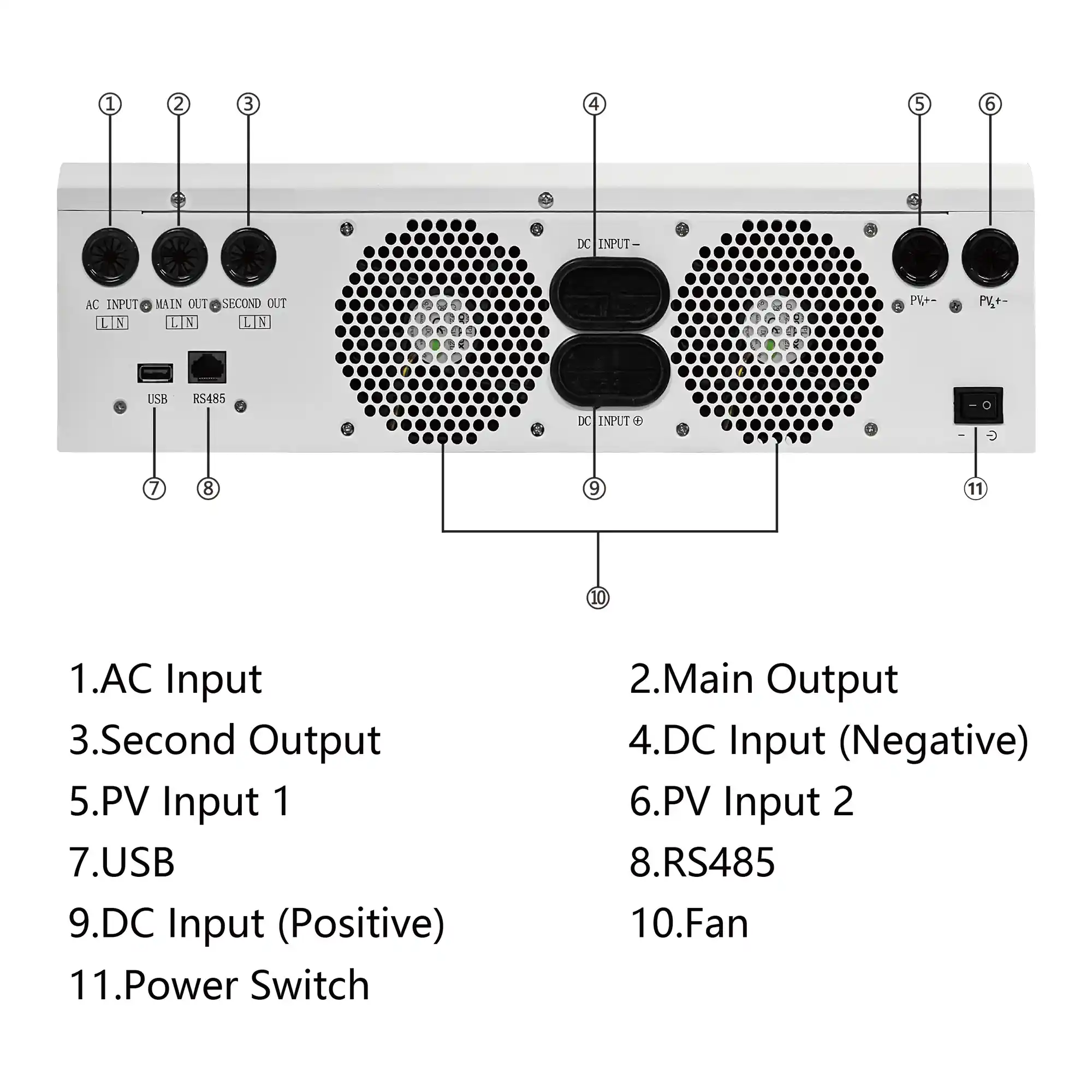

Multiple Communication Interfaces

The 12kw all in one hybrid inverter provides multiple communication options for easier monitoring and system integration.

Key features:

• RS232 communication interface
• RS485 communication interface
• Dry contact interface
• LCD display

These interfaces support communication between the inverter, battery systems, and external monitoring equipment, improving system management efficiency.

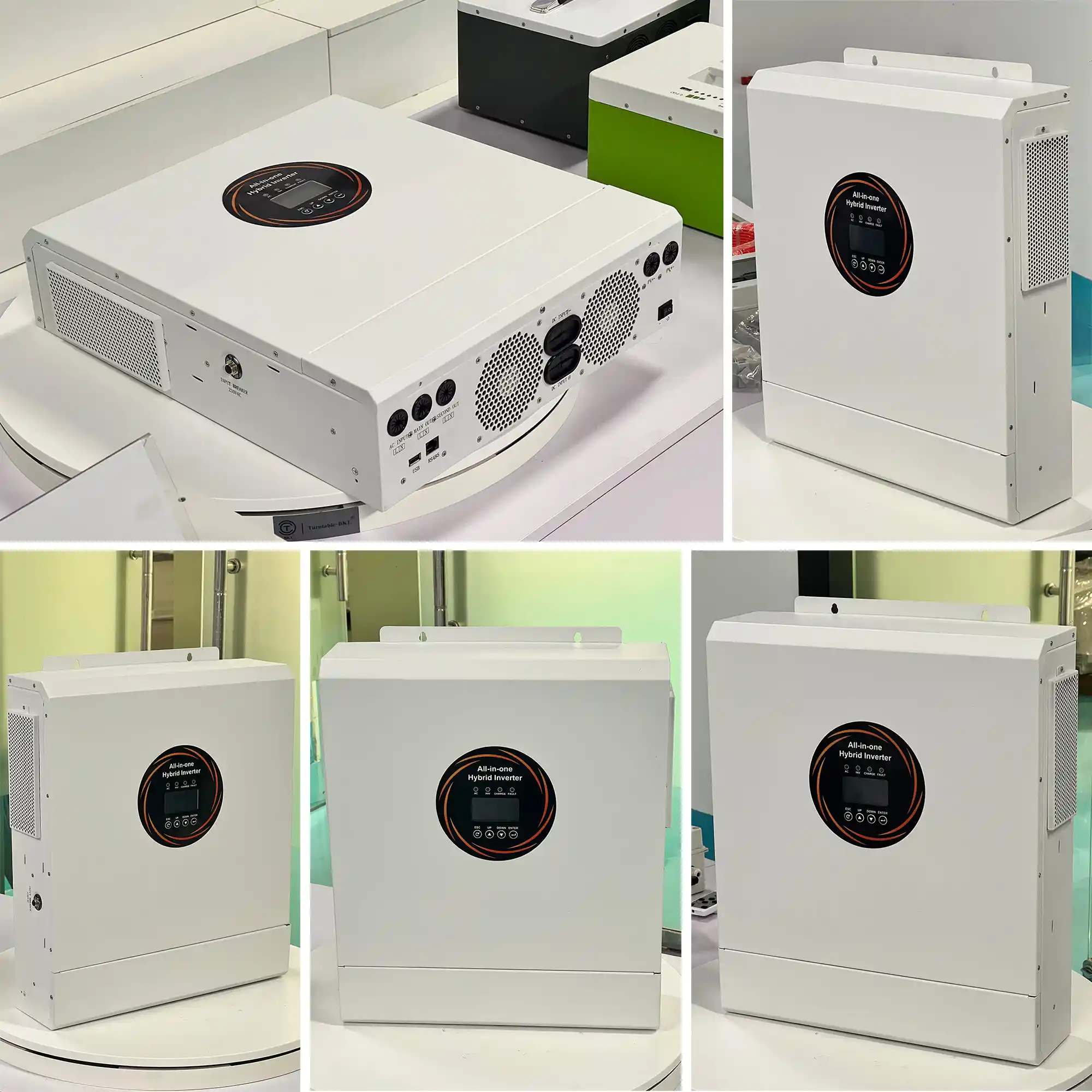

Compact All-In-One Design

The integrated structure combines multiple energy management functions into a single device, reducing installation complexity and improving system efficiency.

Key features:

• Integrated inverter design
• Compact dimension: 500×430×130mm
• Net weight: 14.5kg
• LCD operation display
• Simplified installation process

The compact structure makes transportation, installation, and maintenance easier for professional installers.

03 · BMS Protection and Battery Technology

Battery Management System Protection

The 12kw all in one hybrid inverter supports communication with compatible battery management systems through RS232 and RS485 interfaces. The BMS communication function allows the inverter and battery system to exchange operating information and improve system coordination.

Battery Management System Protection depends on the connected battery configuration. When used with compatible battery systems, available protection functions may include:

• Overcharge protection
• Over-discharge protection
• Over-current protection
• Short circuit protection
• Temperature protection
• Voltage protection

These protection functions help improve the safety and reliability of the energy storage system during charging and discharging operations.

Battery Cell Quality and Reliability

The inverter is designed for integration with residential energy storage battery systems. Battery chemistry, cell selection, and battery performance depend on the connected battery solution.

VoltCrave Power focuses on reliable energy storage solutions through controlled manufacturing processes, quality inspection procedures, and system compatibility testing.

Battery system reliability is supported by:

• Suitable battery chemistry selection
• Reliable cell integration
• Manufacturing quality control
• Product performance testing
• Long-term system stability evaluation

Through professional production management and testing processes, VoltCrave Power helps customers build dependable residential energy storage systems.

04 · Simple Operation and Accessories

Easy Installation and System Operation

The 12kw all in one hybrid inverter is designed for convenient installation and simple operation. The integrated structure reduces the number of external components required and improves installation efficiency.

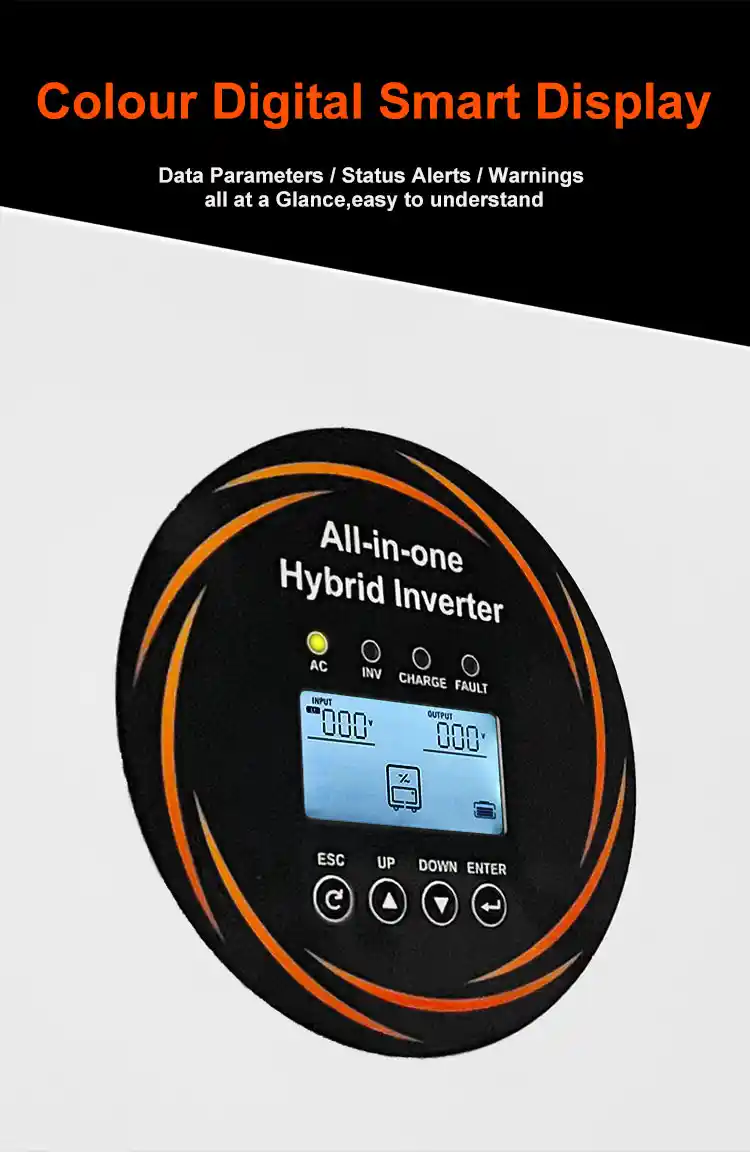

The LCD display provides users and installers with clear system information, helping monitor operating conditions and improve maintenance efficiency.

Main operation advantages:

• Plug and play installation
• LCD display monitoring
• Simple charging operation
• Flexible solar connection
• Compatible battery integration

Packaging and B2B Customization Services

The product packaging is designed for professional transportation and project delivery. Accessories and configuration can be adjusted according to customer requirements.

For distributors, installers, and system integrators, VoltCrave Power provides:

• OEM packaging available
• Customized solutions available
• Product configuration support
• Project-based cooperation

These services help partners develop customized residential energy storage solutions for different markets.

05 · Why Choose VoltCrave Power

Professional Manufacturer Experience

Choosing the right hybrid inverter manufacturer is essential for reliable energy storage projects. VoltCrave Power focuses on energy storage product development and manufacturing, providing professional solutions for global customers.

With experience serving distributors, installers, and EPC companies, VoltCrave Power understands the requirements of different markets and application scenarios.

Strict Quality Control and Testing

Product reliability depends on consistent manufacturing processes and effective quality management.

VoltCrave Power focuses on:

• Production process control
• Product inspection procedures
• System compatibility testing
• Quality consistency management

These processes help ensure stable production and reliable energy storage solutions for customers.

OEM and ODM Service Capability

Different markets require different product configurations and branding solutions. VoltCrave Power provides OEM and ODM services to support customer-specific requirements.

Services include:

• OEM packaging solutions
• Customized product requirements
• Project-based technical support
• Flexible cooperation models

This allows distributors and partners to develop products suitable for their local markets.

Global Supply Capability and Professional Support

As a professional hybrid inverter manufacturer, VoltCrave Power provides stable production capability and reliable supply support for international customers.

Compared with suppliers that may provide:

• Inconsistent quality
• Limited customization
• Weak after-sales support

VoltCrave Power delivers:

• Stable production
• Reliable energy storage solutions
• Professional technical support

Through continuous improvement in manufacturing and customer service, VoltCrave Power supports global partners with dependable residential energy storage products.
