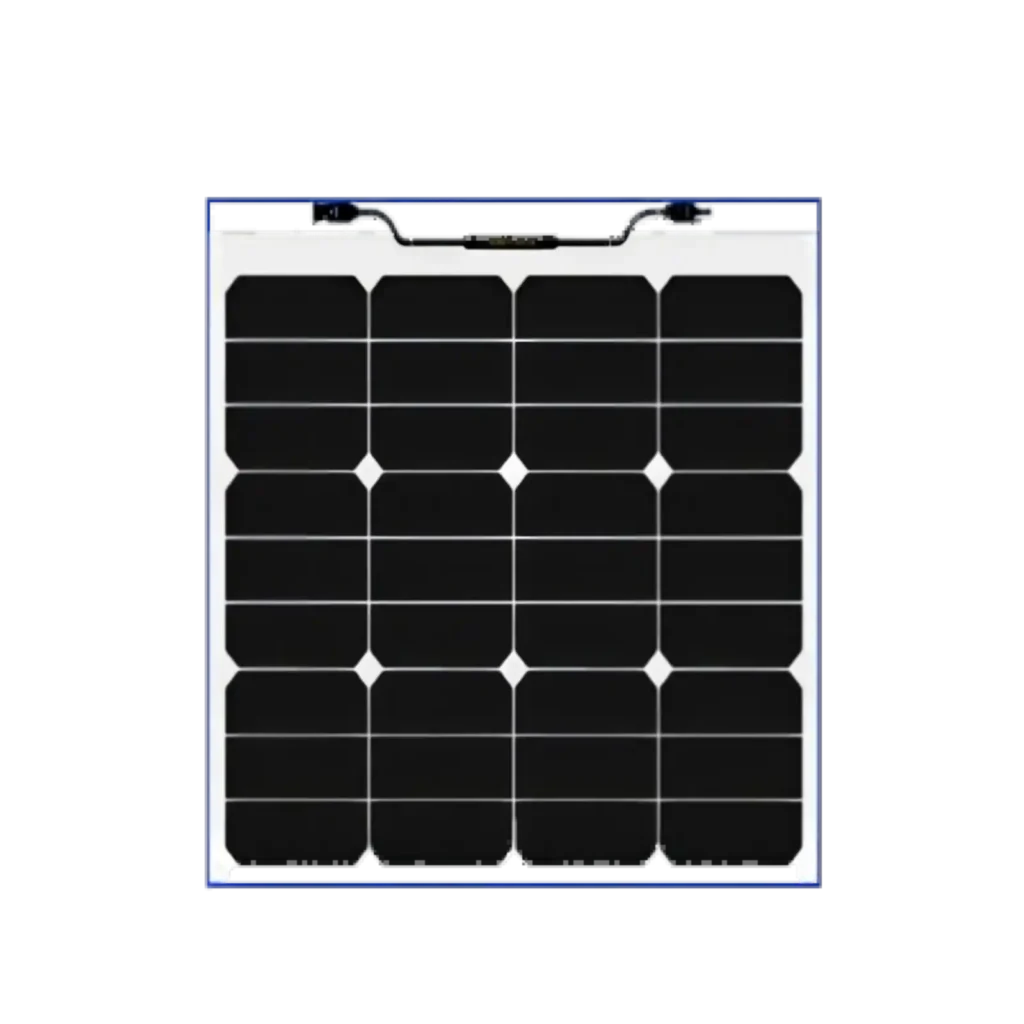

40W semi-flexible solar panel with 19.8V output, 22.5% efficiency, 36 cells, MC4 connectors, IP65 junction box, and a slim 2.5mm profile.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
The VoltCrave Power semi-flexible solar panel delivers 40W rated power with a 19.8V voltage and 2.02A current. Its defined electrical specifications make it easy to evaluate for compatible solar and energy storage system integration.
Built with 36 solar cells, the panel provides 22.5% cell efficiency. The compact cell arrangement supports efficient solar energy collection within a space-saving panel format.
Measuring 535 × 435 × 2.5 mm, the panel combines a compact footprint with a slim semi-flexible structure. Its 2.5mm thickness is suitable for applications where installation space is limited.
The complete solar panel weighs only 1 kg. The lightweight construction simplifies handling and helps reduce additional installation weight during B2B system integration.
The panel features MC4 connectors and an IP65-rated junction box. These components provide a practical connection configuration for solar power projects while supporting reliable electrical integration.
| Parameter | Specification |
|---|---|
| Product Type | Semi-Flexible Solar Panel |
| Rated Power | 40W |
| Voltage | 19.8V |
| Current | 2.02A |
| Solar Cell Efficiency | 22.5% |
| Cell Quantity | 36 Cells |
| Dimensions | 535 × 435 × 2.5 mm |
| Connector | MC4 |
| Junction Box Rating | IP65 |
| Weight | 1 kg |
No download files have been uploaded yet.
