4kW–11kW hybrid solar inverter with MPPT charging, dual AC output, pure sine wave, IP54 protection and up to 98%+ DC/AC efficiency.
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

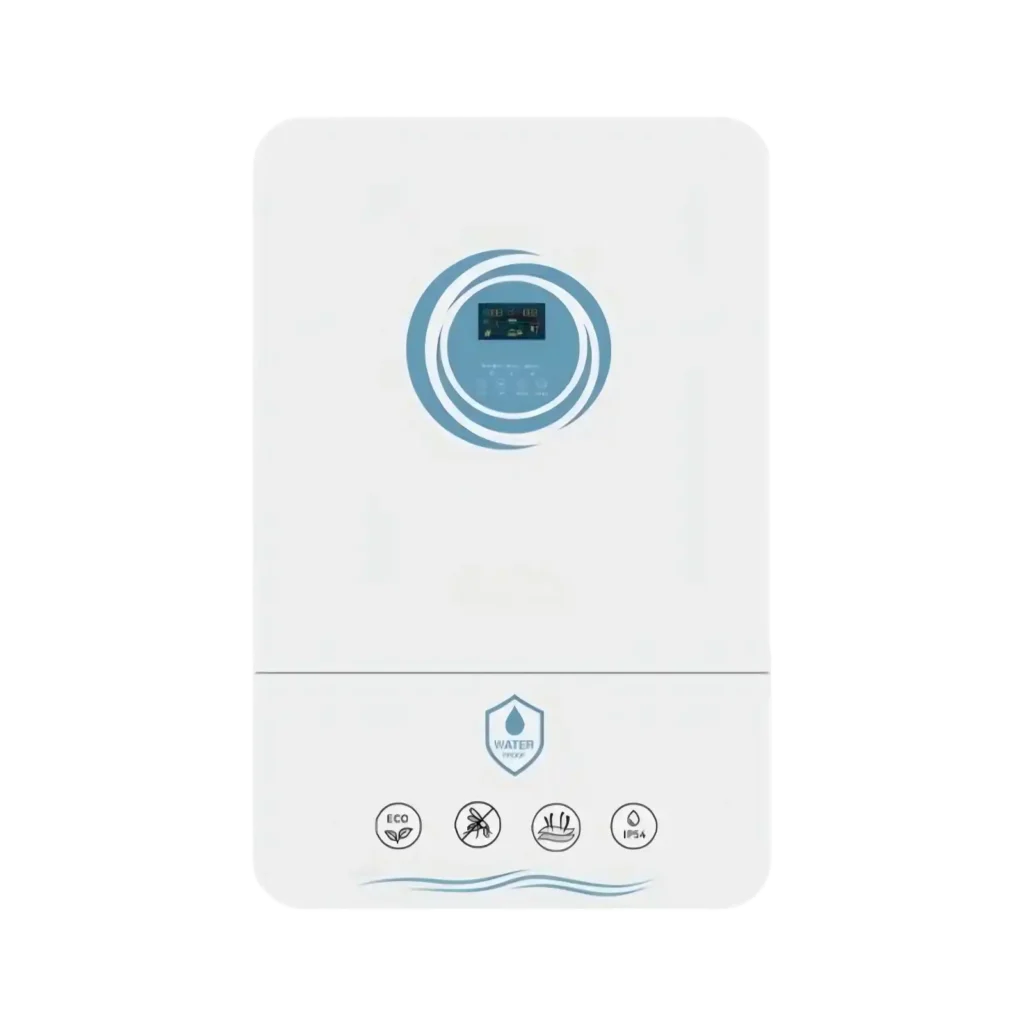

The hybrid solar inverter series provides 4000W, 6200W and 11000W rated power options. Peak output reaches 8000VA, 12400VA and 22000VA respectively, while all three models provide pure sine wave AC output at 220/230/240VAC.
The 4kW model operates with a 24VDC battery system, while the 6.2kW and 11kW models use 48VDC.
Maximum PV input ranges from 6500W on the 4kW model to 8500W on the 6.2kW model and 2 × 7500W on the 11kW version. Maximum PV input voltage is 500VDC across the series.
The 11kW model uses dual MPPT and supports up to 150A maximum PV charging current, while the 4kW and 6.2kW models support 120A.
Dual AC output is provided for flexible load connection, with specified dual output power of 4500W, 6500W and 15000W depending on the model.
Adjustable transfer time is specified at 10ms for computer equipment and 20ms for household equipment.
The series has an IP54 protection rating and operates at less than 50dB noise. Maximum DC/AC conversion efficiency is specified at greater than 98%.

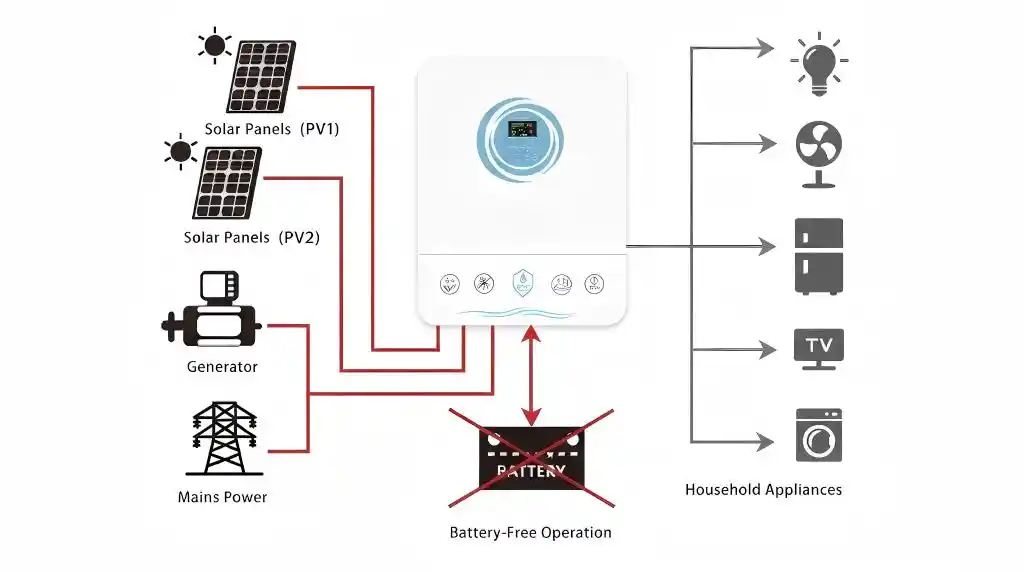

The original product page also specifies built-in on/off-grid functionality and grid-assisted PV operation.
LCD monitoring displays operating mode, load, input and output information. RS232, lithium battery BMS communication card and WiFi expansion options are listed in the specifications.
VoltCrave Power offers this hybrid solar inverter series for B2B solar and energy storage projects requiring multiple power options, MPPT charging, dual AC output and flexible system integration.
| Specification | TD4024SMH | TD6248SMH | TD11048SMH |
|---|---|---|---|
| Rated Power | 4000W | 6200W | 11000W |
| Battery Rated Voltage | 24VDC | 48VDC | 48VDC |
| AC Output Voltage | 220 / 230 / 240VAC ±5% | 220 / 230 / 240VAC ±5% | 220 / 230 / 240VAC ±5% |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Peak Power | 8000VA | 12400VA | 22000VA |
| Dual Output Power | 4500W | 6500W | 15000W |
| Max. PV Input Power | 6500W | 8500W | 2 × 7500W |
| PV Input Voltage Range | 60–500VDC | 60–500VDC | 90–500VDC |
| Max. PV Input Voltage | 500VDC | 500VDC | 500VDC |
| Max. PV Input Current | 27A | 27A | 27A / 27A |
| PV Charging Method | MPPT | MPPT | 2 × MPPT |
| Max. PV Charge Current | 120A | 120A | 150A |
| Max. DC/AC Efficiency | >98% | >98% | >98% |
| Transfer Time | 10ms Computer / 20ms Household | 10ms Computer / 20ms Household | 10ms Computer / 20ms Household |
| Parallel Operation | Not Supported | Supported | Supported |
| Operating Temperature | 0°C–40°C | 0°C–40°C | 0°C–40°C |
| Noise | <50dB | <50dB | <50dB |
| Protection Level | IP54 | IP54 | IP54 |
