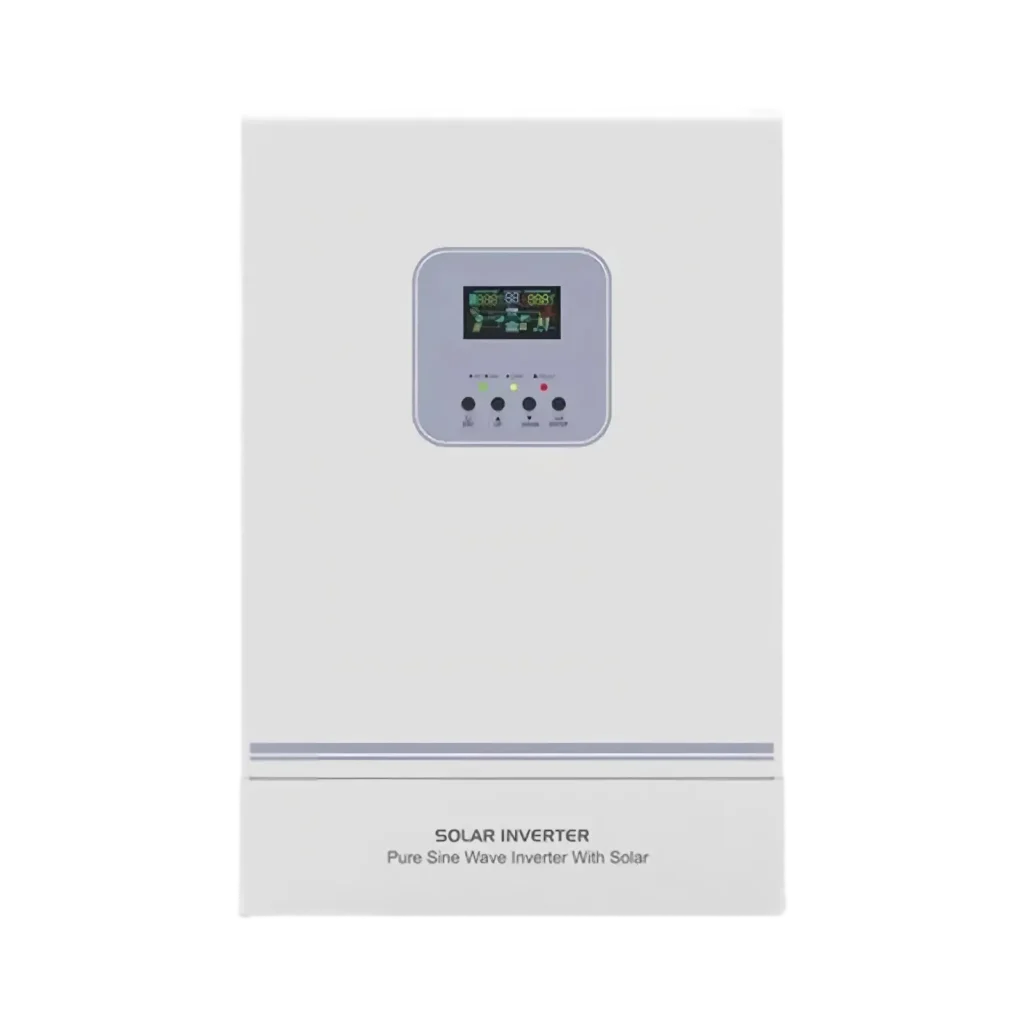

4kW and 6.2kW hybrid solar inverter with 24V/48V battery support, MPPT charging, dual output, pure sine wave, BMS communication, and WiFi option.
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
VoltCrave Power delivers a seamless solar energy experience with a 4kW/6.2kW hybrid inverter at the heart of the system. Intelligent connectivity integrates PV, grid, battery, and loads for efficient everyday energy management.

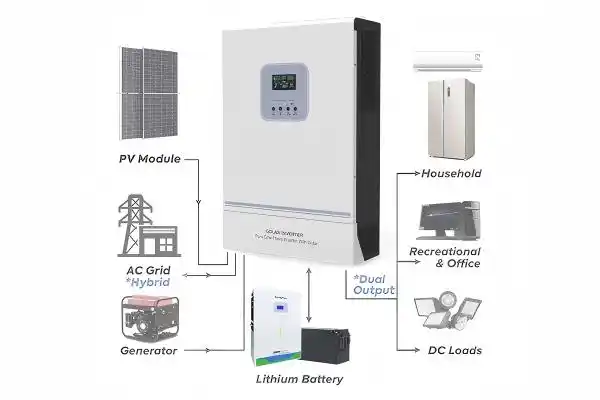

Reliable solar energy systems depend on robust connections. VoltCrave Power hybrid solar inverters integrate PV, utility power, lithium batteries, and AC loads, providing flexible connectivity for residential and energy storage applications.
Different markets require different solutions. VoltCrave Power provides flexible ODM customization options to meet specific product and application requirements, supporting partners with adaptable inverter solutions for their target energy markets.

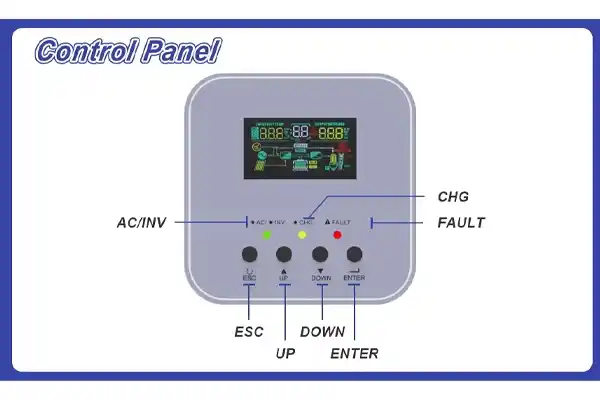

The integrated LCD control panel provides convenient access to operating mode, load, input, and output information. Users can easily monitor system performance and adjust operating parameters directly through the inverter interface.
Backed by extensive power energy manufacturing experience, VoltCrave Power provides OEM/ODM customization, technical support, and professional customer service, helping global B2B partners develop reliable energy solutions for diverse market requirements.
VoltCrave Power supports long-term B2B cooperation with product customization, technical guidance, flexible product options, and professional service, helping distributors and energy solution partners efficiently address different project and market requirements.
Quality and reliability remain essential for professional energy applications. VoltCrave Power focuses on controlled manufacturing and quality assurance, providing dependable inverter solutions designed to support international B2B markets and diverse applications.
| Parameter | 4kW Model | 6.2kW Model |
|---|---|---|
| Rated Power | 4000W | 6200W |
| Battery Rated Voltage | 24VDC | 48VDC |
| AC Input | 220/230/240VAC | 220/230/240VAC |
| Input Voltage Range | 90–280VAC ±3V Normal / 170–280VAC ±3V UPS | 90–280VAC ±3V Normal / 170–280VAC ±3V UPS |
| Output Voltage | 220/230/240VAC ±5% | 220/230/240VAC ±5% |
| Output Frequency | 50/60Hz ±0.1% | 50/60Hz ±0.1% |
| Output Wave | Pure Sine Wave | Pure Sine Wave |
| Dual Output Power | 4000W / 4500W | 6200W / 6500W |
| Peak Power | 8000VA | 12400VA |
| Output Current | 17.4A | 26.9A |
| Power Factor | >0.99 | >0.99 |
| Max Efficiency (DC/AC) | >98% | >98% |
| PV Charging Method | MPPT | MPPT |
| Max PV Input Power | 6500W | 8500W |
| PV Input Voltage Range | 60–500VDC | 60–500VDC |
| Max PV Input Voltage | 500VDC | 500VDC |
| Max PV Input Current | 27A | 27A |
| Max PV Charge Current | 120A | 120A |
| Max AC Charge Current | 100A | 100A |
| Max Charge Current | 120A | 120A |
| Communication | RS232 / BMS / WiFi | RS232 / BMS / WiFi |
| Operating Temperature | 0°C–40°C | 0°C–40°C |
| Noise | <50dB | <50dB |
| Dimensions | 495 × 312 × 125 mm | 495 × 312 × 125 mm |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
