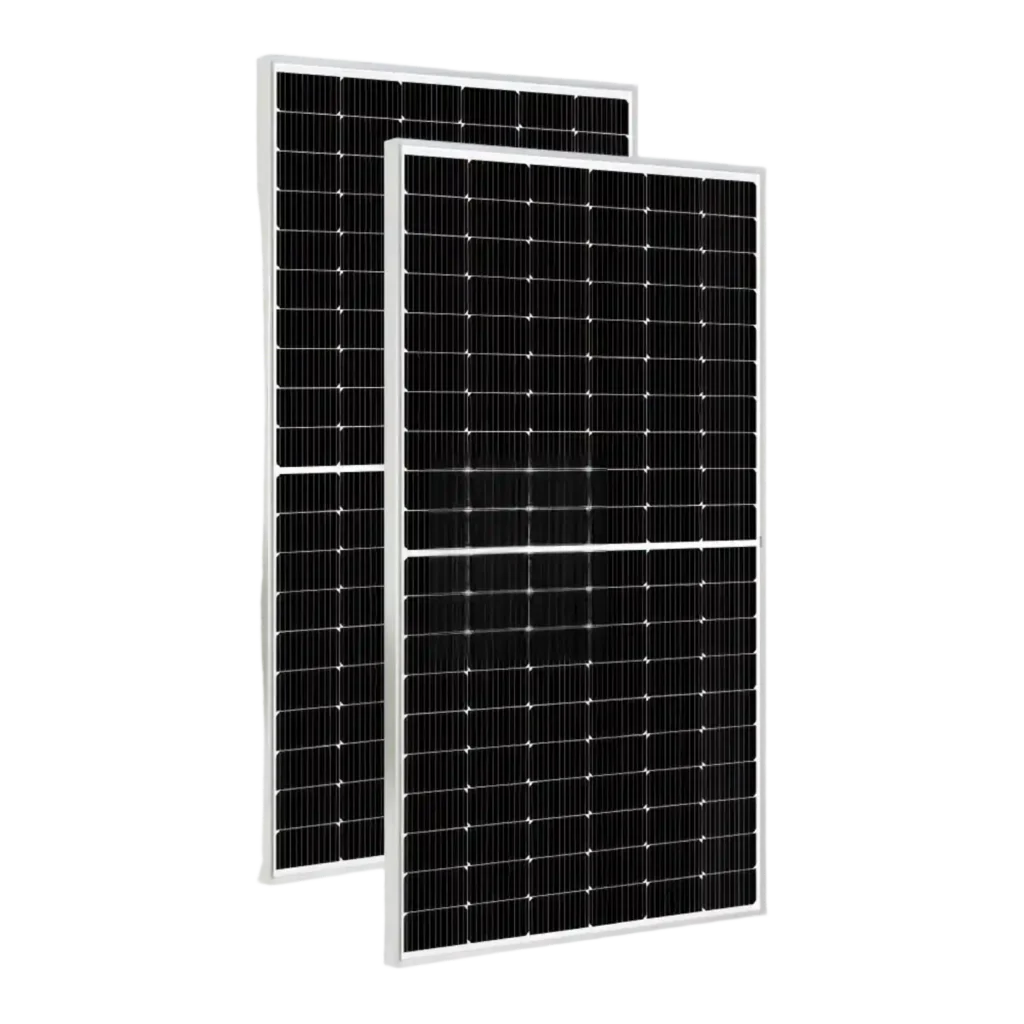

550W 144-Cell Monocrystalline Solar Panel

550W Maximum Power for Solar Energy Systems

This monocrystalline solar panel provides a maximum power output of 550W, giving commercial and utility solar projects a high-output module option for system planning. The panel combines its 550W maximum power with a module efficiency of 21.3%.

For B2B buyers, these two specifications provide clear reference points when comparing module output, installation requirements and the number of panels required for a planned solar generation system.

144-Cell Monocrystalline Solar Panel Configuration

The panel uses a 144-cell configuration and measures 2278 × 1134 × 30 mm. The defined cell configuration and module dimensions allow system integrators and project buyers to evaluate installation layouts before selecting modules for a project.

Its physical specifications are particularly relevant when calculating available mounting space, module quantities, array layouts and transportation requirements.

21.3% Module Efficiency

Module efficiency is rated at 21.3%, providing an important specification for projects where available installation area and total system output need to be considered together.

For commercial solar and energy storage projects, efficiency can be evaluated alongside maximum power, panel dimensions and system design requirements rather than as an isolated specification.

41.97V Vmp and 13.11A Imp

At maximum power, the panel operates at a maximum power voltage (Vmp) of 41.97V and maximum power current (Imp) of 13.11A. The specified open-circuit voltage (Voc) is 49.95V.

These electrical parameters provide system designers with essential information when evaluating compatibility with inverters, energy storage equipment and other electrical components. Final system configuration should always be based on the electrical limits of the complete installation.

2400Pa Wind Load and 5400Pa Snow Load

The module is specified for a wind load of 2400Pa and snow load of 5400Pa under the stated installation method. These mechanical load specifications are relevant for projects where environmental conditions form part of the module selection process.

For B2B project evaluation, wind and snow load requirements should be considered together with mounting design, installation conditions and local project requirements.

25-Year Warranty and Listed Certifications

The source product specifications state a 25-year warranty and list IEC, CE, UL, CEC and CSA certifications.

Certification requirements vary between markets and projects, so professional buyers should verify the applicable certification documentation and specific compliance requirements before procurement.

550W Solar Panel for Commercial and Energy Storage Projects

With 550W maximum power, 21.3% module efficiency, 144 cells, 41.97V Vmp and 13.11A Imp, the panel provides clearly defined specifications for commercial solar generation and compatible energy storage projects.

VoltCrave Power supplies solar products for B2B requirements, including distributors, system integrators, energy storage companies and project buyers. Technical specifications can be evalu
