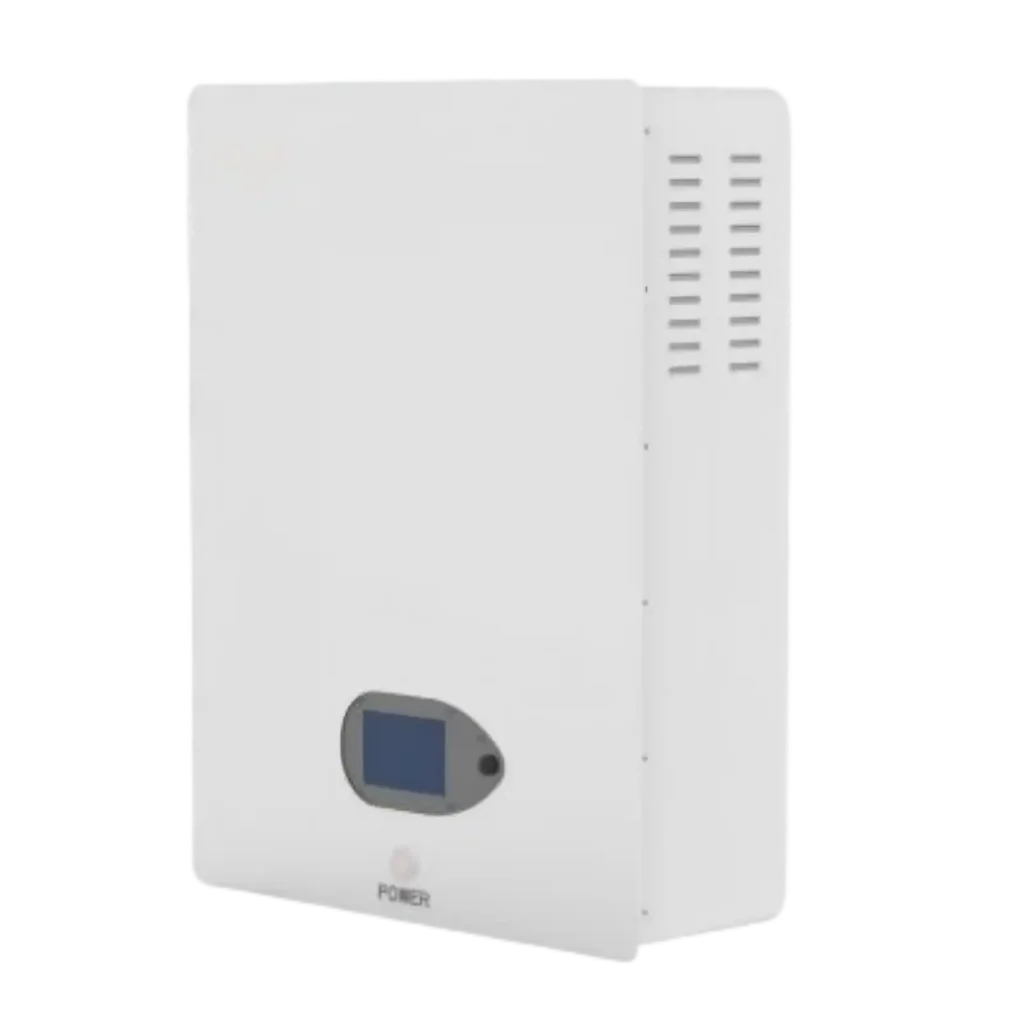

5KW wall-mounted energy storage system with 5.12KWh 51.2V 100Ah LiFePO4 battery, hybrid inverter, 6000+ cycles and solar charging.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

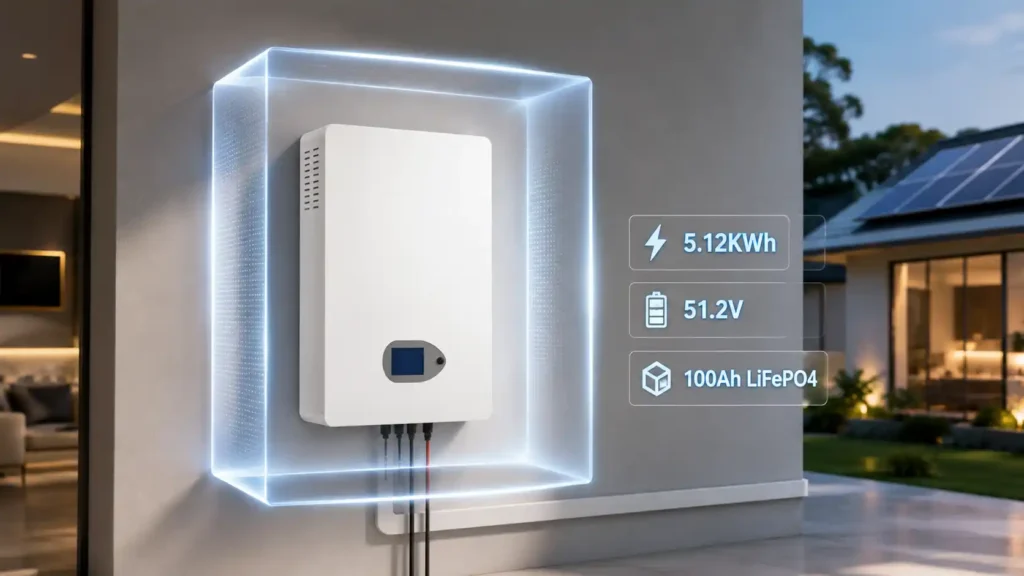

The system combines a 51.2V 100Ah LiFePO4 battery with 5.12KWh of nominal energy capacity. It provides a compact wall-mounted storage solution for residential solar and backup-power applications.
The integrated hybrid inverter provides up to 5KW AC output with a 210V–230V, 50Hz output range. It integrates battery storage and power conversion into one residential energy solution.

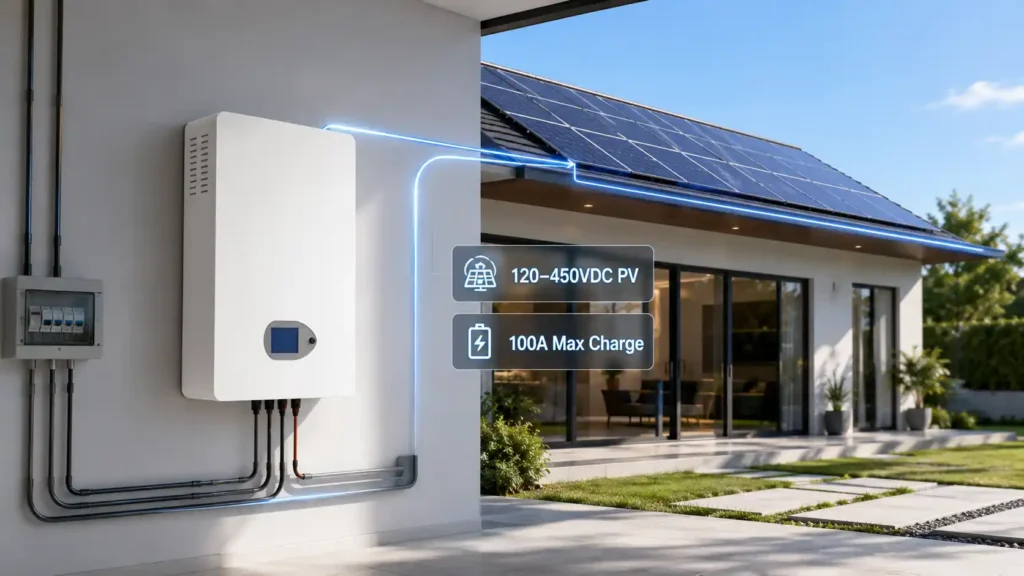

The system supports a 120VDC–450VDC PV MPPT voltage range and up to 100A charging current. Solar energy can charge the battery during daylight hours for later household use.

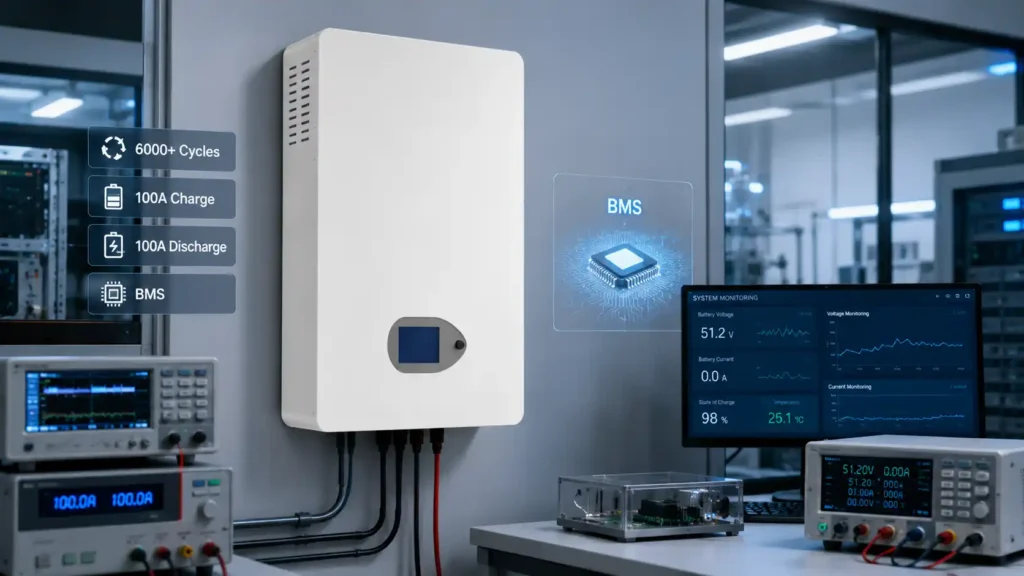

The LiFePO4 battery is rated for more than 6000 cycles and is supported by a built-in BMS. The system also provides up to 100A charge and 100A discharge current.
During a utility power interruption, the inverter can automatically switch to stored battery energy to continue supplying connected household loads. This supports residential emergency and backup-power applications.

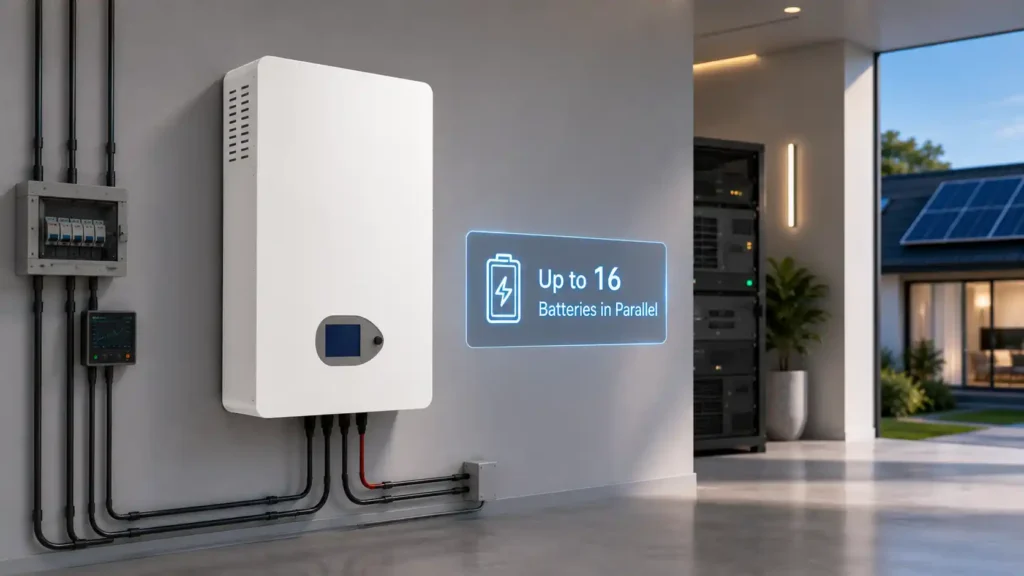

Up to 16 storage batteries can be connected in parallel to expand system capacity. This scalable architecture allows the storage configuration to adapt to different household energy requirements.
An intelligent WiFi module enables monitoring of solar generation and battery operating status. This provides convenient visibility into residential energy generation and storage.
VoltCrave Power supports customized configurations for residential energy-storage projects. System specifications and configurations can be adapted according to customer requirements.
| Parameter | Specification |
|---|---|
| System Type | Wall-Mounted Energy Storage System |
| Inverter Type | 5KW Hybrid Inverter |
| AC Output Power | 5KW |
| AC Output Voltage | 210V–230V AC |
| Output Frequency | 50Hz |
| PV MPPT Voltage Range | 120VDC–450VDC |
| Battery Type | LiFePO4 |
| Nominal Battery Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Battery Energy | 5.12KWh |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Charge Cut-Off Voltage | 58.4V |
| Discharge Cut-Off Voltage | 40V |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | 0°C to 45°C |
| Cycle Life | 6000+ Cycles |
| Parallel Expansion | Up to 16 Batteries |
| Battery Management | Built-In BMS |
| Monitoring | WiFi Module |
| Warranty | 5 Years |
| Customization | System Configuration and Specifications According to Customer Requirements |
