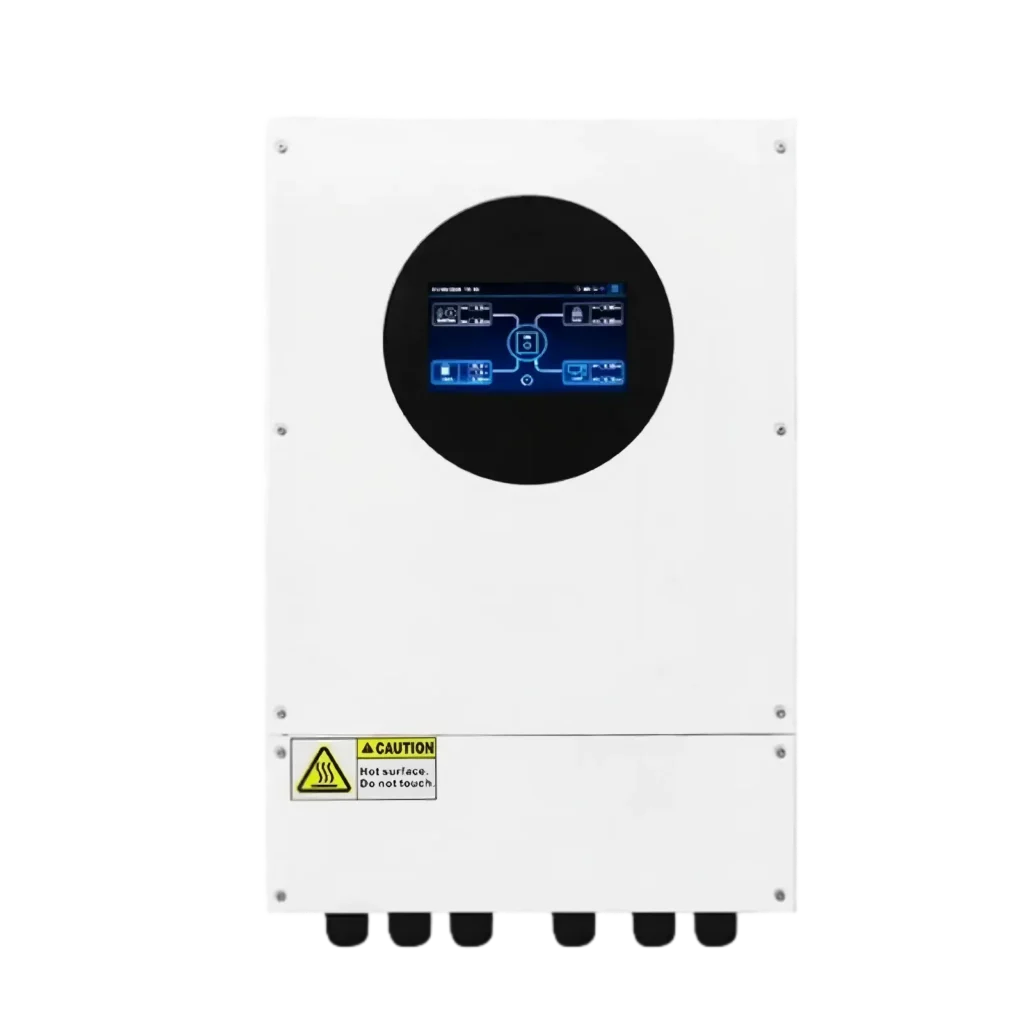

6.6kW–10.6kW 48V hybrid solar inverter with dual MPPT, IP66 protection, pure sine wave output and parallel operation up to 9 units.
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
The series provides three rated output options: 6600W, 8600W and 10600W. Maximum PV input power ranges from 12000W to 18000W, while all models operate with a nominal 48VDC battery system and provide 220/230/240VAC output.
This range allows system integrators and B2B buyers to select inverter capacity according to different solar and energy storage system requirements.
Two built-in MPPT trackers provide a 120–450VDC MPPT operating range. Maximum MPPT input current is 21A for the 6.6kW model and 27A for the 8.6kW and 10.6kW models. Maximum DC input voltage is 500VDC.
The maximum PV input capacities are 12kW, 16kW and 18kW respectively, providing clearly defined PV sizing options across the three models.

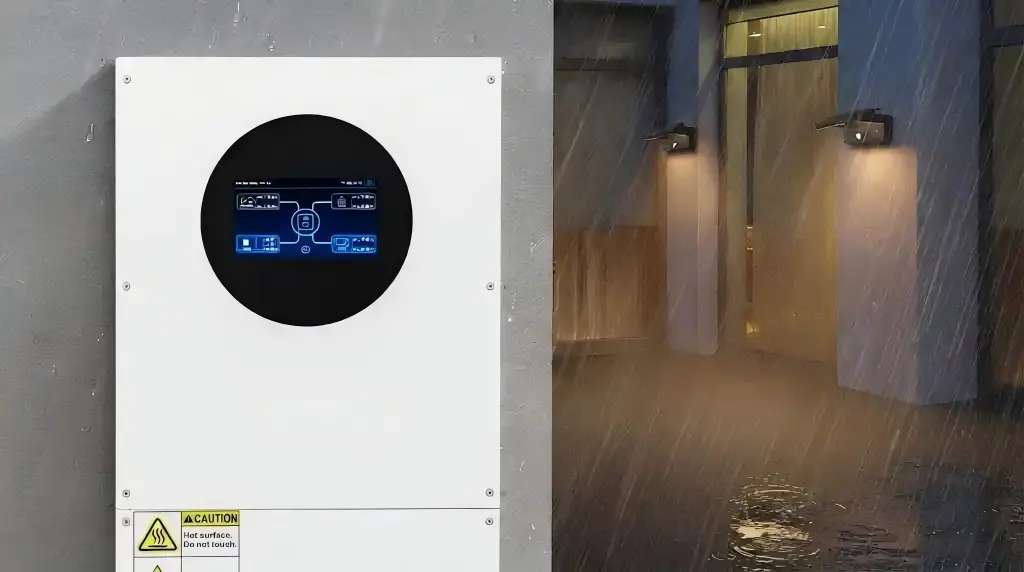

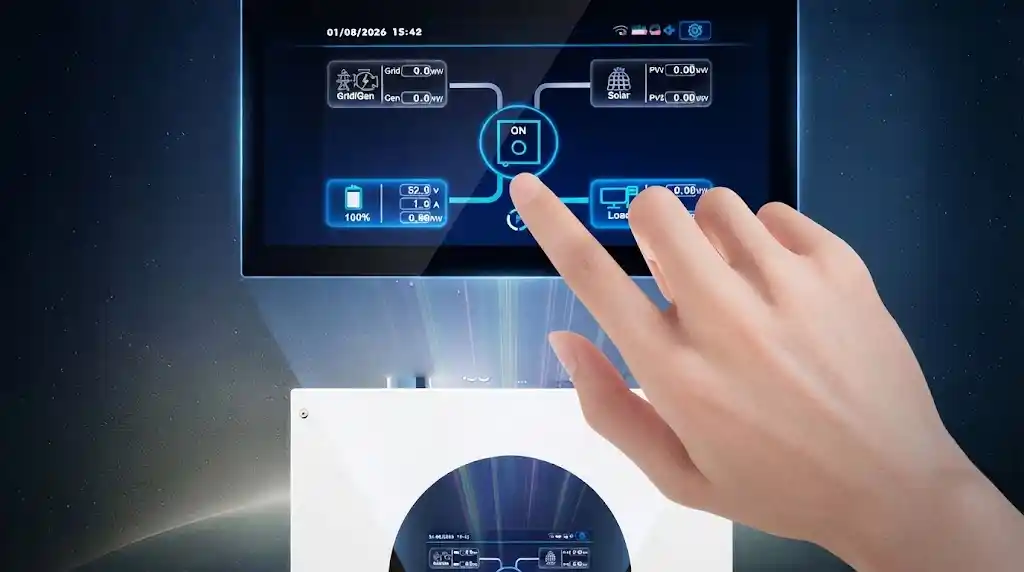

IP66 protection supports installation in demanding environments, while the integrated LCD capacitive touch screen provides access to operating information including current, voltage, power, energy data and fault alarms.
The combination provides practical system monitoring while maintaining a protected inverter enclosure.
The inverter supports programmable supply priority for PV, battery or grid. Dual AC inputs allow two independent AC power sources to be connected with automatic switching, while battery storage can also be combined with on-grid and off-grid operation.
Pure sine wave battery output and more than 97% maximum DC/AC conversion efficiency provide additional specifications for system evaluation.

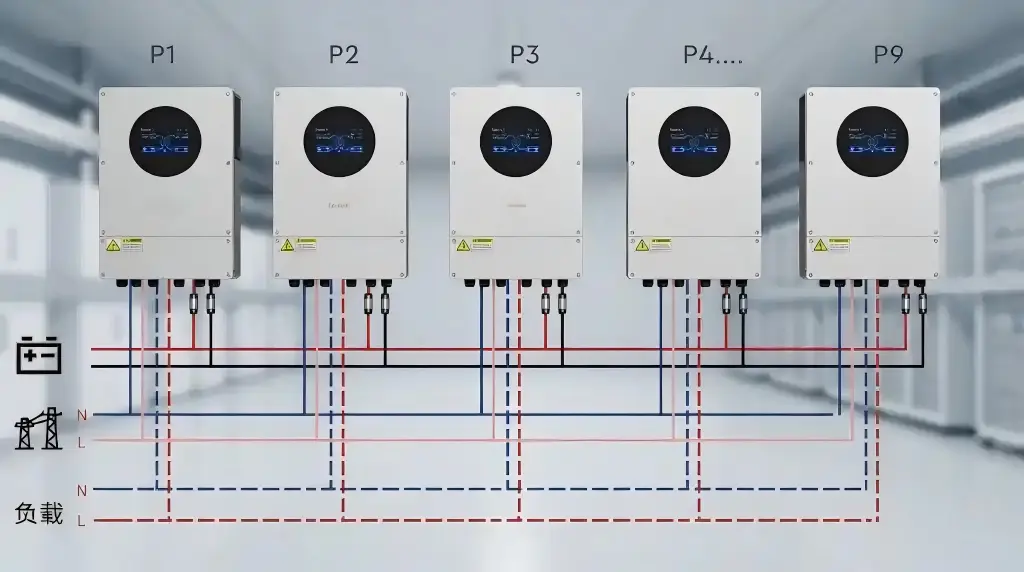

Parallel operation supports system expansion up to nine units. RS-232, RS485 and WiFi communication interfaces are also specified for system communication and management.
VoltCrave Power offers this 6.6kW–10.6kW hybrid solar inverter series for B2B solar and energy storage projects where flexible power capacity, dual MPPT, 48V battery integration and scalable parallel operation are required.
| Specification | XA6648 | XA8648 | XA10648 |
|---|---|---|---|
| Rated Output Power | 6600W | 8600W | 10600W |
| Maximum PV Input Power | 12000W | 16000W | 18000W |
| Maximum Charging Power | 6600W | 8600W | 10600W |
| Phase | 1-Phase In / 1-Phase Out | 1-Phase In / 1-Phase Out | 1-Phase In / 1-Phase Out |
| Nominal Output Voltage | 220 / 230 / 240 VAC | 220 / 230 / 240 VAC | 220 / 230 / 240 VAC |
| Maximum DC Voltage | 500VDC | 500VDC | 500VDC |
| MPPT Voltage Range | 120–450VDC | 120–450VDC | 120–450VDC |
| MPPT Trackers / Max. Input Current | 2 / 21A | 2 / 27A | 2 / 27A |
| Maximum Conversion Efficiency | >97% | >97% | >97% |
| Battery Type | Lead-Acid / Lithium-Ion | Lead-Acid / Lithium-Ion | Lead-Acid / Lithium-Ion |
| Nominal Battery Voltage | 48VDC | 48VDC | 48VDC |
| Battery Voltage Range | 40–60VDC | 40–60VDC | 40–60VDC |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Protection Rating | IP66 | IP66 | IP66 |
| Parallel Operation | Up to 9 Units | Up to 9 Units | Up to 9 Units |
| Communication | RS-232 / RS485 / WiFi | RS-232 / RS485 / WiFi | RS-232 / RS485 / WiFi |
| Dimensions (D × W × H) | 192 × 418 × 633 mm | 192 × 418 × 633 mm | 192 × 418 × 633 mm |
| Net Weight | 23.5 kg | 28 kg | 29 kg |
