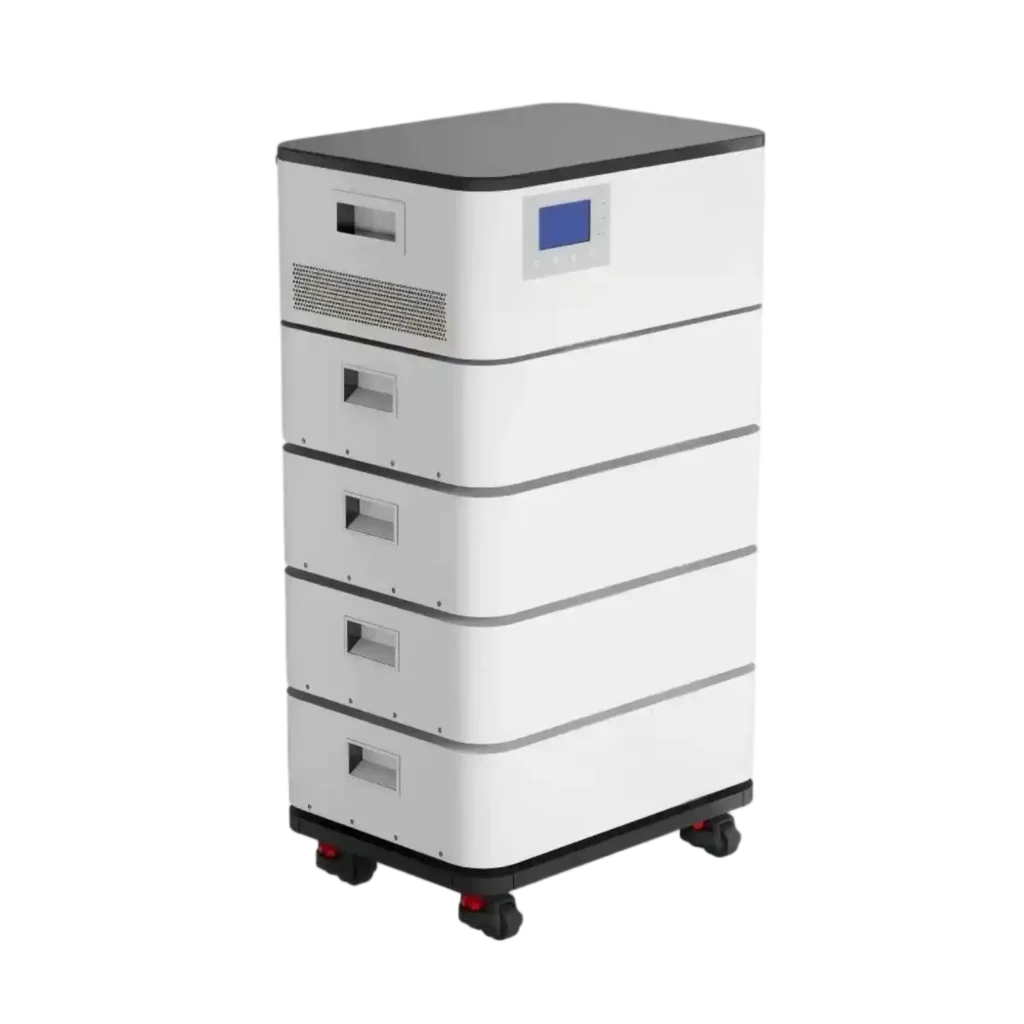

6kW stackable all-in-one solar system with 10.24/20.48kWh LiFePO4 storage, 51.2V battery architecture, fast switching and flexible customization.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

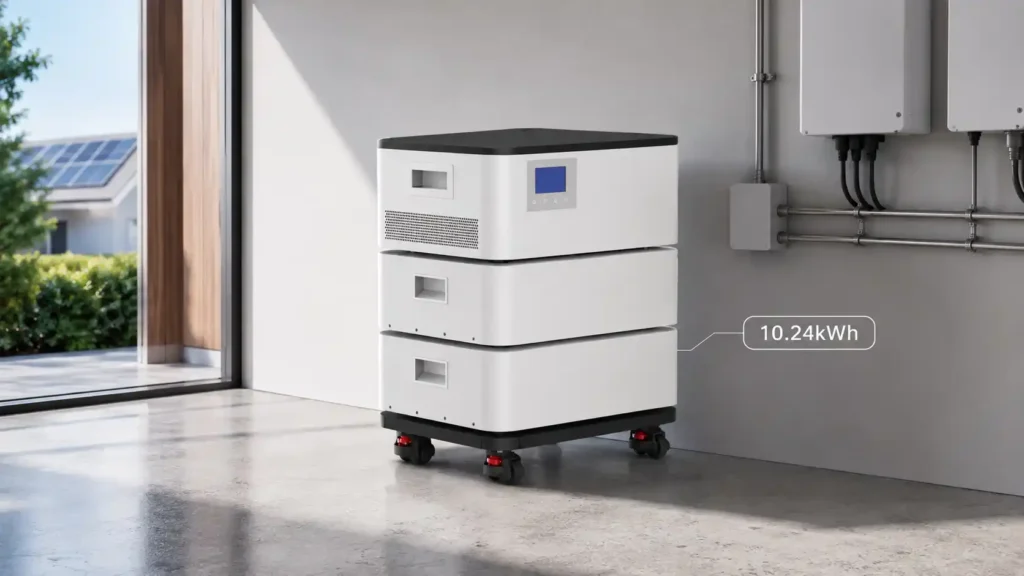

The AIO-6K10 combines 10.24kWh LiFePO4 battery storage with a compact stackable structure for residential energy storage applications. Its two-battery configuration helps save space while keeping the system organized.

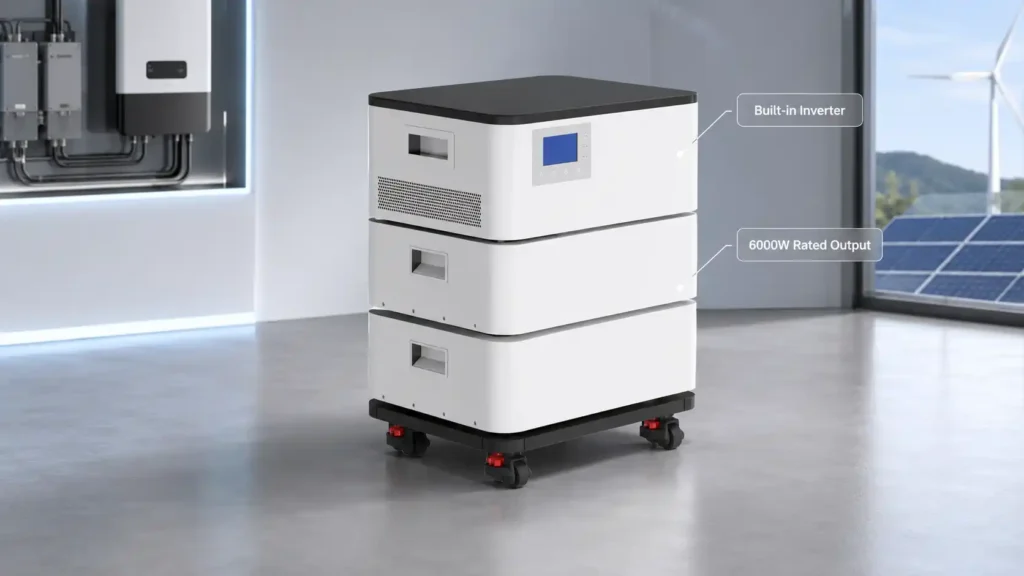

This system integrates the inverter and controller in one unit, reducing installation complexity and simplifying system deployment. The rated output power is 6000W, with a maximum output power of 6.6kW.

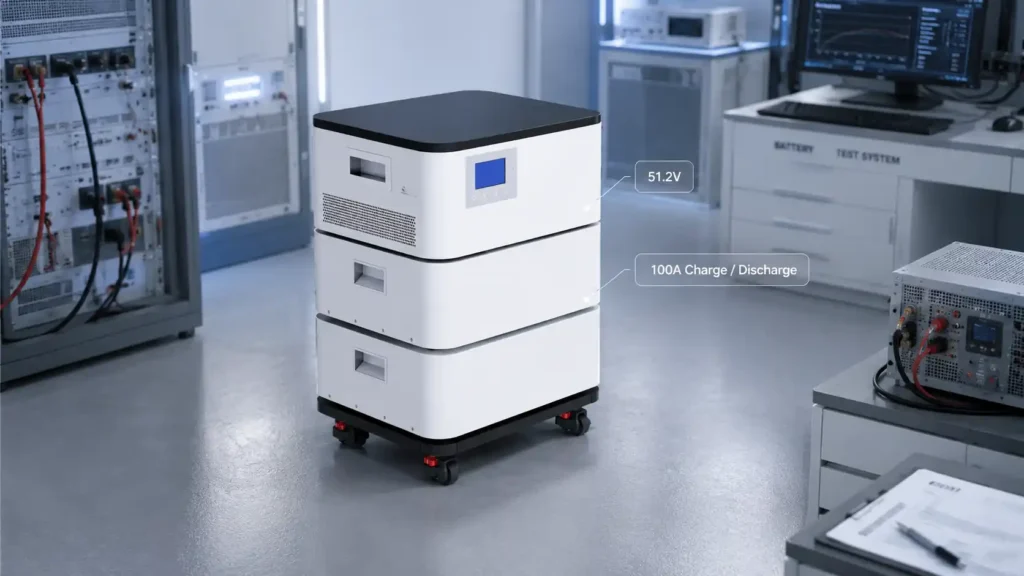

The battery system uses LFP (LiFePO4) chemistry with a 51.2V battery platform and a 42–60V voltage range. This configuration supports stable performance for home energy storage use.
The system supports a maximum charging and discharging current of 100A. This helps the unit handle daily charging and power delivery requirements efficiently.

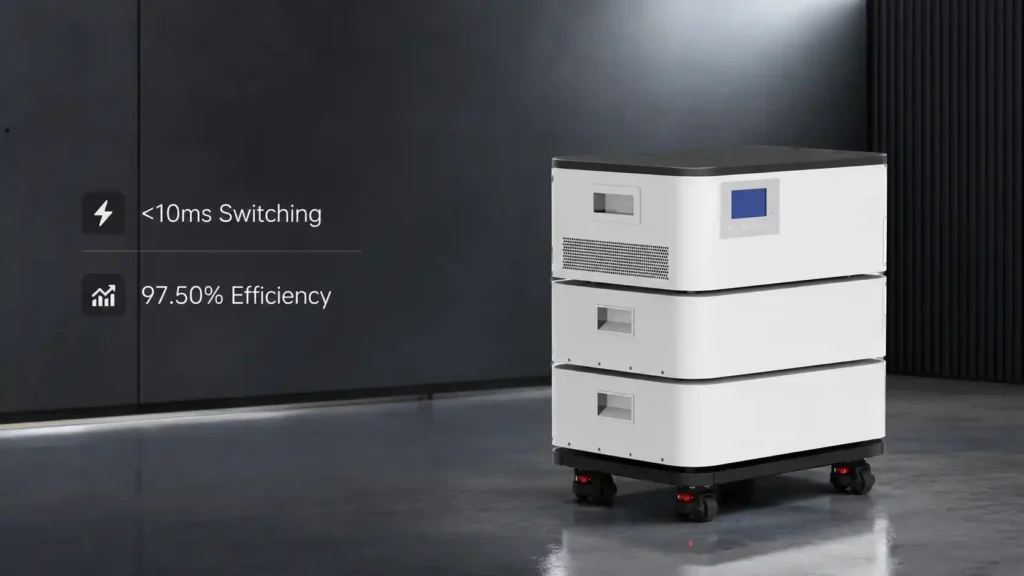

With a switching time of less than 10ms, the system is suitable for backup and continuous power support scenarios. The maximum conversion efficiency reaches 97.50% for effective energy utilization.
The unit supports L/N/PE 220V/230V 50Hz/60Hz rated output and provides up to 6.6kVA apparent output power. It also supports AC input up to 10kVA and charging pile output up to 7.4kVA.
The system supports RS485, WiFi and GPRS communication through an external communication bar. With air-cooling, IP20 protection and a compact 595 × 435 × 630mm size, it is designed for indoor residential installation.
VoltCrave Power can provide customized configurations based on customer requirements. This makes the system suitable for different home energy storage projects and market needs.
| Parameter | Specification |
|---|---|
| Models | AIO-6K10 / AIO-6K20 |
| Product Type | Stackable All-in-One Solar System |
| Battery Chemistry | LiFePO4 |
| Battery Capacity | 10.24kWh / 20.48kWh |
| Battery Voltage | 51.2V |
| Battery Voltage Range | 42–60V |
| Max. Charging / Discharging Current | 100A |
| Rated Output Power | 6000W |
| Max. Output Power | 6.6kW |
| Max. Output Apparent Power | 6.6kVA |
| Rated AC Voltage | 220V / 230V |
| Frequency | 50Hz / 60Hz |
| Switching Time | <10ms |
| Max. Conversion Efficiency | 97.5% |
| Cooling Method | Air Cooling, Adjustable Fan Speed |
| Protection Class | IP20 |
| Ambient Temperature | -25°C to +60°C |
| Maximum Altitude | 3000m |
| Communication | RS485 / WiFi / GPRS |
| Customization | Available According to Customer Requirements |
