8.6kW/11kW 48V hybrid solar inverter with dual MPPT, 500V PV input, pure sine wave output, WiFi/BMS support, and max DC/AC efficiency of 0.98.
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

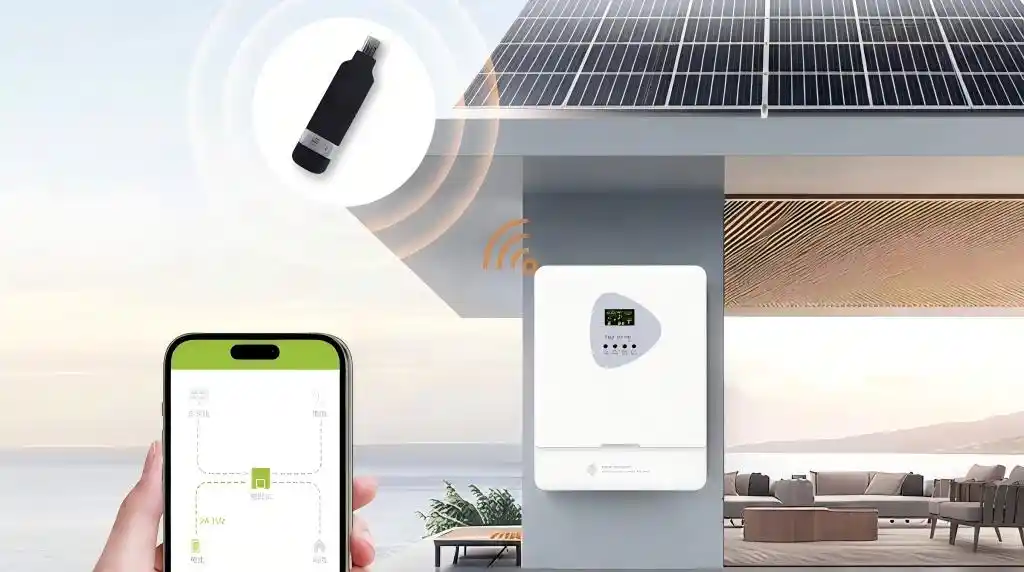

Supports lithium battery BMS communication, external WiFi connectivity, generator auto-start, real-time monitoring, and remote system management.

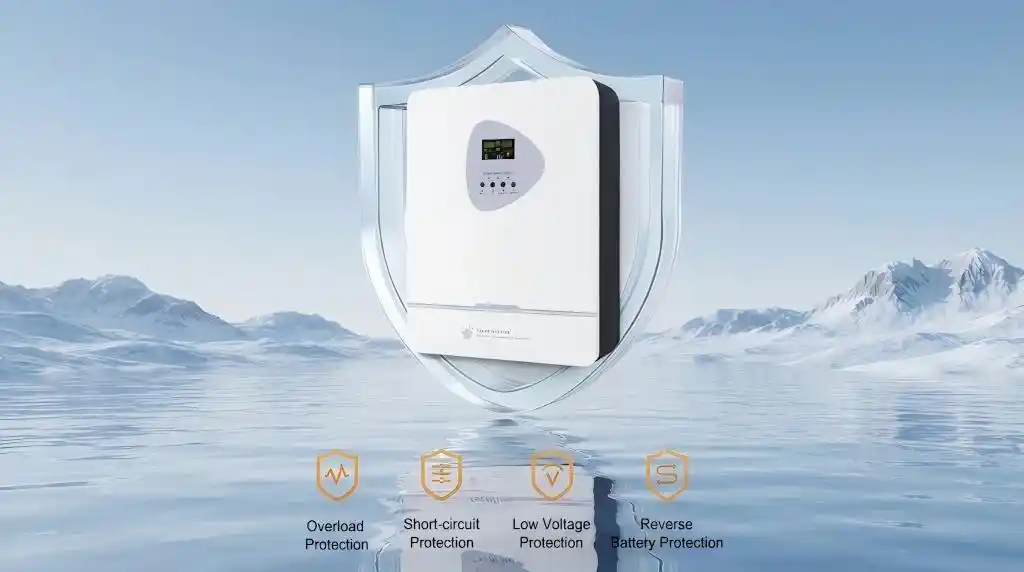

Provides short-circuit protection and overload handling to help maintain secure operation under demanding loads.

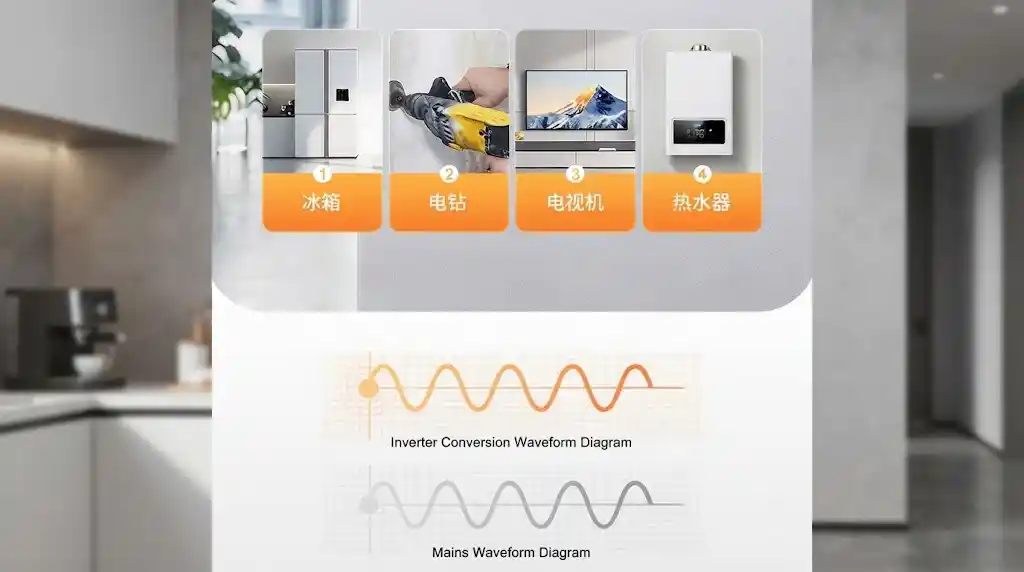

Delivers clean, stable AC power with a pure sine waveform, supporting reliable operation across household and electronic loads.

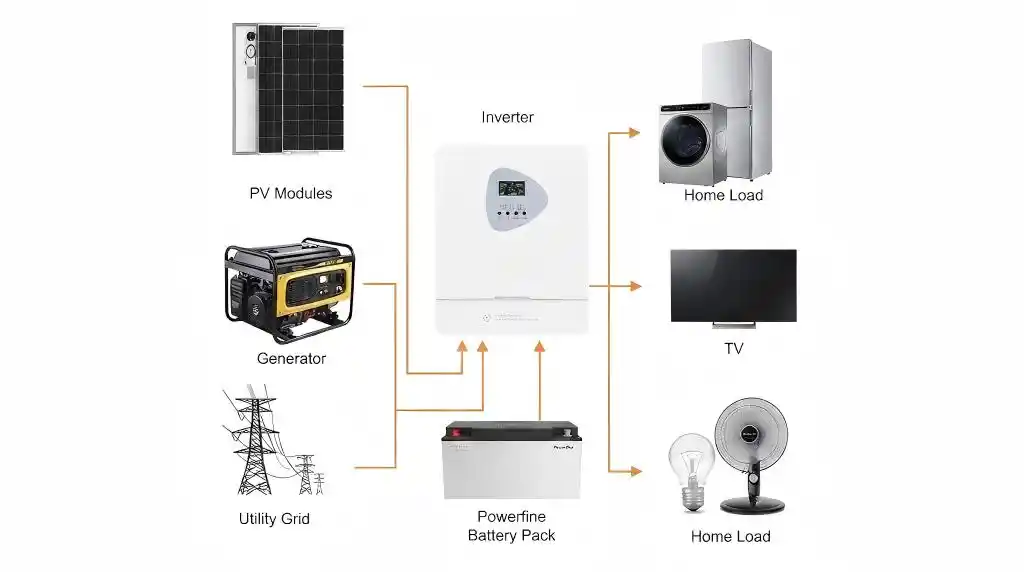

Illustrates PV, grid, battery, generator, and load connections within the hybrid system power flow.

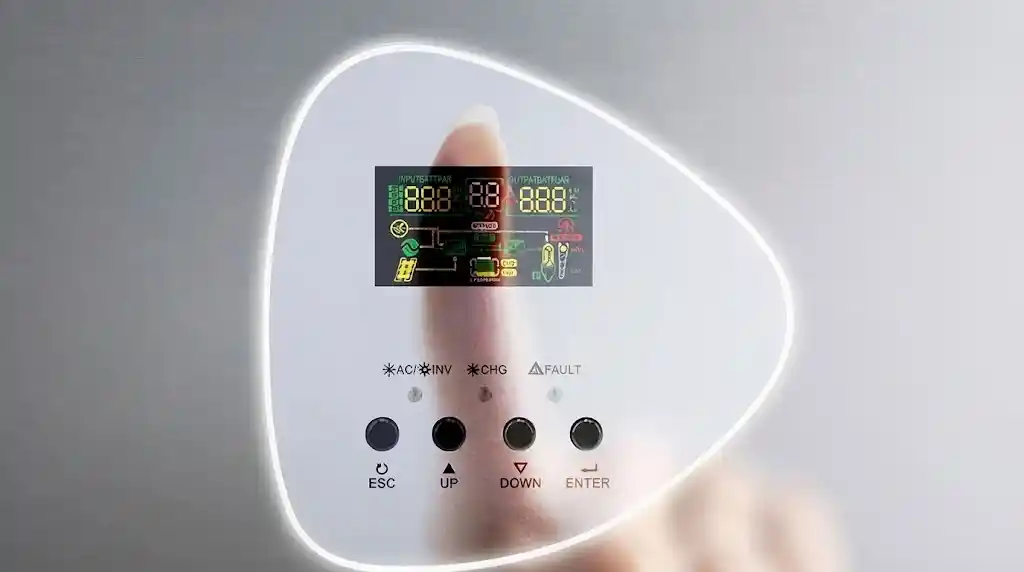

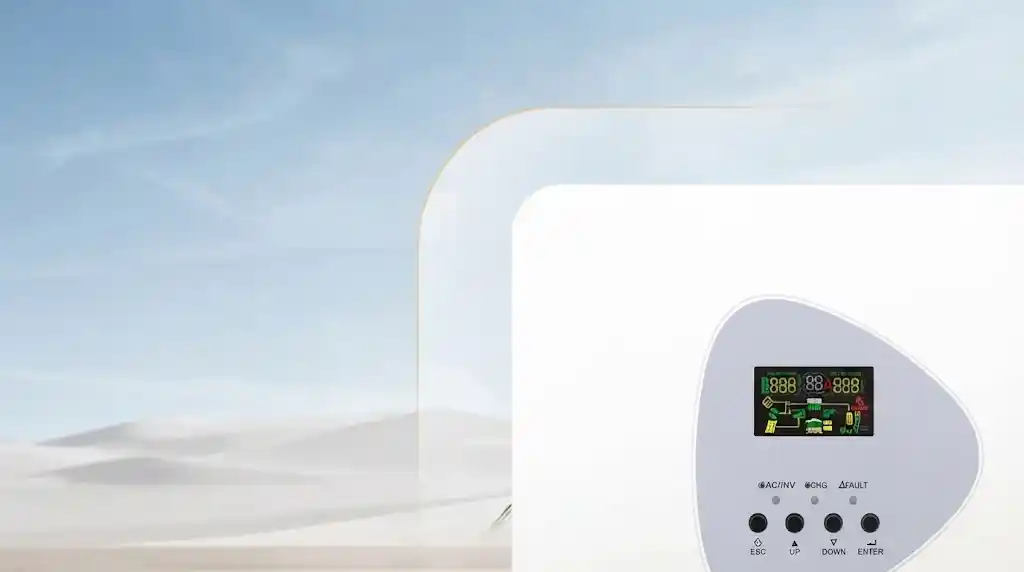

LCD displays operating mode, load, input, and output information clearly for checks and adjustments.

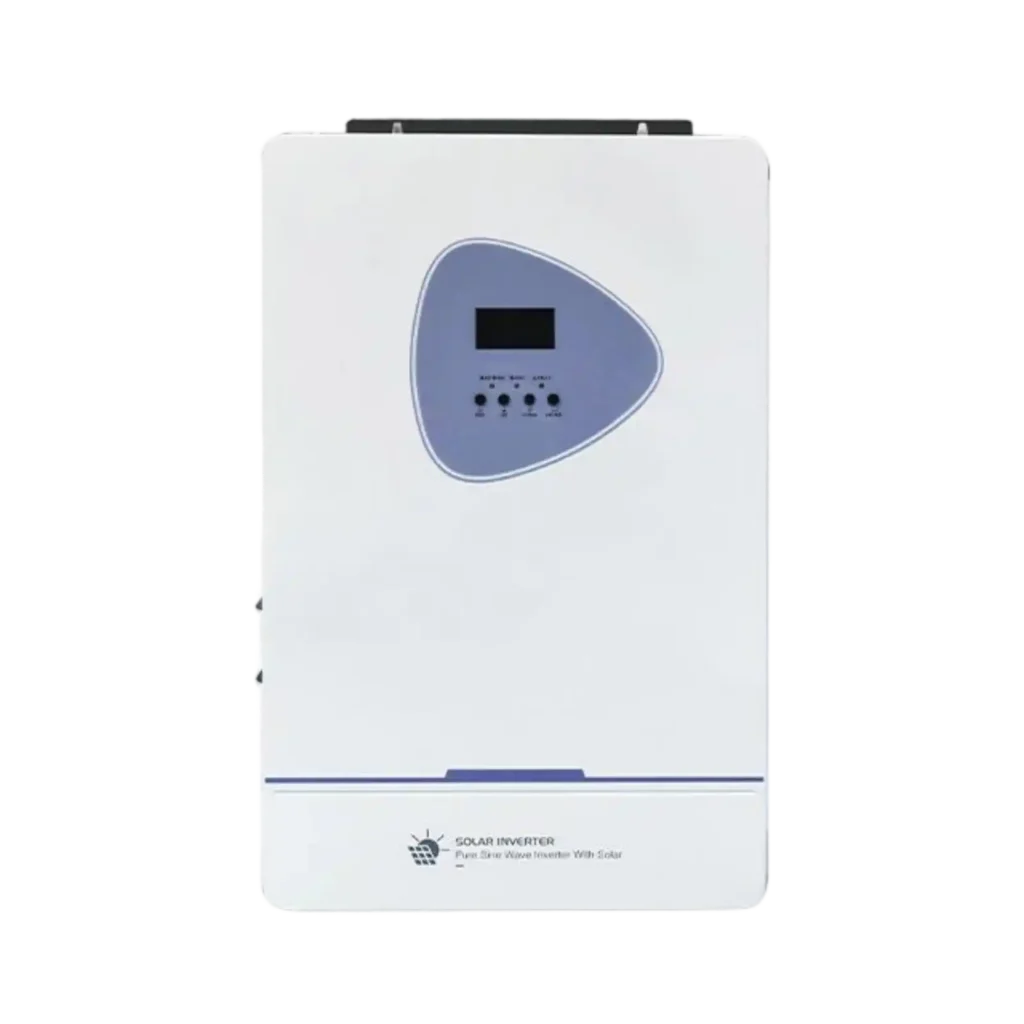

Rounded housing combines compact form and practical controls for cleaner installation and easier operation.
VoltCrave Power supports OEM/ODM projects with product customization, technical coordination, responsive service, and practical solutions for different energy applications.
Support can include product options, marketing materials, customization coordination, guidance, and installation-related assistance for partner projects.
Quality control and certification documentation help support product safety, reliability, and market access requirements across different project and regional applications.
| Parameter | EA8648EMH | EA11048EMH |
|---|---|---|
| Rated Power | 8600W | 11000W |
| Battery Rated Voltage | 48VDC | 48VDC |
| AC Input | 220/230/240VAC | 220/230/240VAC |
| Input Voltage Range | 90–280VAC±3V (Normal Mode); 170–280VAC±3V (UPS Mode) | Same |
| Output Voltage | 220/230/240VAC±5% | Same |
| Output Frequency | 50/60Hz±0.1% | Same |
| Output Wave | Pure Sine Wave | Pure Sine Wave |
| Peak Power | 17200VA | 22000VA |
| Transfer Time | 10ms for Computer Equipment; 20ms for Household Equipment | Same |
| Output Current | 37.4A | 47.8A |
| Max Efficiency (DC/AC) | 0.98 | 0.98 |
| PV Charging Method | 2*MPPT | 2*MPPT |
| Max PV Input | 2*5500W | 2*5500W |
| MPPT Tracking Range | 90–500VDC | 90–500VDC |
| MAX PV Input Voltage | 500VDC | 500VDC |
| MAX PV Charge Current | 150A | 150A |
| MAX AC Charge Current | 120A | 150A |
| MAX Charge Current | 150A | 150A |
| Communication | RS232, Lithium Battery BMS Communication Card, WIFI | Same |
| LCD Display | Operating mode / load / input / output | Same |
| Parallel Interface | Not Support Parallel | Not Support Parallel |
| Operating Temperature | -10°C–50°C | Same |
| Noise | ≤50dB | ≤50dB |
