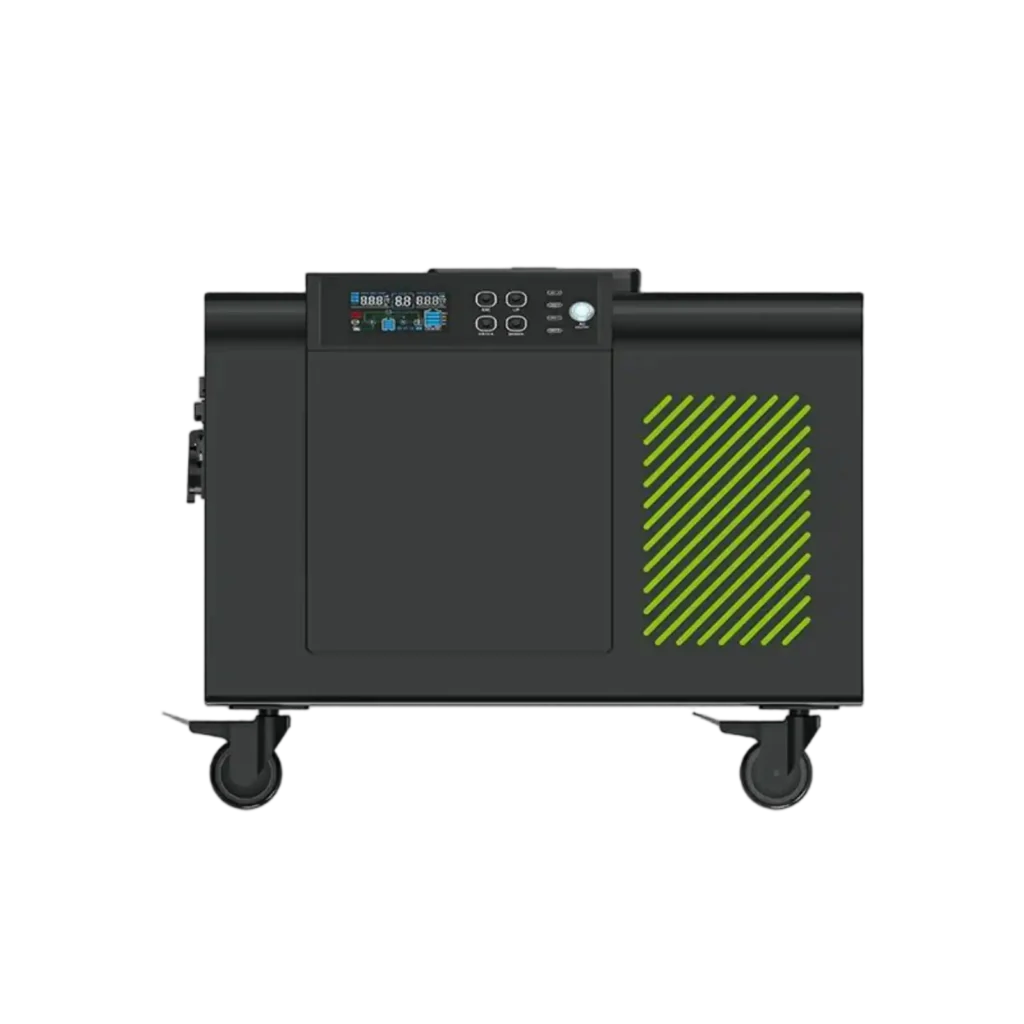

BH0102A 1200W power station with 2560Wh LiFePO4 battery, 1000W MPPT solar input, pure sine wave output and 10ms UPS transfer.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
The integrated inverter provides up to 1200W / 1.2kVA continuous pure sine wave AC output. Configurable 208V, 220V, 230V and 240V output options support different market requirements.

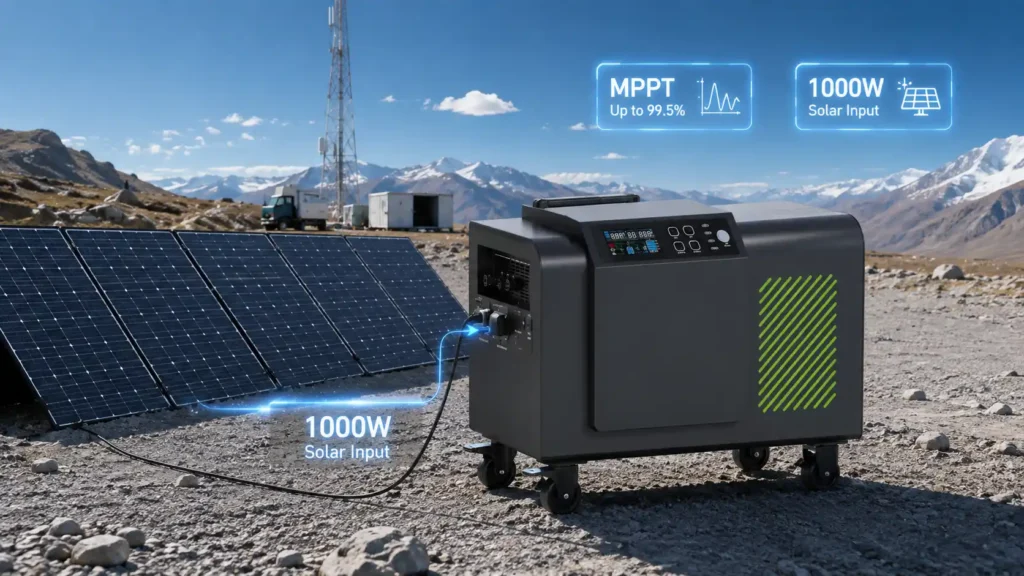

The built-in MPPT controller supports up to 1000W solar input and achieves up to 99.5% tracking efficiency. This enables efficient solar charging for backup and off-grid applications.

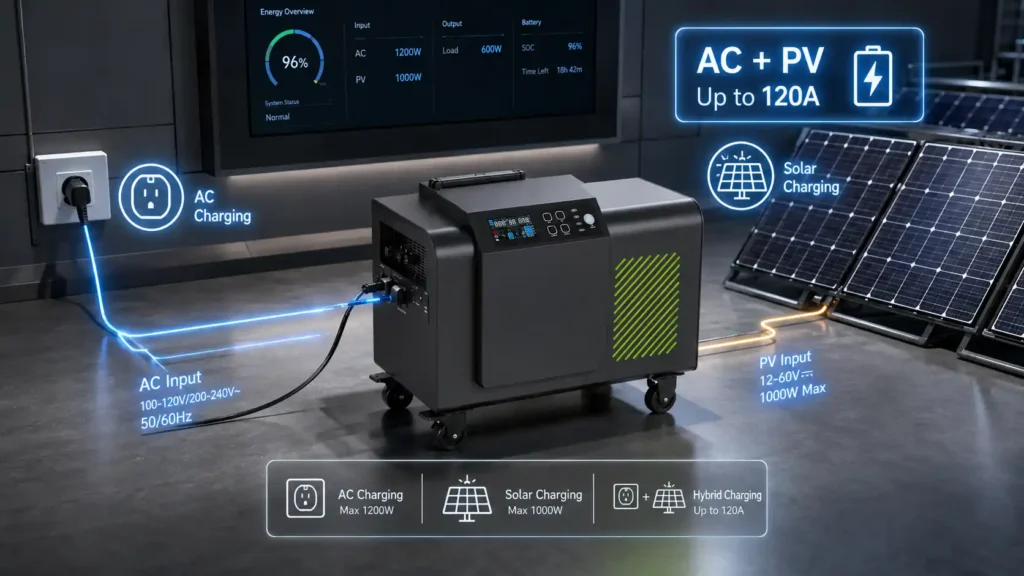

Multiple charging options include AC mains, solar PV and AC + PV hybrid charging. Hybrid charging supports a total charging current of up to 120A.
A grid-to-battery transfer time as low as 10ms enables fast backup during power interruptions. It is suitable for computers, networking equipment and other critical electronic loads.
The integrated LCD provides real-time information for input, output, battery, load and system operating status. Operating parameters can also be configured through RS232 communication.

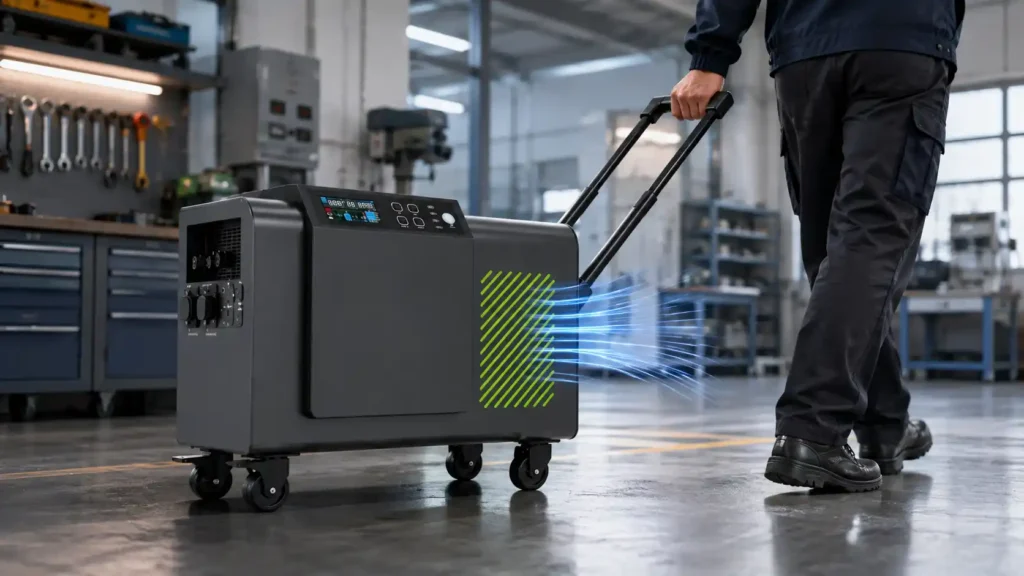

The cabinet incorporates built-in wheels for easier transportation and deployment. Forced-air cooling supports stable operation in demanding backup and mobile-power applications.
VoltCrave Power supports customization for different markets and project requirements. Plug configurations, AC output standards, housing colors and product specifications can be adapted according to customer requirements.
| Parameter | Specification |
|---|---|
| Model | BH0102A |

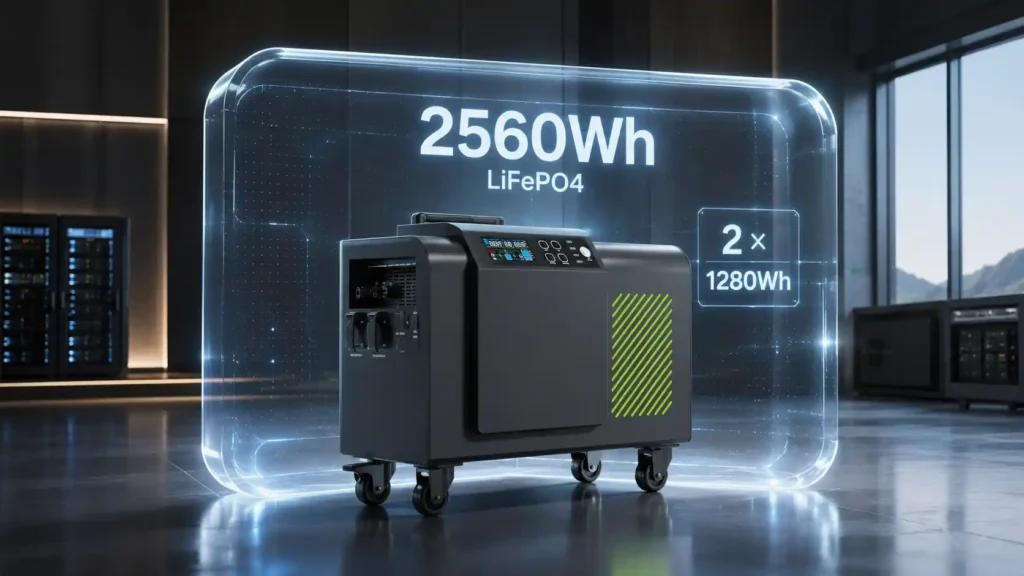

| Battery Capacity | 2560Wh |
| Battery Type | LiFePO4 |
| Battery Modules | 2 × 1280Wh |
| Rated AC Output | 1200W / 1.2kVA |
| Inverter Output | Pure Sine Wave |
| AC Output Voltage | 208V / 220V / 230V / 240V |
| AC Input Range | 90–280VAC |
| Solar Input | Up to 1000W |
| Solar Controller | MPPT |
| MPPT Tracking Efficiency | Up to 99.5% |
| Charging Methods | AC / Solar PV / AC + PV |
| Hybrid Charging Current | Up to 120A |
| UPS Transfer Time | As Low As 10ms |
| Battery Management | BMS |
| Monitoring | LCD Display / RS232 |
| Cooling | Forced-Air Cooling |
| Mobility | Built-In Wheels |
| Supply Ability | 5,000 Units/Month |
| Customization | Plug Type, AC Output Standard, Housing Color and Specifications According to Customer Requirements |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
