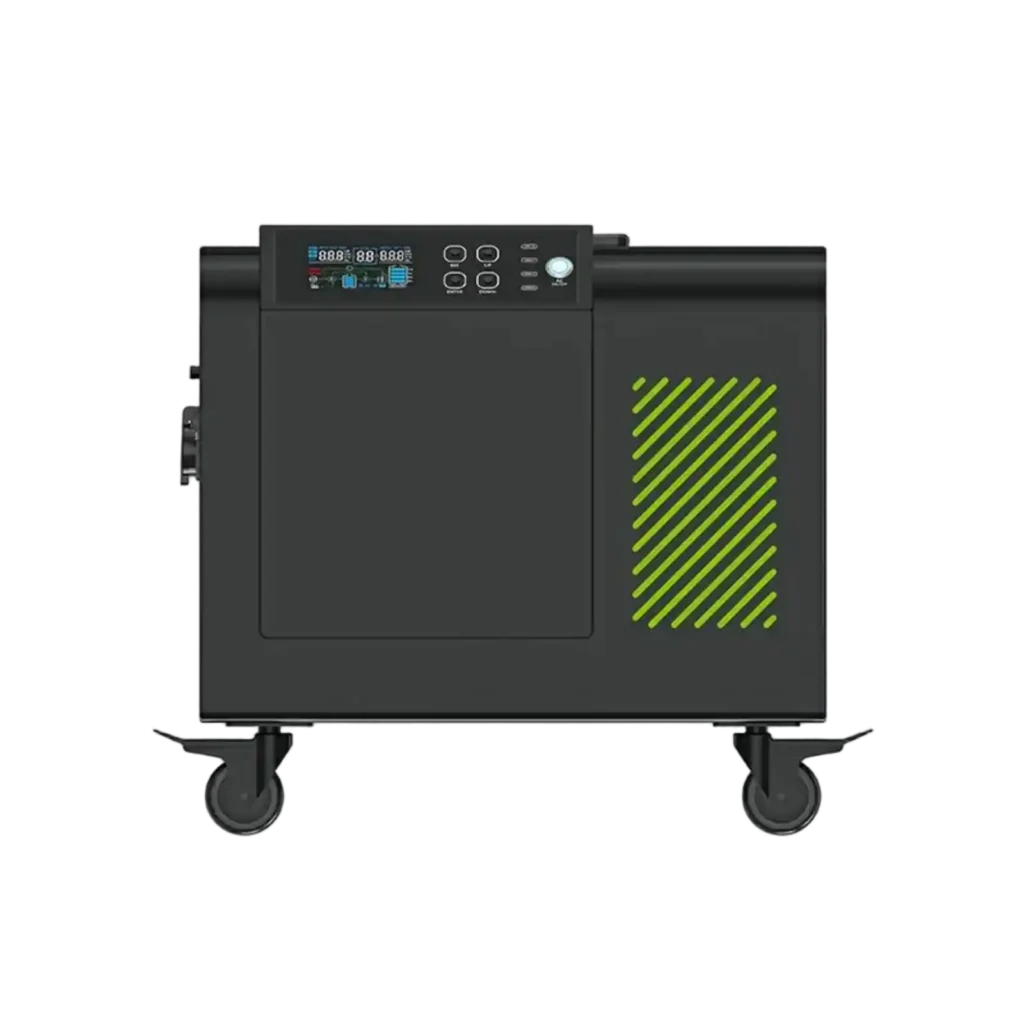

BH0404A 3864Wh LiFePO4 power station with 3600W pure sine wave output, 5000W MPPT solar input and 10ms UPS transfer for home backup.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
The 3864Wh / 150Ah LiFePO4 battery provides substantial stored energy for residential backup and mobile power applications. Its 1P8S battery configuration operates across a 22–28.8V range.
Rated output reaches 3600W / 3.6kVA with a pure sine wave waveform. Multiple AC voltage options from 208V to 240V and 50/60Hz frequency support different regional applications.
The integrated MPPT system supports up to 5000W solar input with a 40–450VDC operating range. MPPT tracking efficiency reaches up to 99.5% for efficient solar-energy utilization.
The system supports grid, solar, battery and generator power sources for flexible energy management. Its adjustable 90–280VAC input range helps accommodate different grid and generator conditions.
UPS mode provides a typical 10ms line-to-battery transfer time. This makes the system suitable for computers, home-office equipment and other sensitive electronic loads during power interruptions.
The integrated LCD displays input and output status, battery condition, load percentage and inverter temperature. Dedicated control buttons provide direct access to system settings and operating information.
Built-in caster wheels with brakes simplify movement and positioning of the high-capacity system. Forced-air cooling supports thermal management during operation.
VoltCrave Power supports B2B customization for different markets and energy projects. Plug configuration, AC output standards, housing color and product specifications can be adapted to customer requirements.
| Parameter | Specification |
|---|---|
| Model | BH0404A |
| Battery Capacity | 3864Wh / 150Ah |
| Battery Type | LiFePO4 |
| Battery Configuration | 1P8S |
| Operating Voltage | 22–28.8V |
| Charge / Discharge Rate | 1C |
| Rated AC Output | 3600W / 3.6kVA |
| AC Output Voltage | 208V / 220V / 230V / 240V |
| Output Frequency | 50Hz / 60Hz |
| Output Waveform | Pure Sine Wave |
| Maximum Solar Input | 5000W |
| MPPT Voltage Range | 40–450VDC |
| Maximum PV Voltage | 500VDC |
| MPPT Efficiency | Up to 99.5% |
| Maximum Solar Charging Current | 100A |
| AC Input Range | 90–280VAC Adjustable |
| Maximum AC Input Current | 20A |
| Operating Modes | UPS / Appliance / Generator |
| UPS Transfer Time | 10ms Typical |
| Dimensions | 515.54 × 486.45 × 316.47mm |
| Cooling | Forced-Air Cooling |
| Installation | Floor-Standing, Wheels with Brake |
| Supply Ability | 10,000 Units/Month |
| Customization | Plug Type, AC Output Standard, Housing Color and Specifications According to Customer Requirements |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
