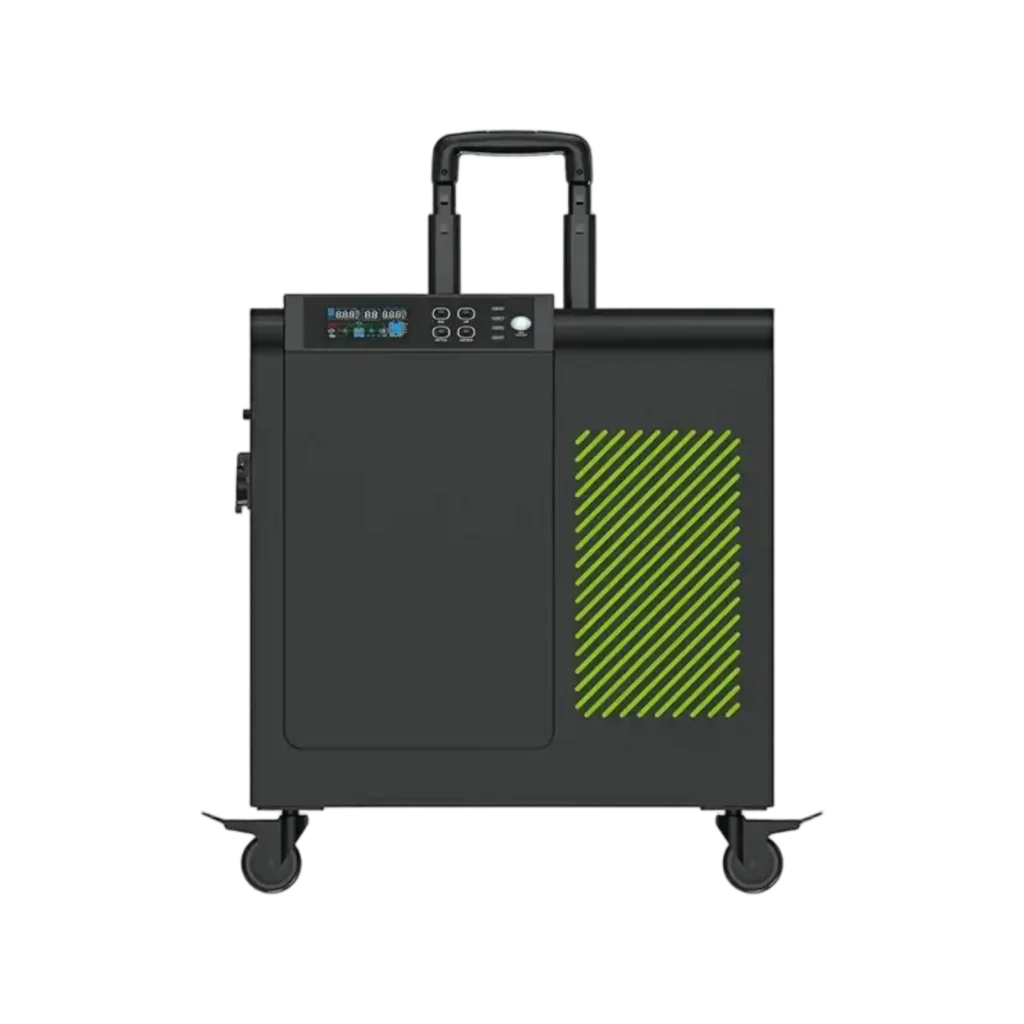

BH0505C 5000W power station with 5120Wh LiFePO4 battery, 6000W MPPT solar input, pure sine wave output and 10ms UPS transfer.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

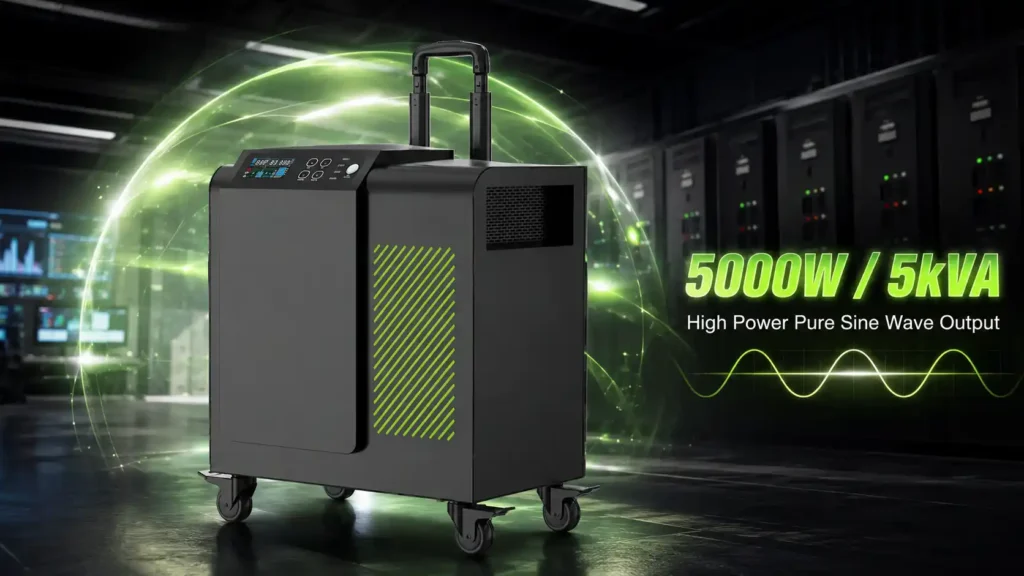

The 5000W / 5kVA pure sine wave output is designed for demanding household, commercial and professional equipment. Multiple AC voltage configurations support different regional power requirements.
A 5120Wh, 51.2V 100Ah LiFePO4 battery provides substantial energy storage for backup and off-grid use. The battery supports a discharge rate of up to 1.5C.

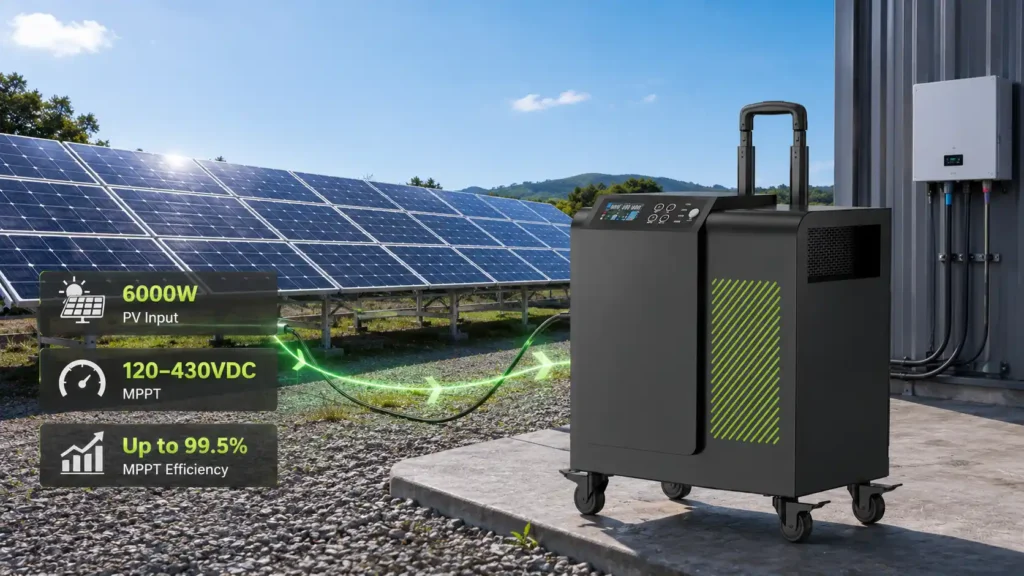

The integrated high-voltage MPPT controller supports up to 6000W PV input with a 120–430VDC MPPT range. Tracking efficiency reaches up to 99.5% for efficient solar-energy utilization.

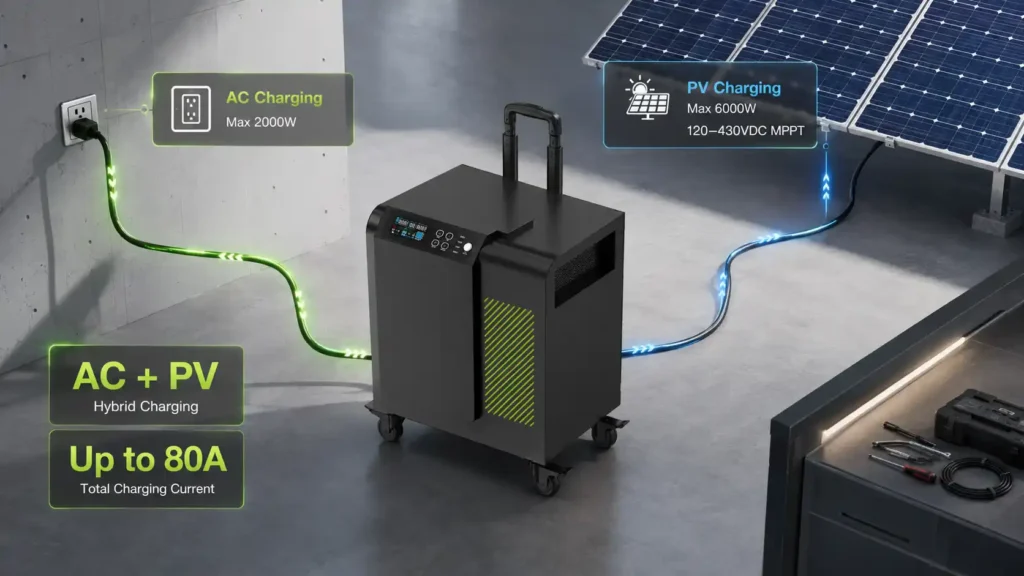

The system supports AC mains, PV and AC + PV hybrid charging for flexible energy management. Charging current can be configured up to 80A.

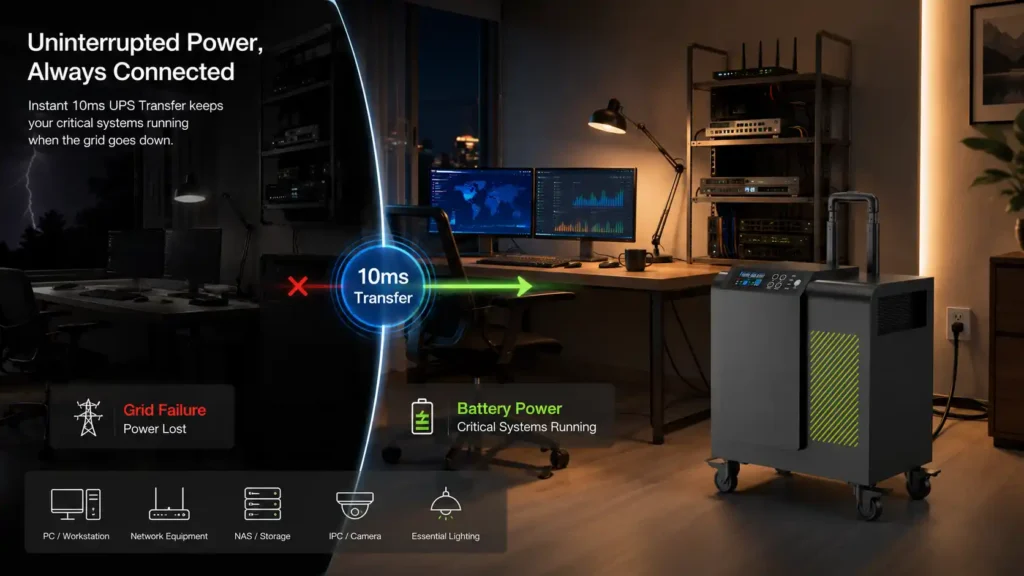

A 10ms transfer time enables rapid battery backup when grid power is interrupted. This makes the system suitable for computers, communication systems, servers and essential household equipment.
The integrated LCD provides real-time monitoring of voltage, current, frequency, load percentage, battery status and system alarms. Charging parameters can also be configured through the system interface.
Forced-air cooling supports stable thermal management during operation. Four locking wheels and the integrated retractable handle simplify movement and positioning.
VoltCrave Power can configure the system for different markets and project requirements. Plug type, AC output standard, housing color and other product specifications can be customized.
| Parameter | Specification |
|---|---|
| Model | BH0505C |
| Battery Capacity | 5120Wh / 100Ah |
| Battery Voltage | 51.2V |
| Battery Type | LiFePO4 |
| Maximum Discharge Rate | Up to 1.5C |
| Rated AC Output | 5000W / 5kVA |
| Output Waveform | Pure Sine Wave |
| AC Output Voltage | 208V / 220V / 230V / 240V |
| Maximum Solar Input | 6000W |
| MPPT Voltage Range | 120–430VDC |
| Maximum PV Voltage | 500VDC |
| MPPT Efficiency | Up to 99.5% |
| AC Input Range | 90–280VAC |
| Hybrid Charging | AC + PV |
| Configurable Charging Current | Up to 80A |
| UPS Transfer Time | 10ms |
| AC Mode Efficiency | >99.5% |
| Battery Mode Efficiency | >91.5% |
| Cooling | Forced-Air Cooling |
| Mobility | Four Locking Wheels |
| Customization | Plug Type, AC Output Standard, Housing Color and Specifications According to Customer Requirements |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
