Industrial Power Station

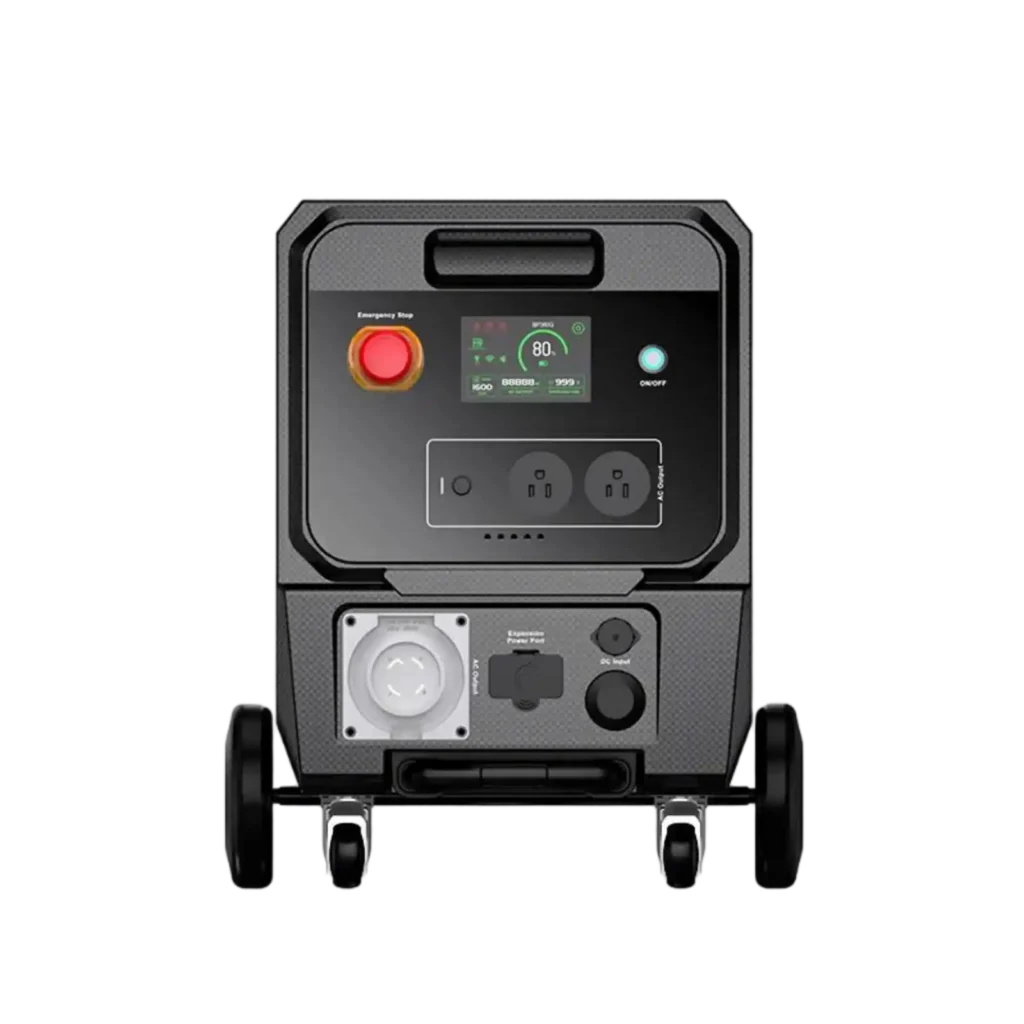

BP360G 3600W 2640Wh Industrial Power Station

3600W industrial power station with 2640Wh capacity, 18000W peak power, MPPT solar charging, pure sine wave output, and IP66 protection.

Send an Inquiry

360° SAFETY

Intelligent BMS Battery Protection — 8-Layer Safety Shield

Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock

Over-charge Protection
Over-discharge Protection
Over-current Protection
Short-circuit Protection
High-temperature Cutoff
Low-temperature Charging Lock
Cell Voltage Balancing
Auto-disconnect / Low SOC Sleep

PRODUCT DETAILS

Product Specifications & Technical Documentation

Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

Details Specifications FAQ

3600W High Output for Professional Applications

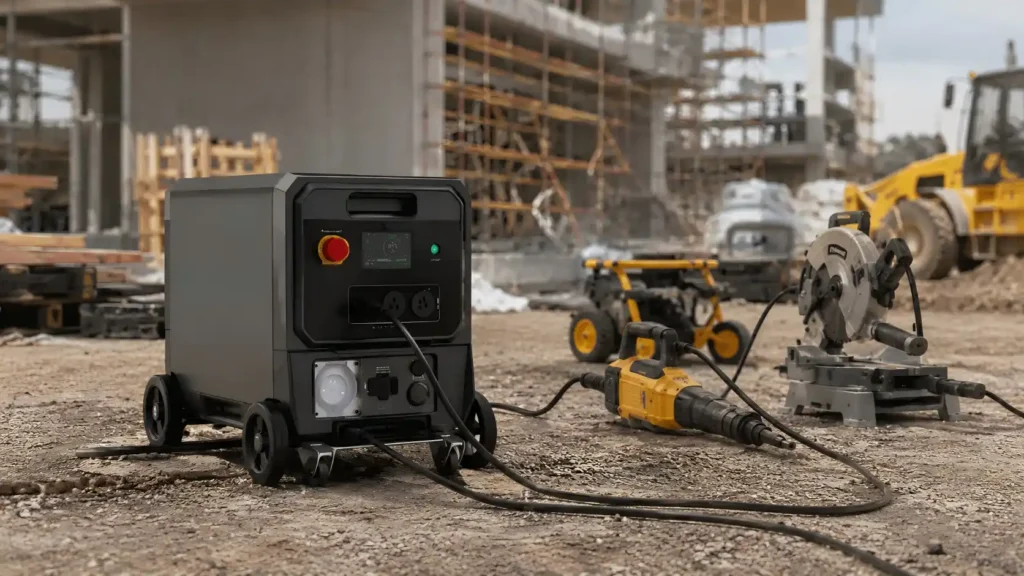

3600W industrial power station for professional field applications

The 3600W industrial power station is designed for professional users who need reliable portable power for demanding applications.

With 3600W of rated output and up to 18000W of peak power, it provides substantial power capability for field operations, mobile work, emergency power, maintenance activities, and other off-grid applications.

The high output rating makes it a practical solution for B2B buyers looking for a portable alternative to traditional power sources.

2640Wh Capacity for Extended Power

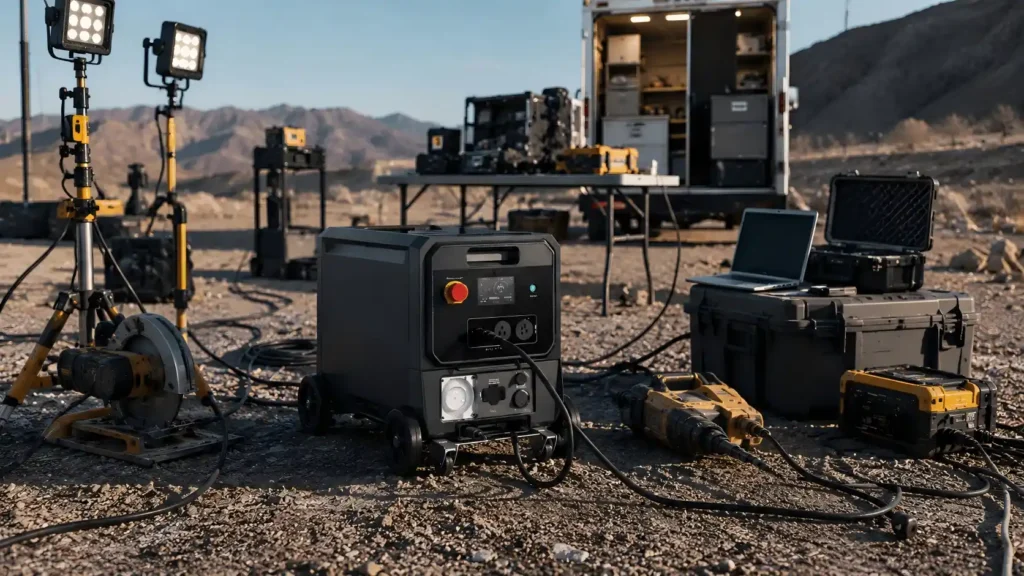

2640Wh industrial power station providing portable off-grid power

With a 2640Wh capacity, this power station provides substantial stored energy for professional and outdoor applications.

The larger energy capacity allows users to operate multiple electrical devices and equipment without depending directly on grid power.

For distributors, outdoor power suppliers, and professional service providers, the capacity provides flexibility across different mobile power scenarios.

18000W Peak Power

Some electrical equipment can require significantly higher power during startup.

This model provides up to 18000W of peak power, giving users additional power capability for equipment with higher instantaneous demand.

The combination of 3600W rated output and 18000W peak power makes the system suitable for applications where both continuous and startup power requirements need to be considered.

Pure Sine Wave AC Output

The power station uses pure sine wave technology for its AC output.

It supports 100V, 120V, 230V, and 240V AC output configurations, providing flexibility for different regional markets and application requirements.

This makes the platform suitable for B2B suppliers serving customers across multiple regions.

MPPT Solar Charging

The system uses an MPPT controller and supports solar panel charging.

Solar charging provides an additional power source for outdoor and off-grid applications where conventional electricity may not be readily available.

This feature makes the power station suitable for field operations, mobile service, emergency situations, and other applications requiring flexible energy replenishment.

IP66 Protection for Outdoor Applications

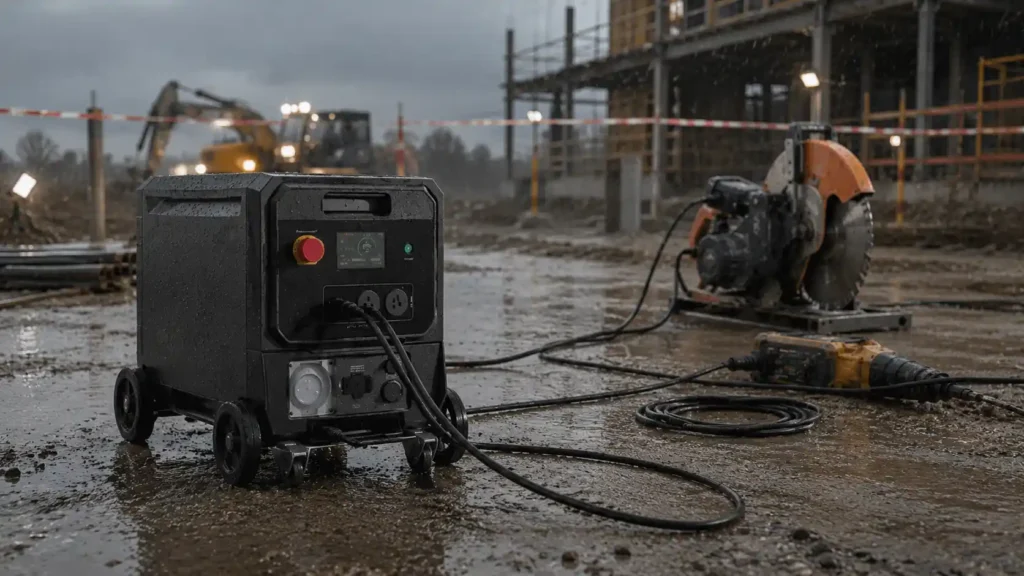

IP66 industrial power station for outdoor applications

The IP66 protection rating supports the use of the power station in demanding outdoor environments.

The industrial enclosure is designed for professional deployment where equipment may encounter dust and water exposure.

This makes the system suitable for construction support, field maintenance, outdoor operations, emergency response, and mobile power applications.

Multi-Function Design

The power station integrates multiple practical functions into one portable platform.

Features include wireless charging, remote control, Type-C connectivity, a flashlight, jump-start capability, an RV port, and a cigar lighter connection.

These functions allow the same power platform to support different professional, outdoor, automotive, and recreational applications.

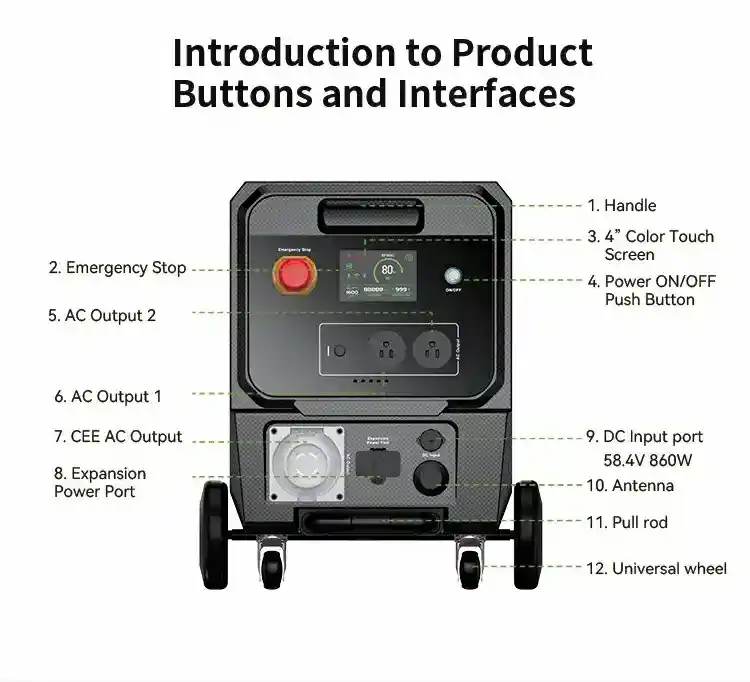

Introduction to ProductButtons and Interfaces

Introduction to ProductButtons and Interfaces bp360g

Flexible Industrial Power Solution

With 2640Wh capacity, 3600W rated output, 18000W peak power, pure sine wave AC output, MPPT solar charging, and IP66 protection, this power station is designed for flexible portable power applications.

VoltCrave Power provides this type of industrial power solution for B2B customers seeking portable energy equipment for professional outdoor, mobile, emergency, and off-grid applications.

Parameter Specification
Battery Type LiFePO4
Capacity 2640Wh
Rated Output Power 3600W
Peak Power 18000W
Inverter Type Pure Sine Wave
AC Waveform Pure Sine Wave
AC Output 100V / 120V / 230V / 240V
Power Source Solar Panel
Controller Type MPPT
Protection Rating IP66
Size 558.5 × 436.8 × 520 mm
Weight 27 kg
Charging Temperature Range -20°C to 45°C
Special Features Wireless Charging, Remote Control, Type-C, Flashlight, Jump Starter, RV Port, Cigar Lighter
What is the rated output power of this industrial power station?
The industrial power station provides 3600W of rated output power and up to 18000W of peak power.
What is the energy capacity of the power station?
The power station has a listed capacity of 2640Wh.
Does the power station support solar charging?
Yes. The system supports solar panel charging and uses an MPPT controller.
What type of AC output does it provide?
It provides pure sine wave AC output and supports 100V, 120V, 230V, and 240V output configurations.
What applications is this industrial power station suitable for?
It is suitable for professional outdoor work, field operations, emergency power, mobile service, RV applications, and other portable power requirements.
