5000W Portable Power Station with 5120Wh capacity, LiFePO4 battery, 10000W surge power, fast charging, and expandable storage for backup and off-grid power.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
Reliable backup power is increasingly important for homes, RVs, workshops, remote worksites, and off-grid applications. When grid electricity is unavailable, users need more than a basic battery pack. They need a high-capacity system that can support multiple devices, high-power appliances, and essential household loads for extended periods.
The BP5000 Pro Max combines a 5120Wh LiFePO4 battery with 5000W rated output and 10000W surge power. It also supports 120V/240V dual-voltage operation, expandable energy storage, fast AC and solar charging, EPS backup, and smart app control. These features make it suitable for customers looking for a high-performance portable power station that can move beyond basic outdoor power into whole-home and professional backup applications.
For distributors, wholesalers, retailers, and energy solution providers, this system offers a versatile platform for residential backup, RV power, emergency preparedness, outdoor applications, and off-grid energy storage.
The BP5000 Pro Max provides 5120Wh of stored energy from its LiFePO4 battery.
The large battery capacity gives users a substantial energy reserve for situations where grid electricity is unavailable or additional independent power is required.
It can support applications such as:
The 5120Wh capacity also provides greater flexibility for users who need to operate multiple appliances or devices over an extended period.
The 5000W rated output provides significantly more power than conventional portable power stations designed primarily for small electronic devices.
The system uses a pure sine wave output and can deliver up to 10000W surge power for compatible equipment with higher startup requirements.
This makes it suitable for applications involving:
The high output capability allows users to operate more demanding equipment from one centralized energy storage system.
One of the key advantages of the BP5000 Pro Max is its 120V/240V dual-voltage capability.
The system provides split-phase AC output, allowing it to support compatible 120V and 240V applications.
This expands its potential beyond conventional portable power applications and makes it suitable for larger household equipment and professional loads.
For users requiring more than standard 120V portable power, the dual-voltage design provides greater flexibility when connecting compatible equipment.
The combination of 5000W output and dual-voltage capability allows the system to address applications where higher-power electrical equipment is required.
It can be used for:
This makes the BP5000 Pro Max a practical option for customers who need one portable energy system capable of supporting multiple types of loads.

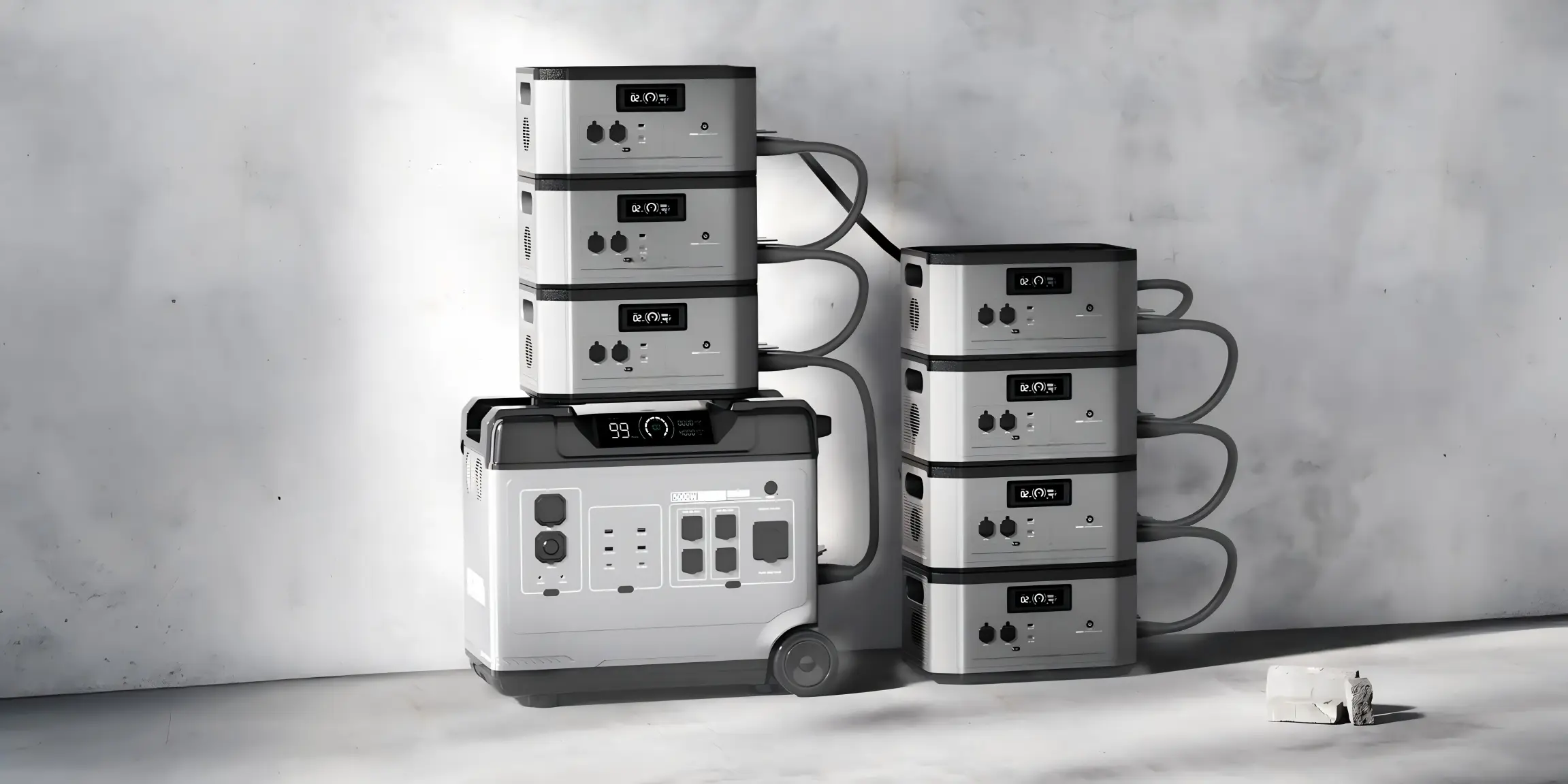

The base system provides 5120Wh of storage and can be expanded with up to seven B2000 expansion batteries.
With each B2000 providing 2048Wh, the total energy storage capacity can reach approximately 19.4kWh.
This gives users a scalable way to increase energy availability without replacing the primary power station.
Energy requirements can change over time. A customer may initially need a portable power station for outdoor use but later require additional capacity for longer home backup periods.
The expandable architecture provides a flexible upgrade path.
It can support different levels of demand, including:
For B2B buyers, scalability also creates opportunities to offer a single core platform across multiple customer segments.
The BP5000 Pro Max supports up to 1800W AC charging.
Under suitable conditions, AC charging can bring the system to 80% in approximately 2 hours and 29 minutes.
Fast charging helps reduce downtime and allows users to restore stored energy relatively quickly after heavy use.
This is particularly useful for customers who rely on the system regularly for home backup, RV travel, outdoor activities, or professional applications.

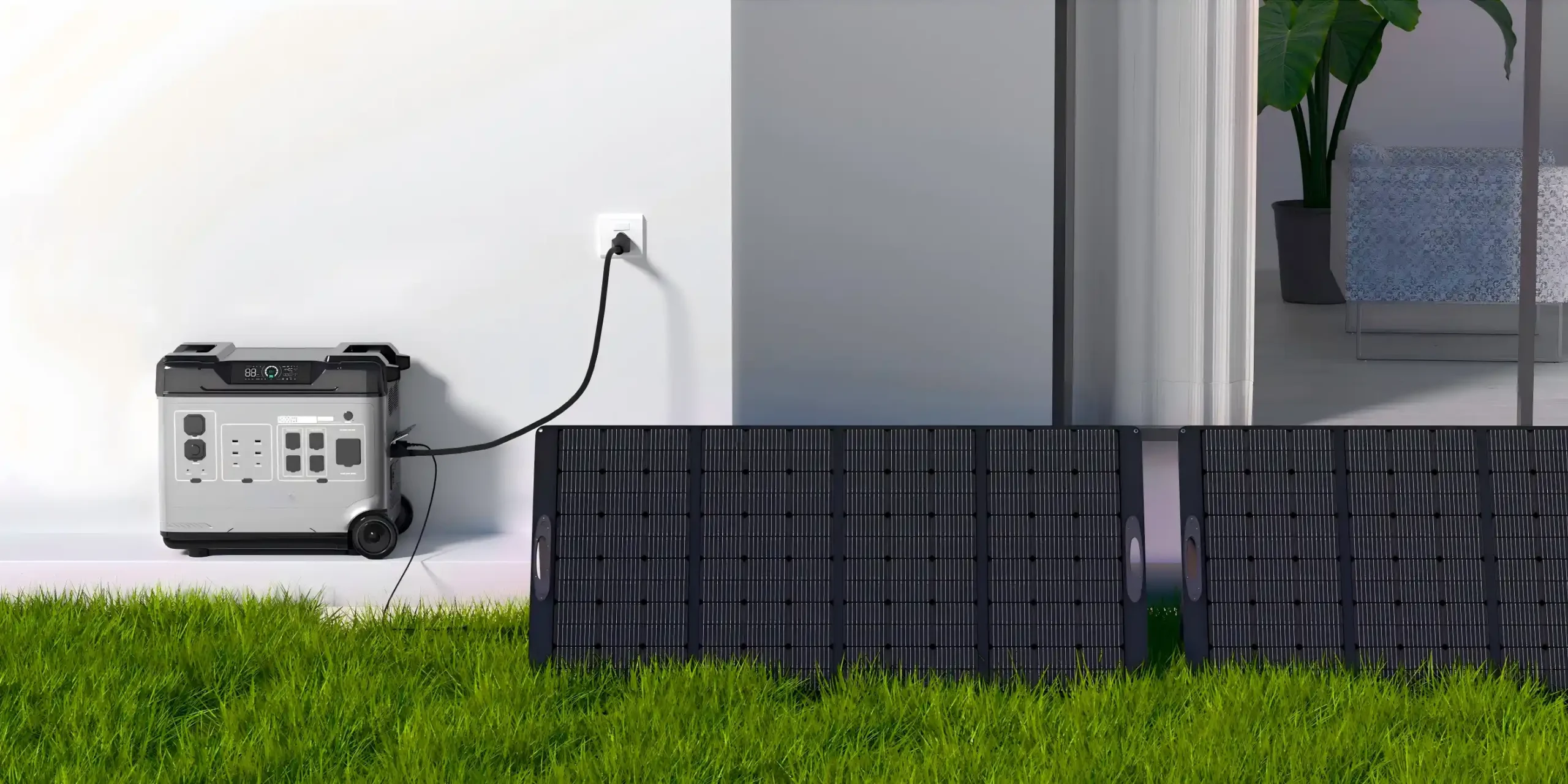

The system supports up to 1000W solar input.
This provides a renewable charging option for customers who want to replenish stored energy through compatible solar panels.
Solar charging is particularly useful for:
By combining solar generation with a large battery capacity, users can create a flexible energy storage system that does not rely entirely on grid electricity.
The BP5000 Pro Max supports combined AC and solar charging with up to 4800W charging power.
When suitable AC and solar sources are available, this provides a significantly faster way to recover stored energy.
The product page specifies that the system can reach 80% charge in approximately 1 hour and 25 minutes through combined AC and solar charging.
Unexpected power outages can interrupt refrigerators, computers, networking equipment, lighting, and other essential devices.
The BP5000 Pro Max provides a UPS switching time of less than 10ms, allowing it to respond quickly when grid electricity is interrupted.
This makes it suitable for backup applications where minimizing power interruption is important.
With 5000W rated power, 5120Wh capacity, and 120V/240V output, the BP5000 Pro Max can serve as a powerful backup energy platform for selected household loads.
When used with an appropriate transfer-switch configuration, it can provide backup electricity to compatible home circuits during grid outages.
For energy solution providers, this gives the product a wider positioning opportunity than a conventional camping-oriented portable power station.
The BP5000 Pro Max supports smart app control, allowing users to monitor important power information remotely.
The product page highlights real-time power insights, battery monitoring, charging schedule customization, remote control, and historical energy usage tracking.
This provides greater visibility into system operation and helps users manage stored energy more efficiently.
Remote monitoring can be particularly useful when the power station is operating in a garage, workshop, RV, cabin, or other location away from the user.
Users can check system information and manage compatible functions without needing to remain next to the unit.

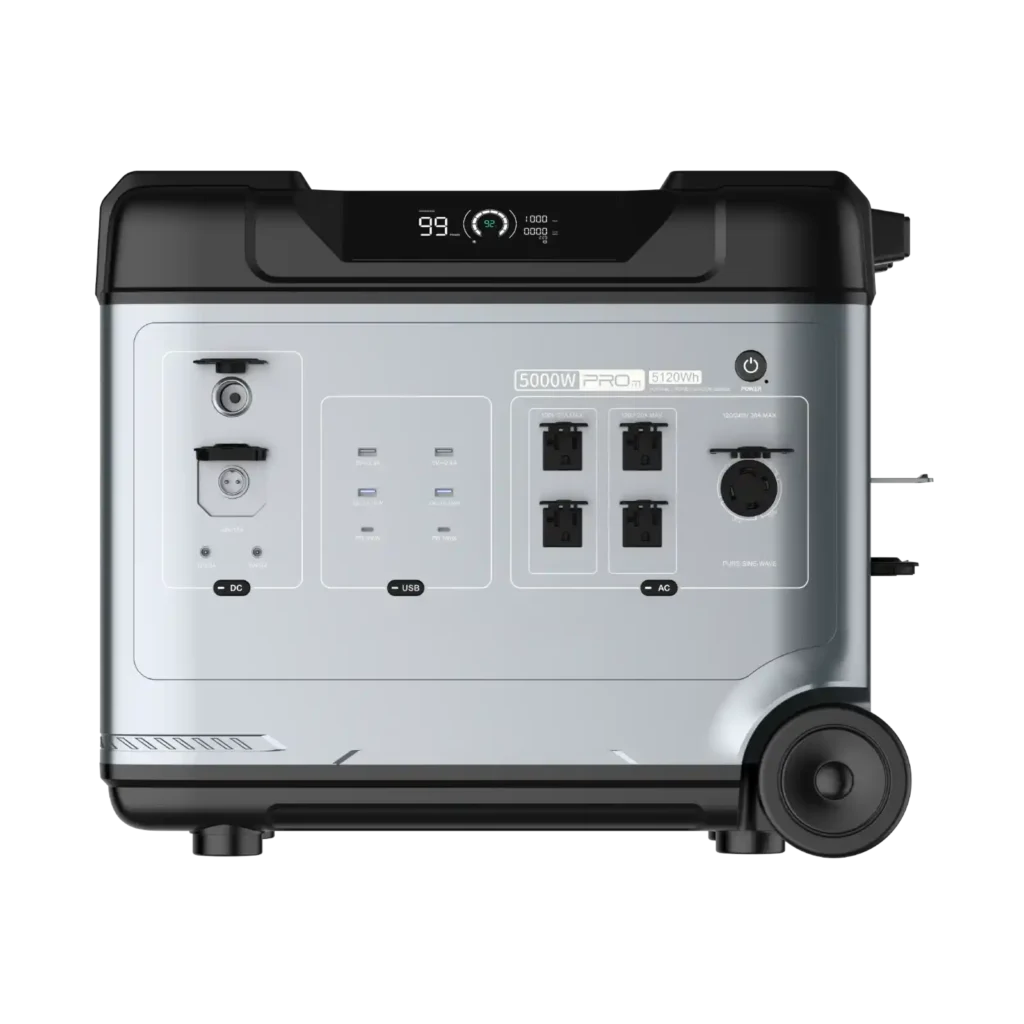

The BP5000 Pro Max provides multiple AC output areas and a split-phase 120V/240V outlet.
The AC configuration supports high-power applications while providing flexibility for different electrical loads.
The system can deliver up to 2500W through each 120V AC output area, while the split-phase output supports up to 5000W when operating at 240V under the specified configuration.
The system also provides multiple low-voltage charging and DC output interfaces.
It includes:
This allows users to power and charge computers, smartphones, tablets, communication devices, RV equipment, lighting, and other compatible equipment from one energy storage platform.
The BP5000 Pro Max is designed to provide direct power for RV applications.
Its high output, large battery capacity, and dedicated RV aviation port make it suitable for users who need a substantial independent energy source during road trips and extended stays.
The 48V/15A RV output provides up to 720W through the specified aviation port, giving RV users another option for powering compatible equipment.
The combination of battery storage, solar charging, AC charging, and vehicle-related output makes the system suitable for longer outdoor trips.
Users can charge the power station before departure, replenish energy through solar panels, and use stored electricity for appliances and electronic devices during travel.
The BP5000 Pro Max uses LiFePO4 battery technology and supports more than 5000 cycles to 80% of its original capacity.
The product page positions the battery for a service life of up to 10 years, providing a long-term energy storage option for frequent users.
The system includes BMS management and multiple protection functions.
These include protection against:
The system also uses six fans for cooling management to help maintain operating stability during demanding applications.
As a professional energy storage supplier, VoltCrave Power provides portable power and energy storage solutions for distributors, wholesalers, retailers, and project partners.
The BP5000 Pro Max combines 5120Wh LiFePO4 energy storage, 5000W rated output, 10000W surge power, 120V/240V dual-voltage capability, expandable capacity up to approximately 19.4kWh, fast AC and solar charging, EPS backup, smart app control, and multiple output ports.
These capabilities allow the product to target multiple markets, including whole-home backup, RV energy, professional applications, outdoor power, emergency preparedness, and off-grid energy storage.
The expandable battery architecture allows customers to increase their energy storage capacity as their requirements grow.
Starting with 5120Wh and expanding with up to seven B2000 batteries provides a scalable path toward approximately 19.4kWh of total storage.
For B2B partners, this combination of high output, large capacity, dual-voltage power, renewable charging, and scalable storage provides a versatile product platform for different energy markets.
VoltCrave Power focuses on providing practical and reliable portable energy solutions that help global partners expand their product portfolios and meet growing demand for high-capacity backup and off-grid power.
| Parameter | Specification |
|---|---|
| Model | BP5000 Pro Max |
| Rated Power | 5000W |
| Capacity | 5120Wh (51.2V 100Ah) |
| Battery Type | LiFePO4 |
| Surge Power | 10000W |
| Life Cycles | 5000+ cycles to 80% original capacity |
| Backup Switching Time | <10 ms |
| Output Wave | Pure Sine Wave |
| Scalability | Expand up to 7×B2000 |
| Solar Input | Max. 1000W |
| AC Charging | Max. 1800W |
| AC + Solar Charging | Max. 2800W |
| AC Output | 2 areas, 2500W max each |
| USB-C Output | 2× PD100W |
| USB-A Output | 2×12W |
| DC Outputs | DC5521, RV Aviation Port, Car Charging Port |
| Car Charging | 12V/8A, 48V/10A |
| Protection | Short-circuit, over-current, over-voltage, overload, over-temperature, over-charge |
| Cooling | 6 fans |
| Net Weight | 55kg |
| Dimensions | 550×299×487mm |
| Operating Temperature | 0°C–40°C |
| Storage Temperature | -10°C–40°C |
| Certifications | CE, FCC, PSE, UN38.3, EMC, LVD, RoHS, MSDS |
