7kW hybrid solar inverter with 48VDC battery system, 220–240VAC output, 50–60Hz operation, ≤4ms transfer and selectable energy priority modes.
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

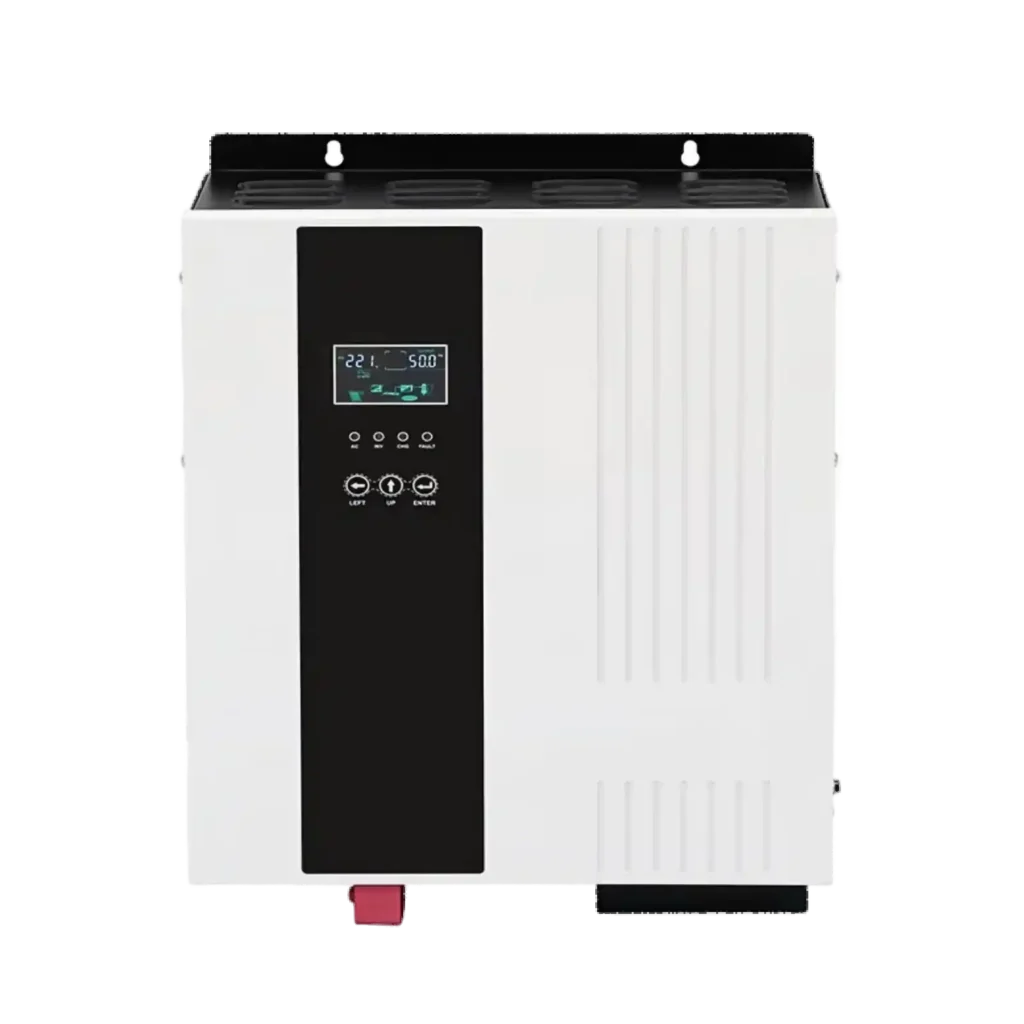

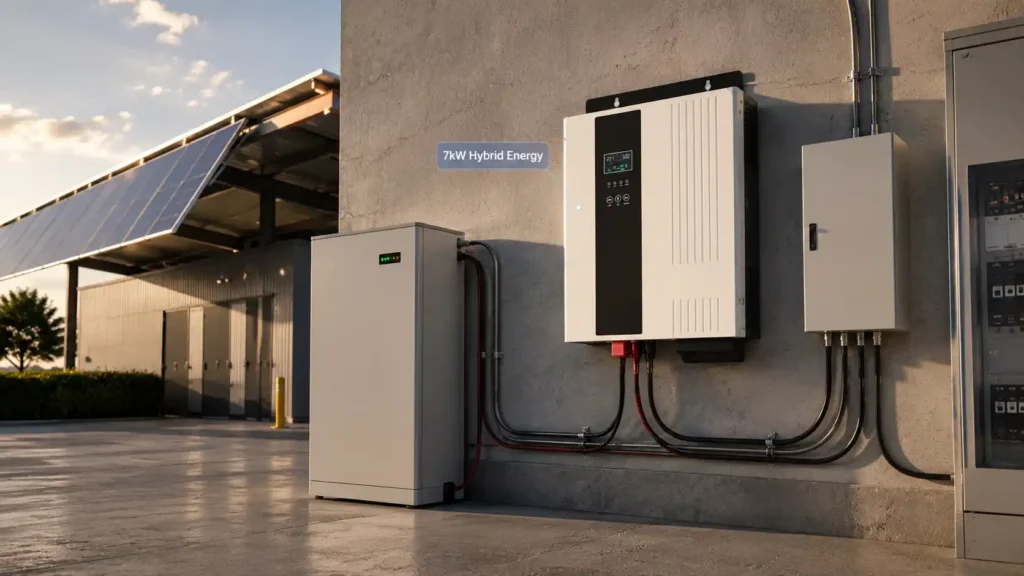

The HP-T72248 integrates solar, battery and mains power management in one 48VDC hybrid platform, providing 7000W output for off-grid and hybrid energy applications.
The system operates with a 48VDC battery configuration, providing a defined battery-side architecture for compatible energy storage projects.
The inverter supports 220VAC, 230VAC and 240VAC output with 50Hz–60Hz frequency, allowing deployment across different electrical markets.

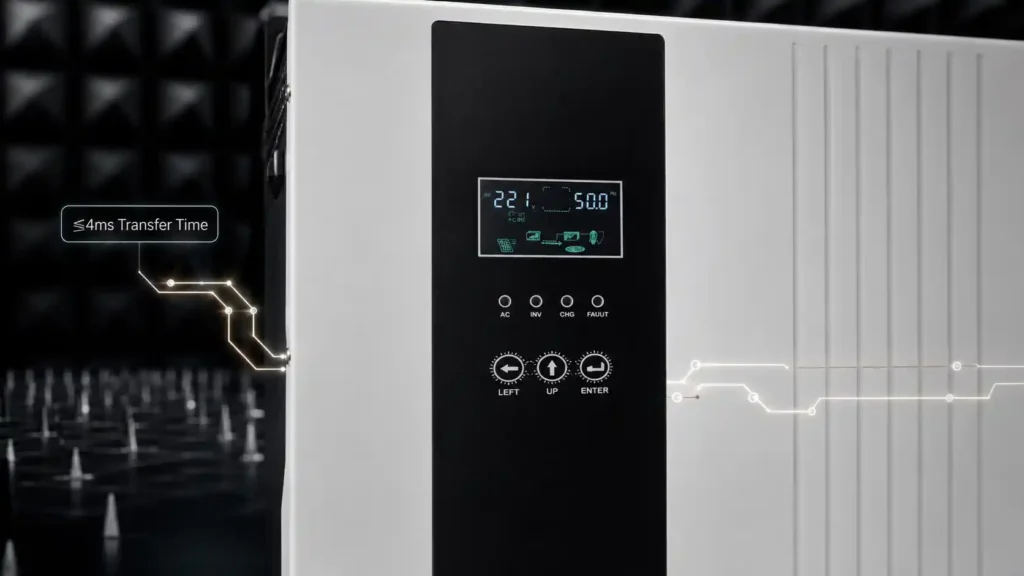

A specified ≤4ms transfer time enables rapid switching between available energy sources when operating conditions change.
Mains priority, solar priority and battery priority modes can be configured to match different energy-use strategies and project requirements.
The integrated MPPT controller combines solar charging management with the inverter platform, simplifying compatible hybrid system configuration.

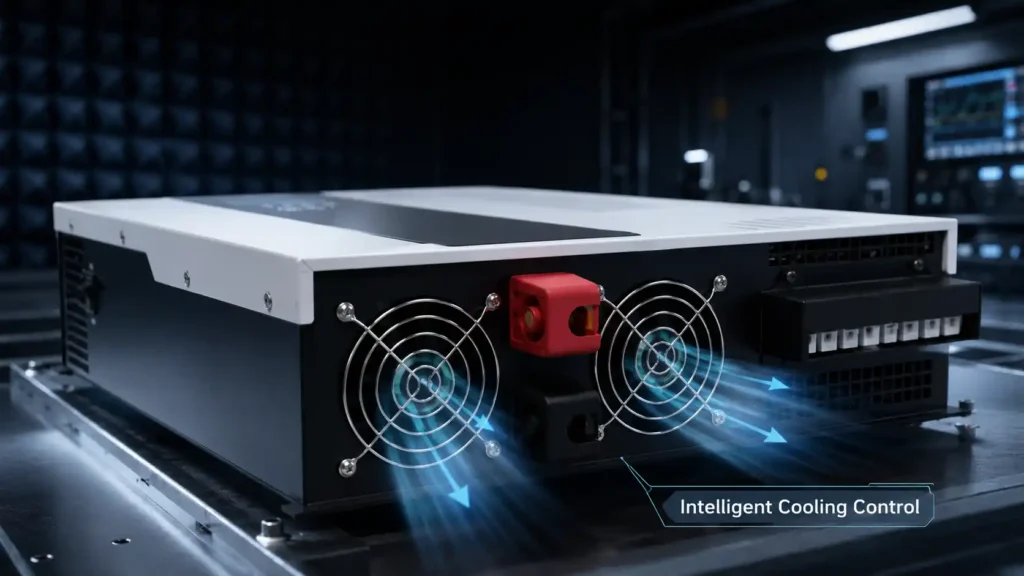

Intelligent cooling fan control supports thermal management, while LCD and LED display provide local operating information with optional RS485, WiFi APP or GPRS communication.
The 56.1 × 45.7 × 17.2 cm wall-mounted unit weighs 17.5 kg and provides a compact installation format. VoltCrave Power supports configuration customization for different B2B projects.
| Parameter | Specification |
|---|---|
| Model | HP/HP-T72248 |
| Product Type | Hybrid Solar Inverter |
| Output Power | 7000W |
| Rated Power | 7200W |
| Peak Power | 21.6kVA |
| Input Voltage | 48VDC |
| Battery Voltage | 48VDC |
| Output Voltage | 220VAC / 230VAC / 240VAC |
| Output Frequency | 50Hz–60Hz |
| Output Type | Dual |
| Inverter Efficiency | >99% |
| Controller | Built-in MPPT |
| Transfer Time | ≤4ms |
| Working Modes | Mains Priority / Solar Priority / Battery Priority |
| Display | LCD + LED |
| Installation Method | Wall-Mounted |
| Thermal Method | Intelligent Cooling Fan Control |
| Communication | RS485 / APP WiFi / GPRS Optional |
| Product Size | 56.1 × 45.7 × 17.2 cm |
| Weight | 17.5 kg |
