KH500 48V hybrid solar inverter with pure sine wave output, 210–230VAC 50Hz, up to 100A charging current and 120–450VDC MPPT range.
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

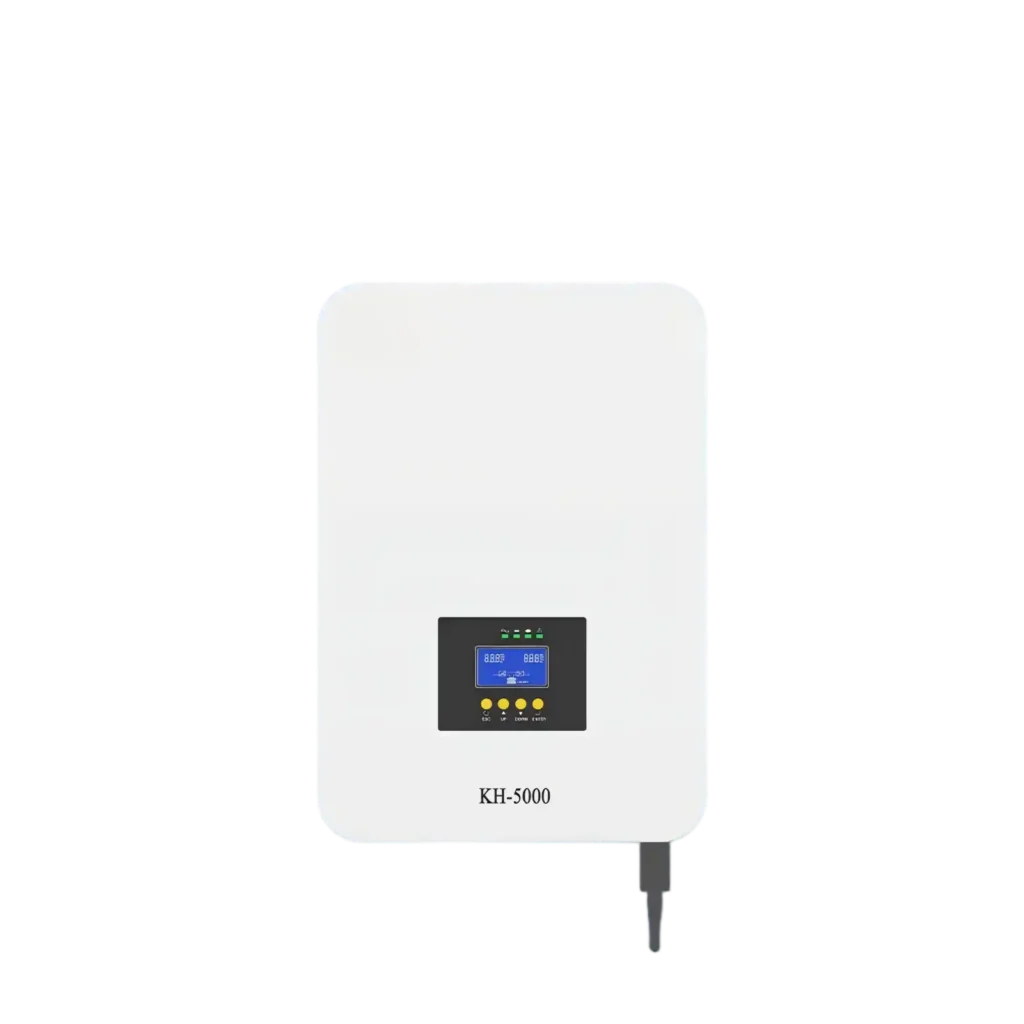

The KH5000 combines a 48VDC battery platform with AC and solar energy management for residential and off-grid power applications. Multiple rated power options allow the system to be matched to different project requirements.
The inverter delivers 210–230VAC at 50Hz with pure sine wave output, providing a suitable power format for compatible residential and electrical loads.
Rated output options of 1kW, 3kW, 5.5kW and 10kW allow the product family to support different installation scales without changing the overall hybrid energy concept.

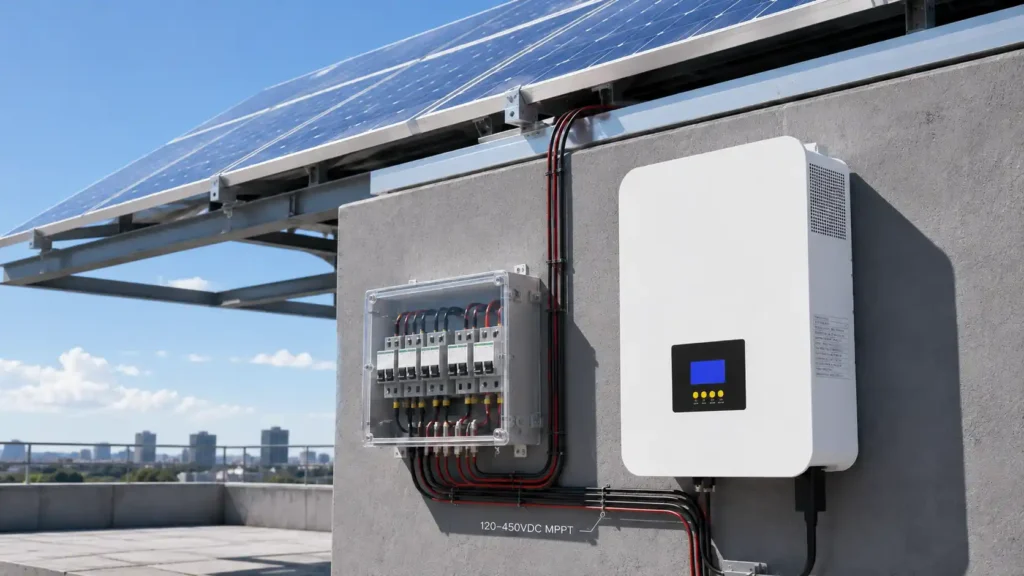

The solar input operates across a listed 120–450VDC MPPT range, supporting flexible photovoltaic array configuration within the specified operating window.

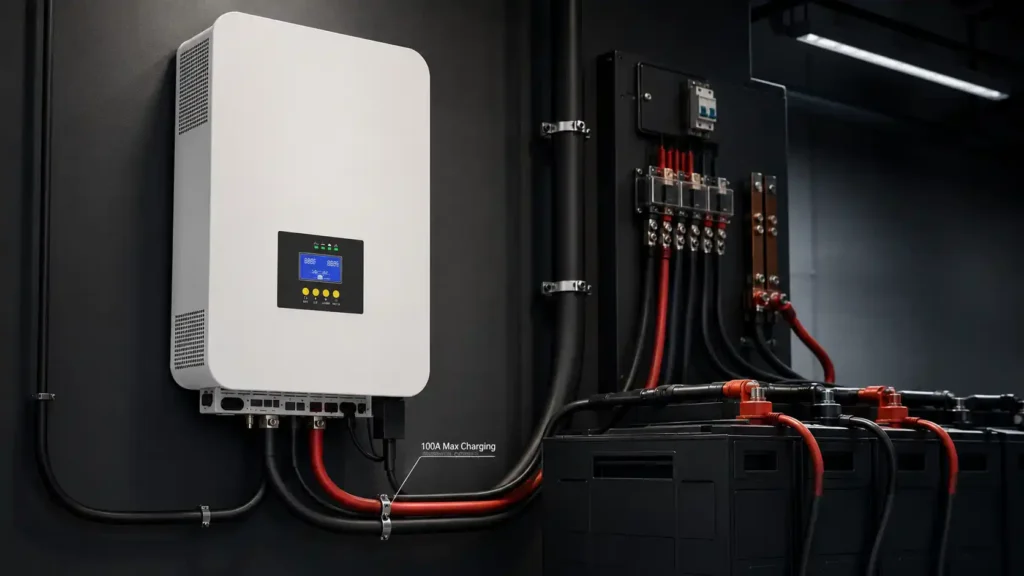

A maximum charging current of 100A supports high-current energy transfer between compatible charging sources and the connected battery system.

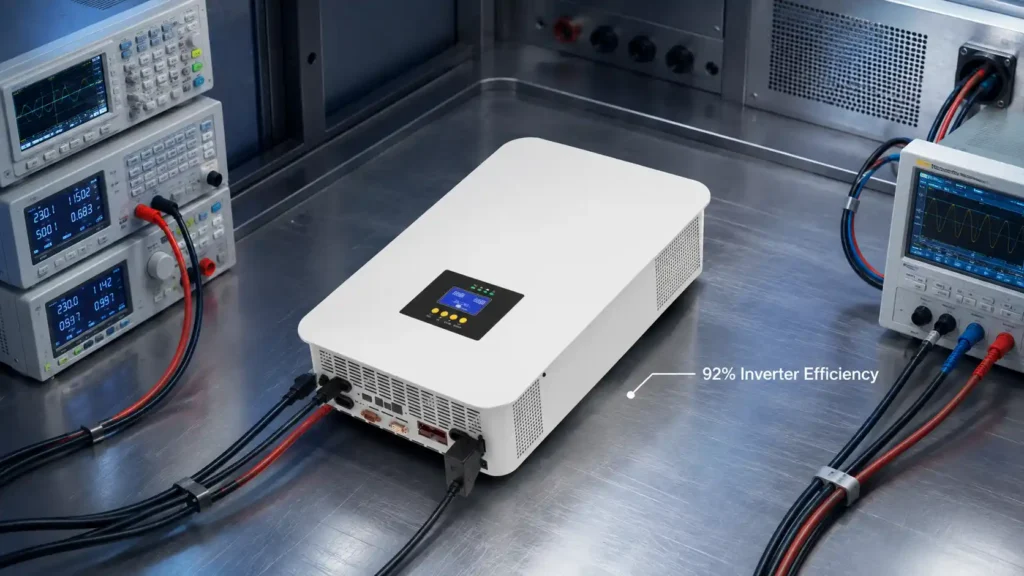

The listed inverter efficiency is 92%, supporting practical DC-to-AC energy conversion for hybrid solar and battery applications.

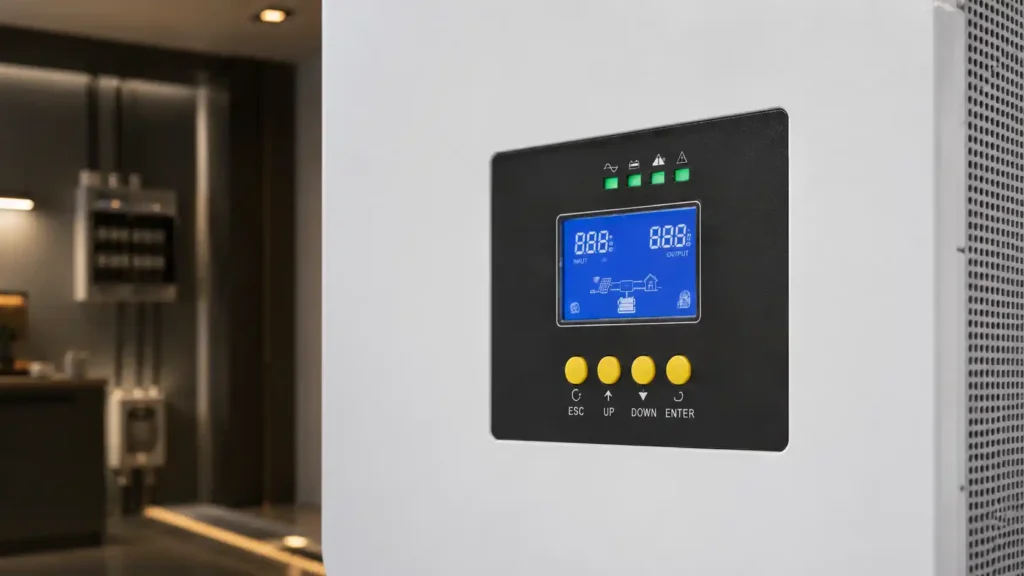

The front-mounted LCD and control buttons provide a direct interface for checking operating information and managing inverter settings from the installed unit.
The 530 × 335 × 150 mm enclosure weighs 28 kg and is designed for fixed installation. VoltCrave Power can adapt relevant specifications to different B2B project requirements.
| Parameter | Specification |
|---|---|
| Model | KH500 |
| Product Type | Hybrid Solar Inverter |
| DC System | 48VDC |
| Rated Output Power Options | 1kW / 3kW / 5.5kW / 10kW |
| AC Input Voltage | 230VAC |
| AC Output Voltage | 210–230VAC |
| Output Frequency | 50Hz |
| Output Waveform | Pure Sine Wave |
| Inverter Efficiency | 92% |
| Maximum Output Current | 100A |
| Maximum Charging Current | 100A |
| Solar MPPT Voltage Range | 120–450VDC |
| DC Low-Voltage Warning | 44.8VDC |
| Product Size | 530 × 335 × 150 mm |
| Weight | 28 kg |
