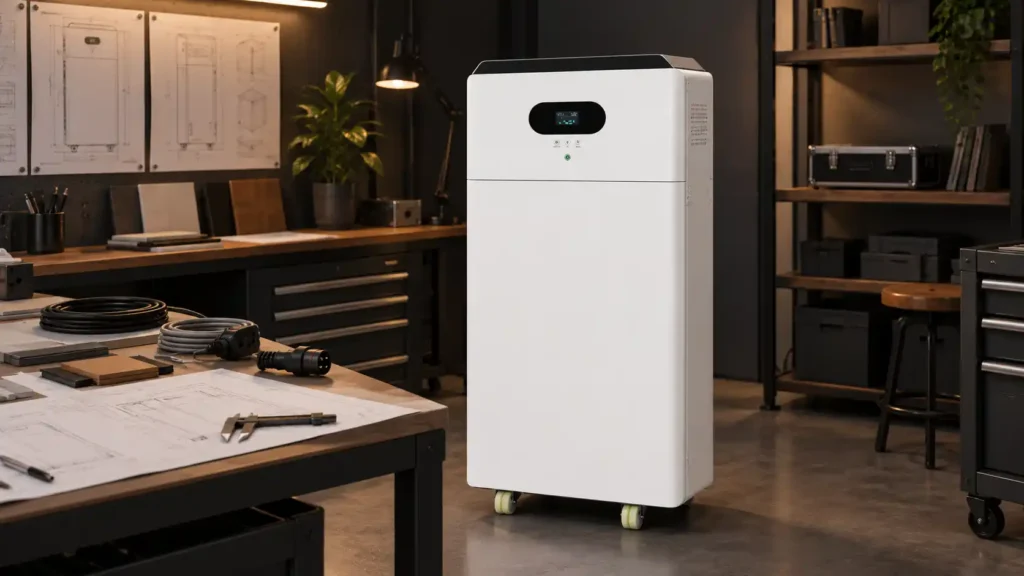

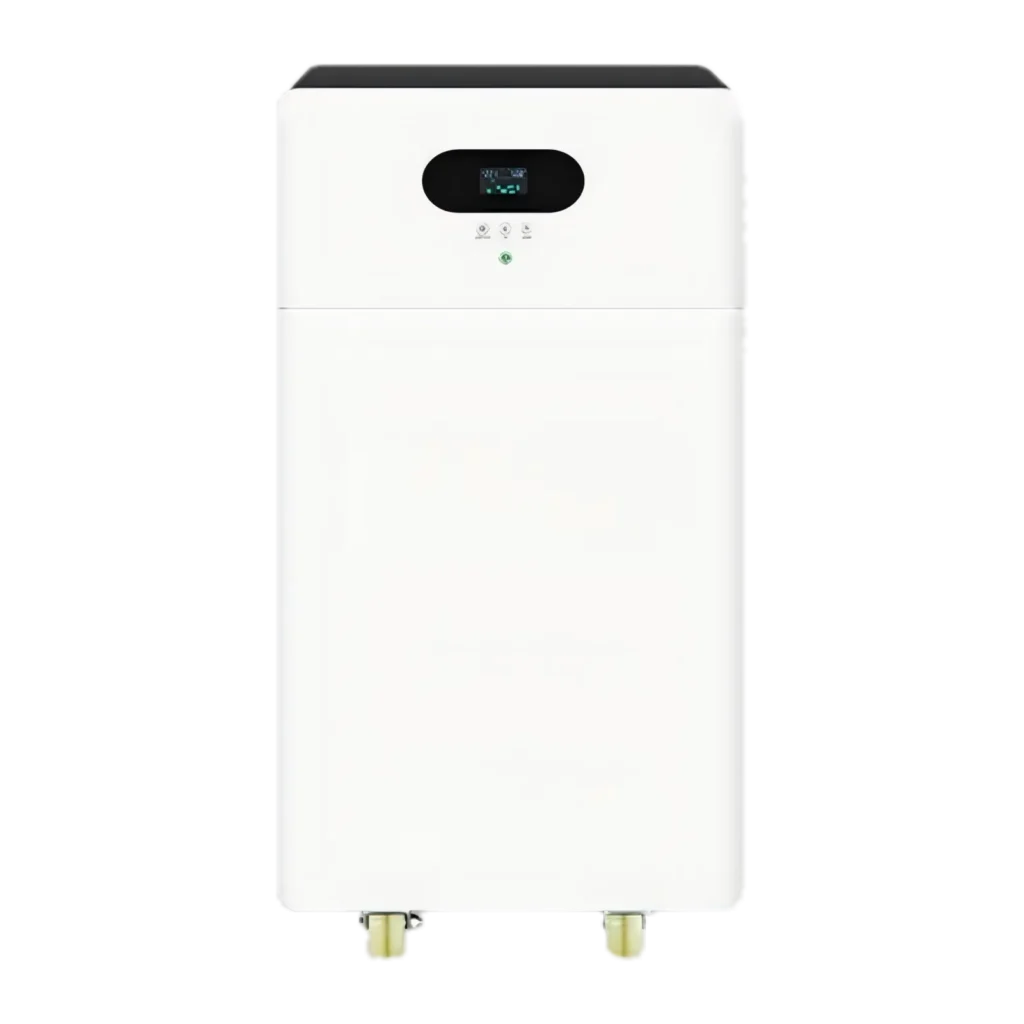

KKB 2560Wh residential solar energy system with 3.6kW hybrid pure sine wave inverter, 25.6V 100Ah battery, MPPT control and 220V dual output.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

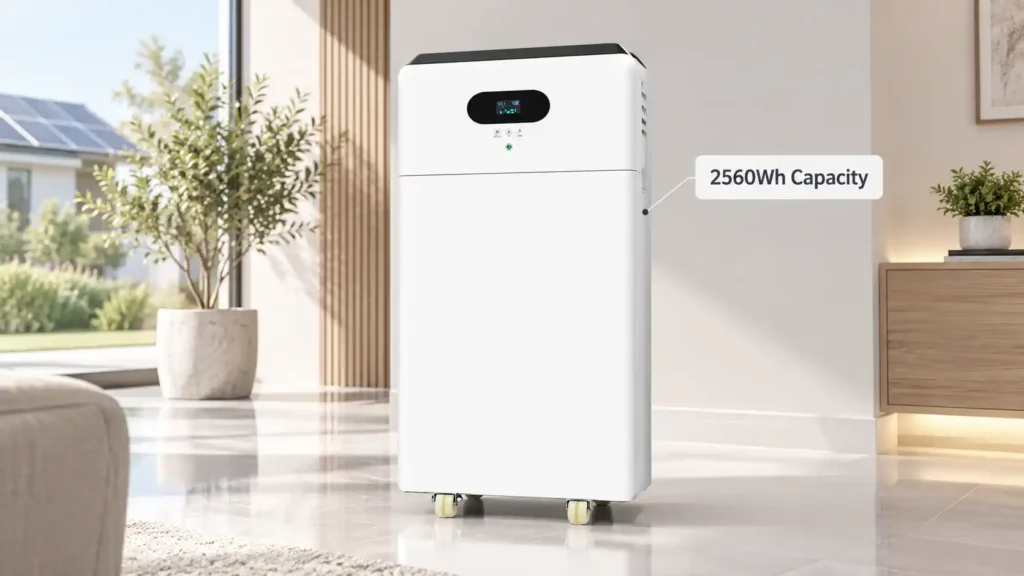

The current configuration provides a confirmed 2560Wh battery capacity for residential solar energy storage, backup power and daily household energy applications.
A confirmed 25.6V 100Ah battery configuration forms the energy-storage platform without adding unsupported chemistry or calculated performance claims.

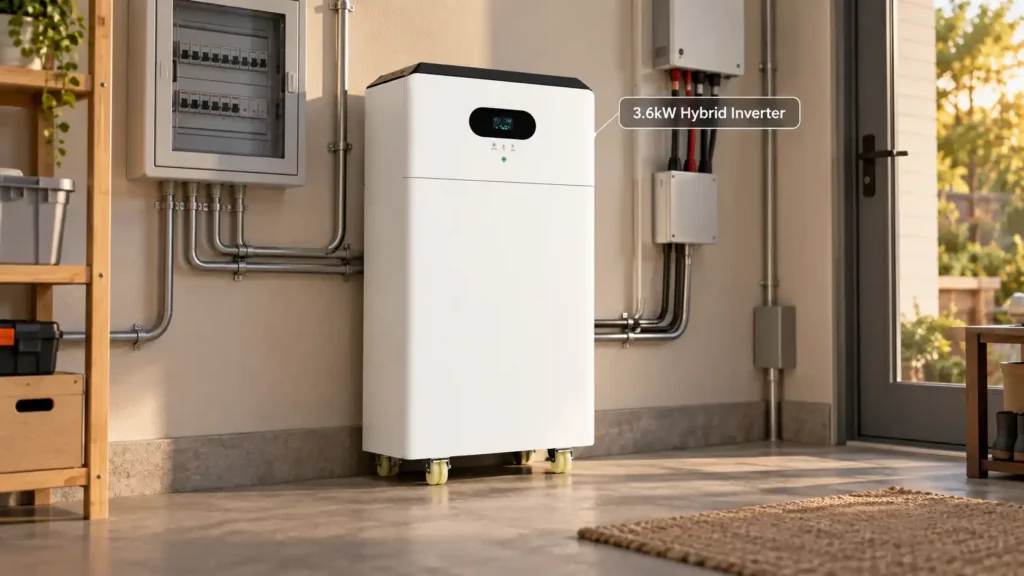

The integrated 3.6kW hybrid solar inverter combines residential energy storage and AC power conversion within one compact system enclosure.
The system provides a pure sine wave inverter with confirmed 220V AC output for compatible household electrical equipment and residential applications.

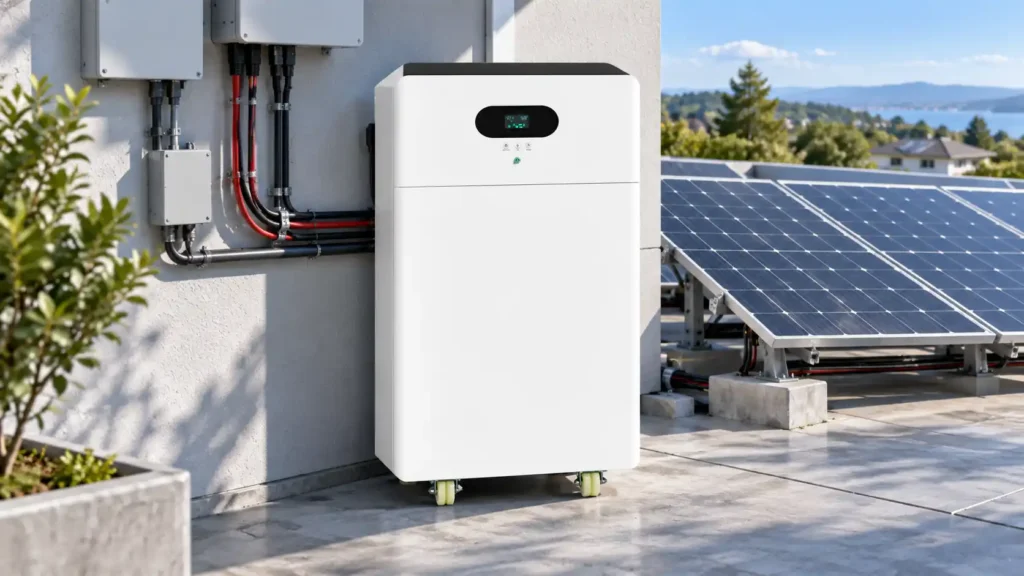

An integrated MPPT controller supports photovoltaic charging management and improves system integration with residential solar generation.
The confirmed dual-output design provides additional flexibility for supported household power distribution and backup-energy configurations.
The system supports a confirmed 50–60Hz output frequency range, allowing configuration for different residential electrical project requirements.
The integrated floor-standing enclosure combines the battery, inverter, display and electrical control functions, with configuration available according to project requirements.
| Parameter | Specification |
|---|---|
| Model | KKB Intelligent Solar Energy System |
| Energy Capacity | 2560Wh |
| Battery Voltage | 25.6V |
| Battery Capacity | 100Ah |
| Inverter Power | 3.6kW |
| Load Power | 3kW |
| Inverter Type | Hybrid Solar Inverter |
| Waveform | Pure Sine Wave |
| Controller Type | MPPT |
| Output Voltage | 220V |
| Output Frequency | 50–60Hz |
| Feature | Dual Output |
| Application | Home Solar Energy Generation |
| Structure | Floor-Standing Integrated Cabinet |
| Certification | CE |
| Warranty | 5 Years |
| Customization | Available According to Project Requirements |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
