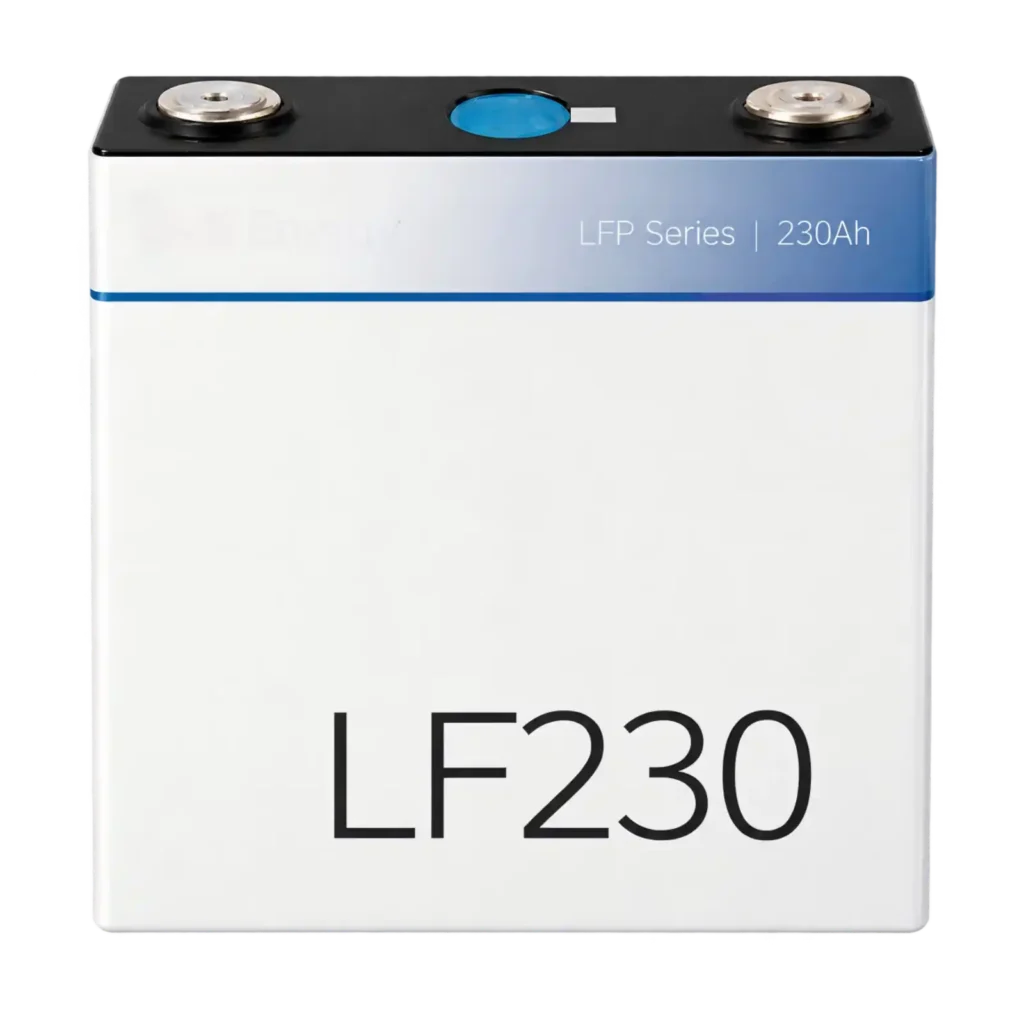

LF230 230Ah LiFePO4 Prismatic Battery Cell

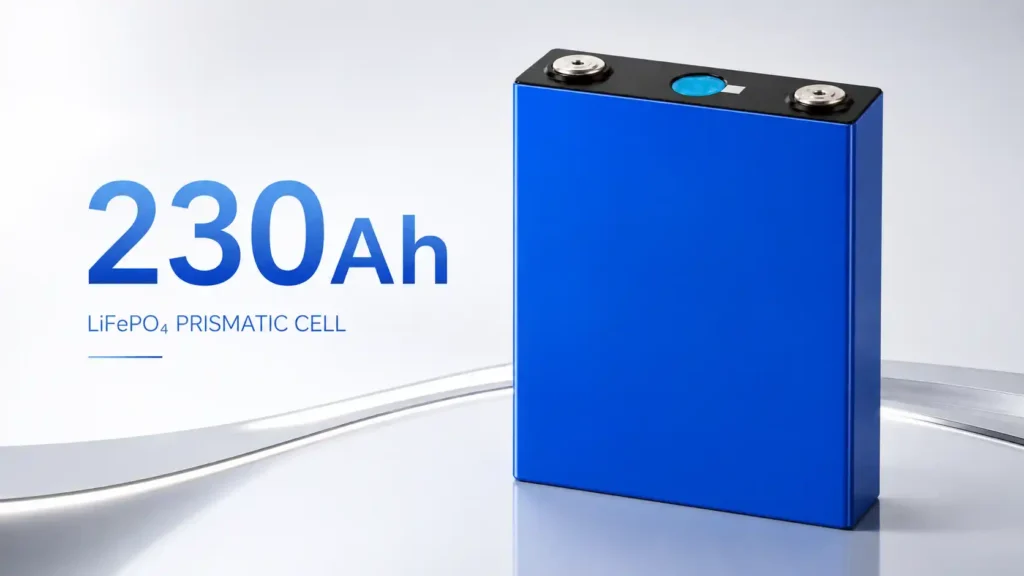

230Ah High-Capacity Prismatic Cell

The LF230 provides 230Ah capacity in a compact prismatic format, supporting battery systems that require high-capacity cell integration and efficient pack design.

115A Standard Charge and Discharge Current

The cell supports a standard charge current of 115A (0.5C) and a standard discharge current of 115A (0.5C) for defined battery system integration.

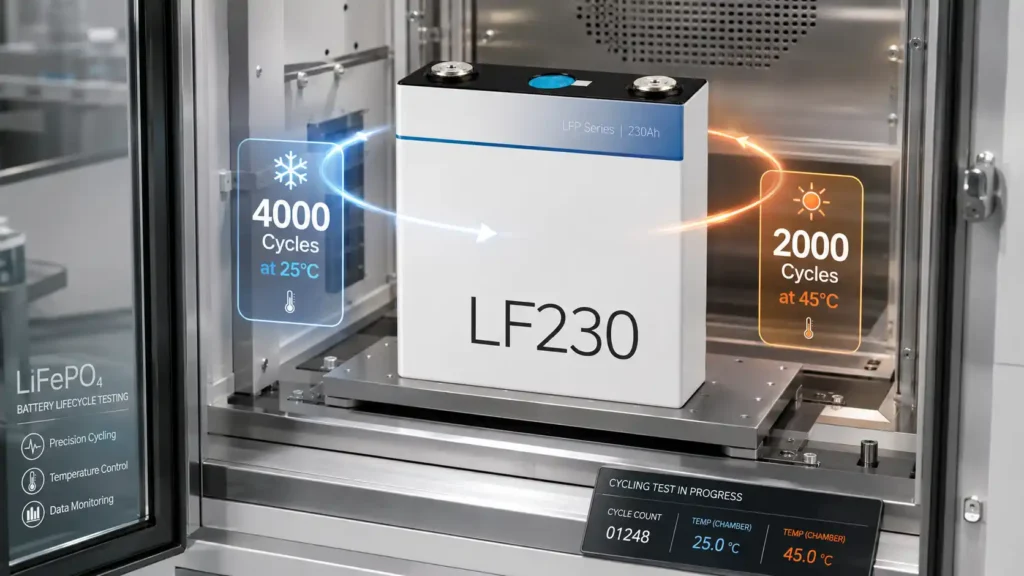

Up to 4000 Cycles at 25°C

The specified cycle life reaches 4000 cycles at 25°C, while the specification lists 2000 cycles at 45°C.

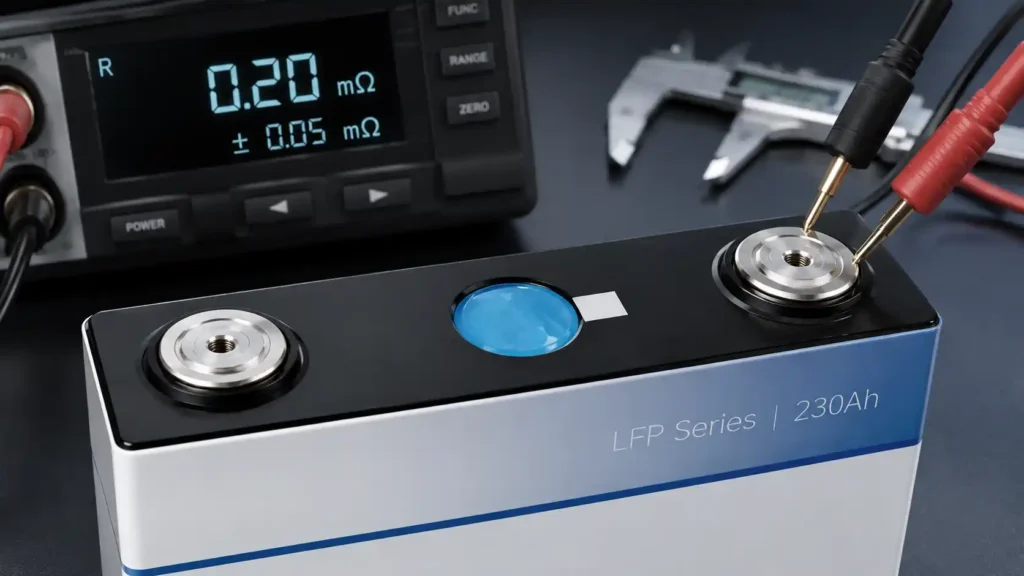

Low 0.20mΩ Internal Resistance

An initial internal resistance of 0.20mΩ ± 0.05 supports efficient electrical performance within compatible battery module and pack designs.

Wide Temperature Operating Range

The cell is specified for charging from -10°C to 65°C and discharging from -35°C to 65°C, supporting use across varied operating environments.

Compact Prismatic Pack Integration

With dimensions of 173.93 × 53.85 × 207.3 mm and a weight of 4140 ± 124g, the cell provides a structured rectangular form for organized battery module assembly.

Built for Mobility and Industrial Applications

The LF230 is suitable for marine systems, golf carts, e-bikes and scooters, electric vehicles, and electric forklifts.

Customizable for B2B Battery Projects

VoltCrave Power supports customer-specific battery specifications and solution customization for different system integration and application requirements.
