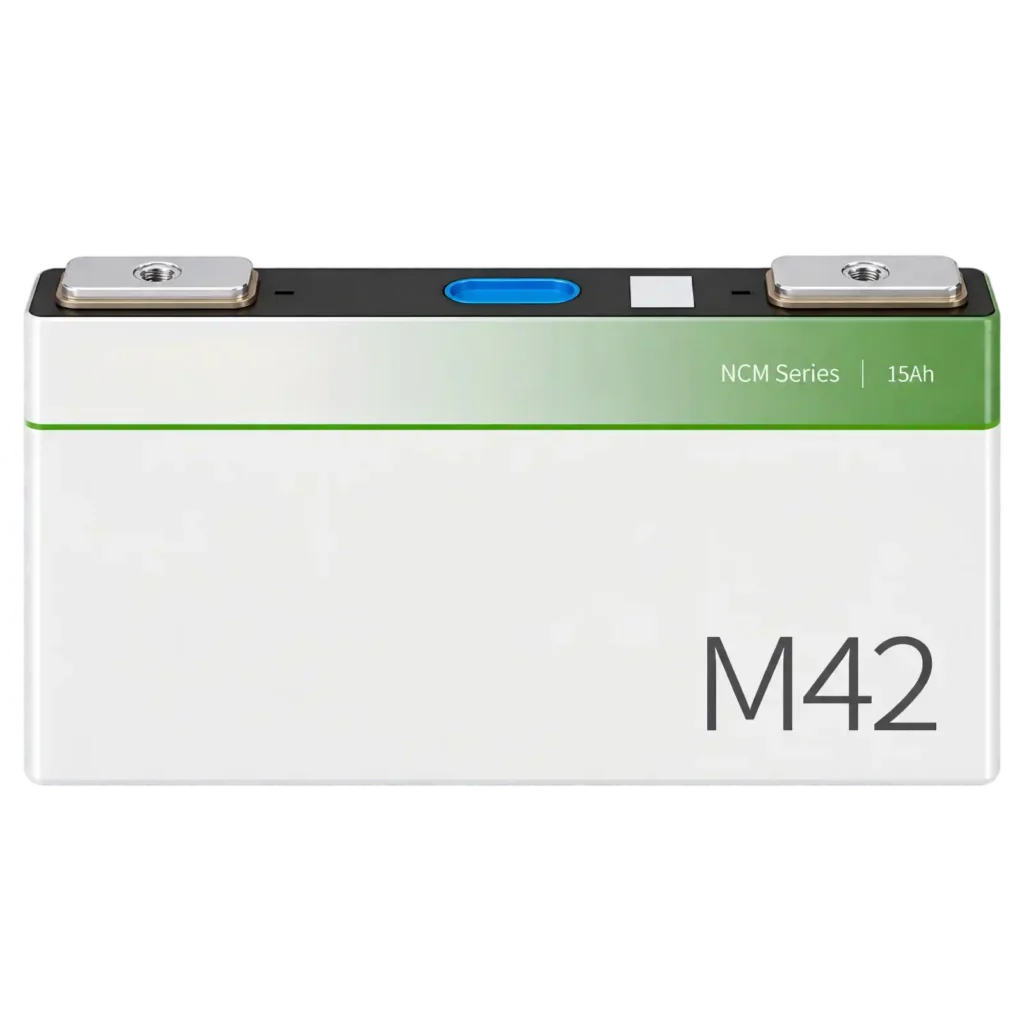

M42 NCM battery cell with 15Ah capacity, 3.66V nominal voltage, 54.528Wh energy and 2000-cycle life for electric mobility applications.
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

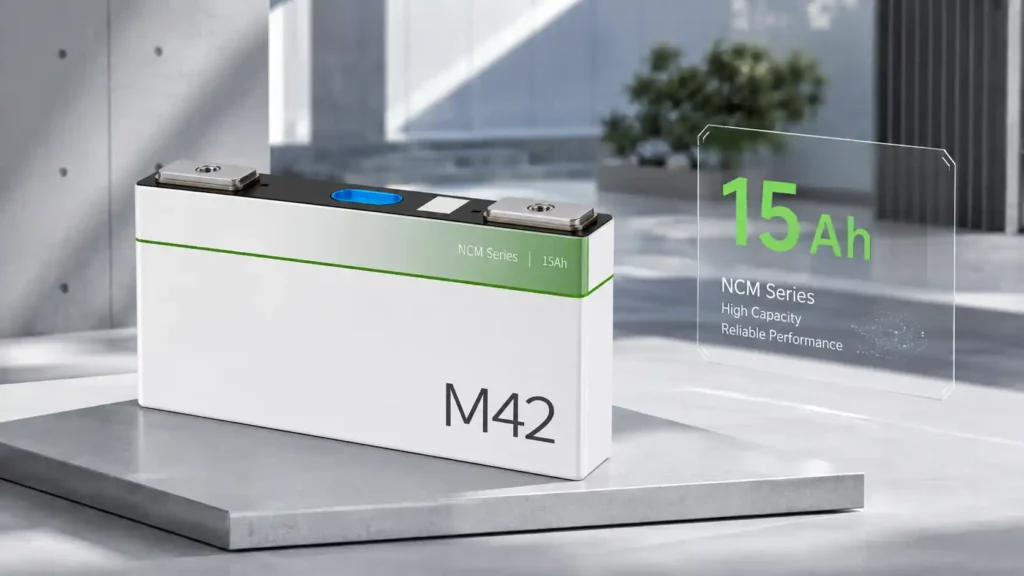

The M42 provides 15Ah rated capacity for compact electric mobility battery systems.
The 3.66V nominal voltage supports integration into rechargeable NCM battery packs.
The M42 delivers 54.528Wh nominal energy for reliable power delivery.

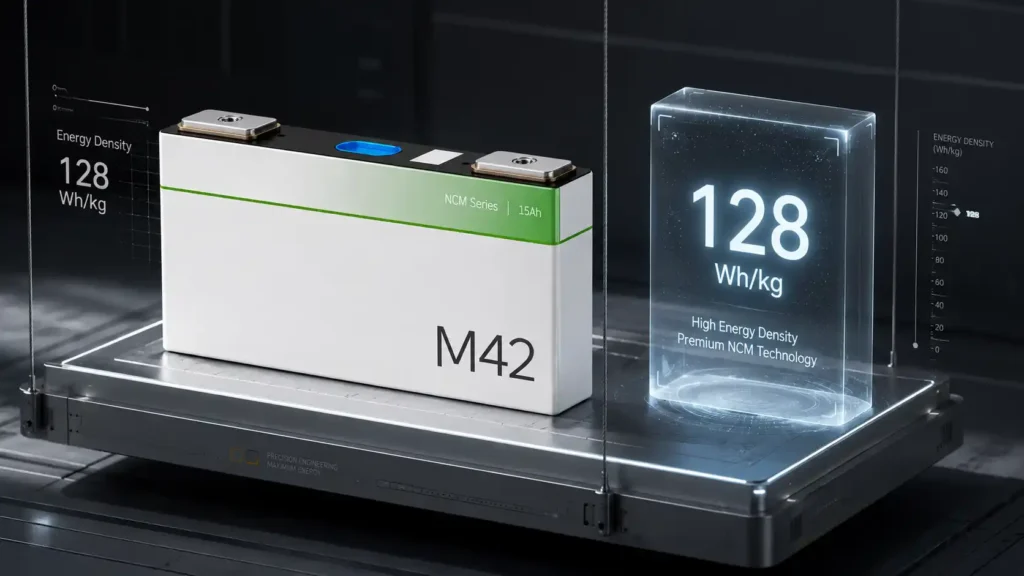

With an energy density of 128Wh/kg, the M42 balances energy output with a compact cell format.

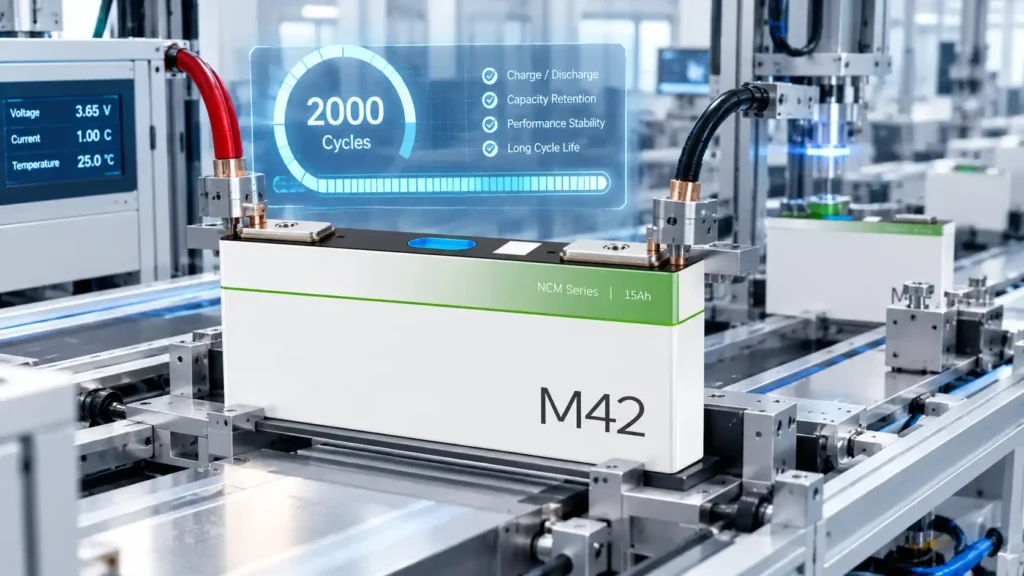

The cell is rated for 2000 cycles, supporting long-term rechargeable applications.
Initial AC resistance of ≤0.3mΩ supports efficient electrical performance.

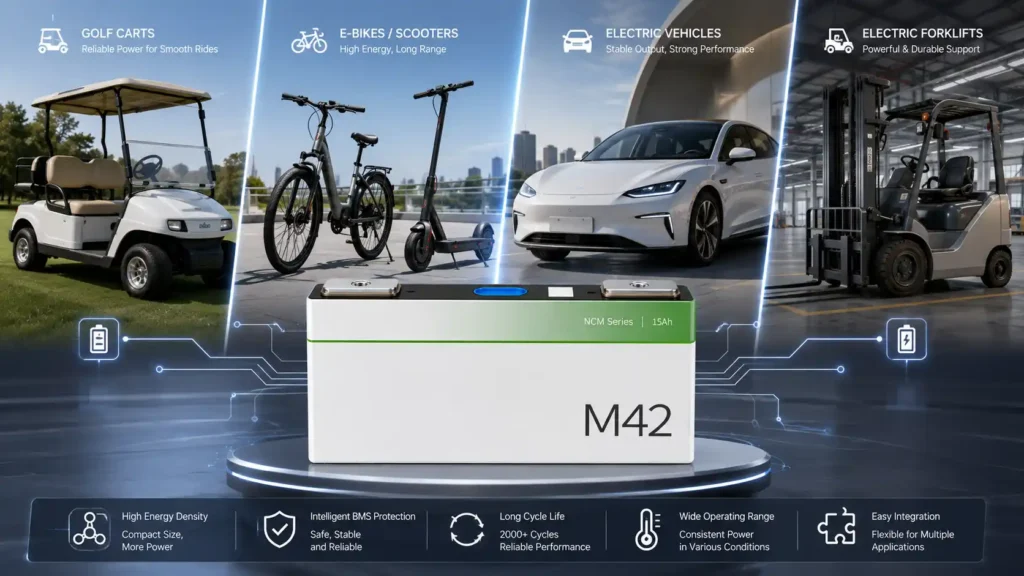

The M42 is suitable for golf carts, electric bicycles and scooters, electric vehicles, and electric forklifts.
VoltCrave Power supports customized battery specifications to meet different B2B project requirements.
| Parameter | Specification |
|---|---|
| Model | M42 |
| Battery Type | NCM Battery Cell |
| Rated Capacity | 15Ah |
| Nominal Voltage | 3.66V |
| Nominal Energy | 54.528Wh |
| Energy Density | 128Wh/kg |
| Cycle Life | 2000 Cycles |
| Initial AC Resistance | ≤0.3mΩ |
| Working Temperature | 25°C |
| Storage Temperature | 0°C to 45°C (3 months) |
| Weight | 426g |
| Max Loading Quantity | 4 Cells |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
