BP120B portable power station with 1120Wh LiFePO4 battery, 1200W pure sine wave output, 2400W surge, 300W MPPT solar input and 100W USB-C.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution

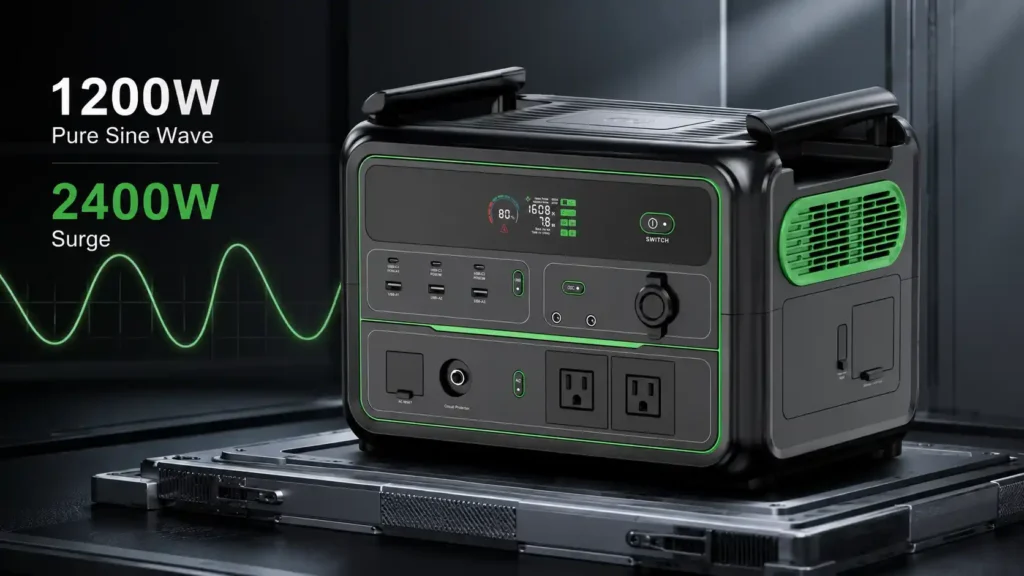

The BP120B delivers 1200W continuous pure sine wave AC power with up to 2400W surge capability. It is designed to support compatible appliances and electronics in outdoor and backup-power scenarios.
A 1120Wh, 22.4V 50Ah LiFePO4 battery provides substantial portable energy capacity. The specified battery lifecycle exceeds 2000 cycles to 80% available capacity.
The BP120B supports up to 800W AC input for convenient high-power recharging. This makes the system suitable for applications where faster turnaround between uses is important.

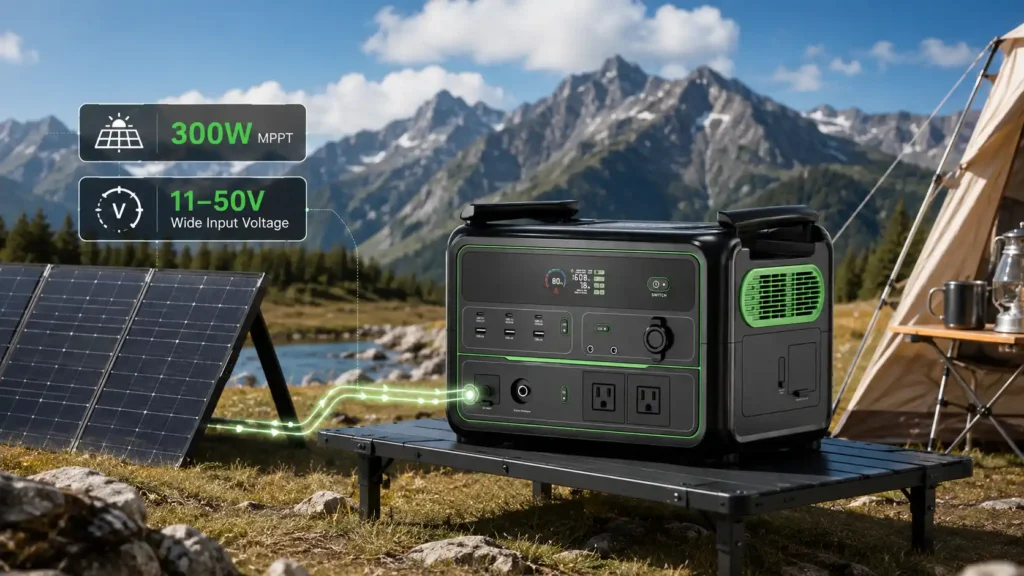

Up to 300W DC/PV input is supported through an integrated MPPT charging system, with an 11–50V and 8.5A input specification. This provides a practical charging option for outdoor and off-grid applications.

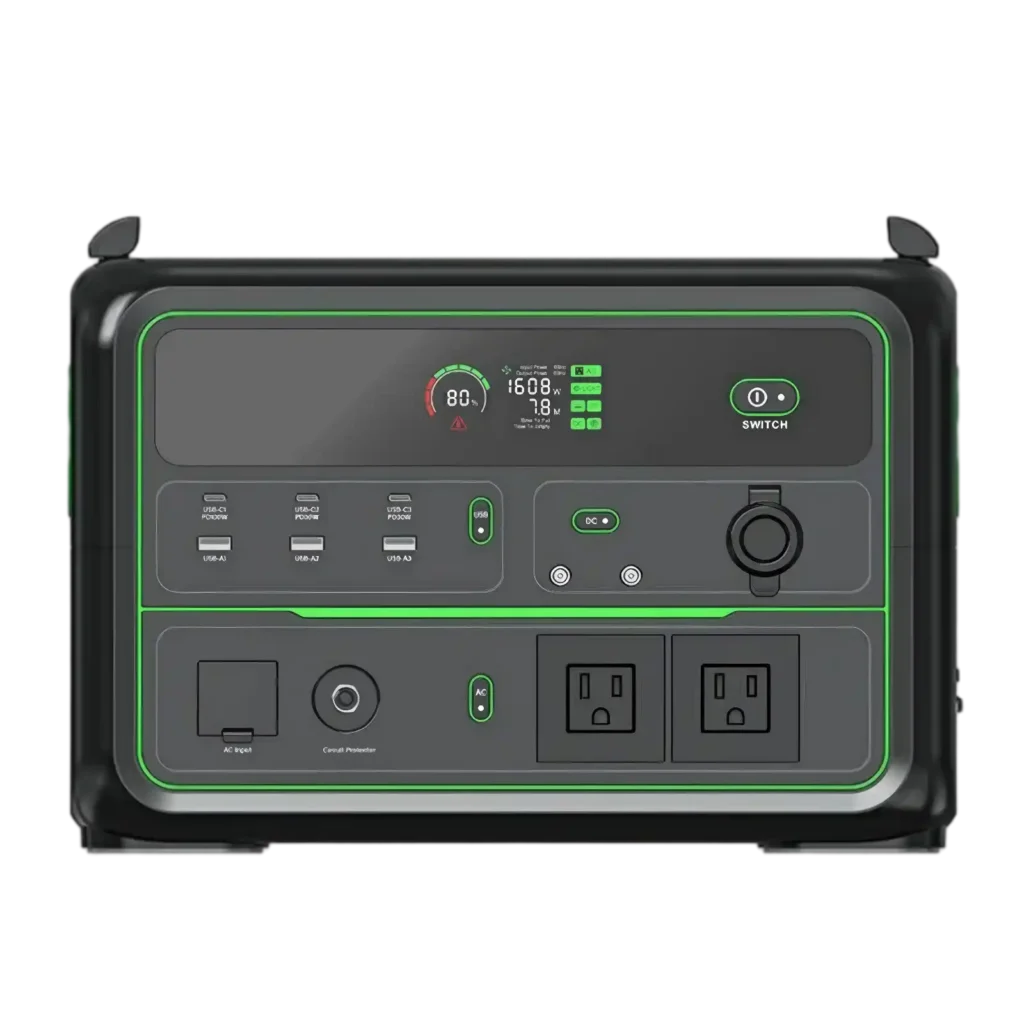

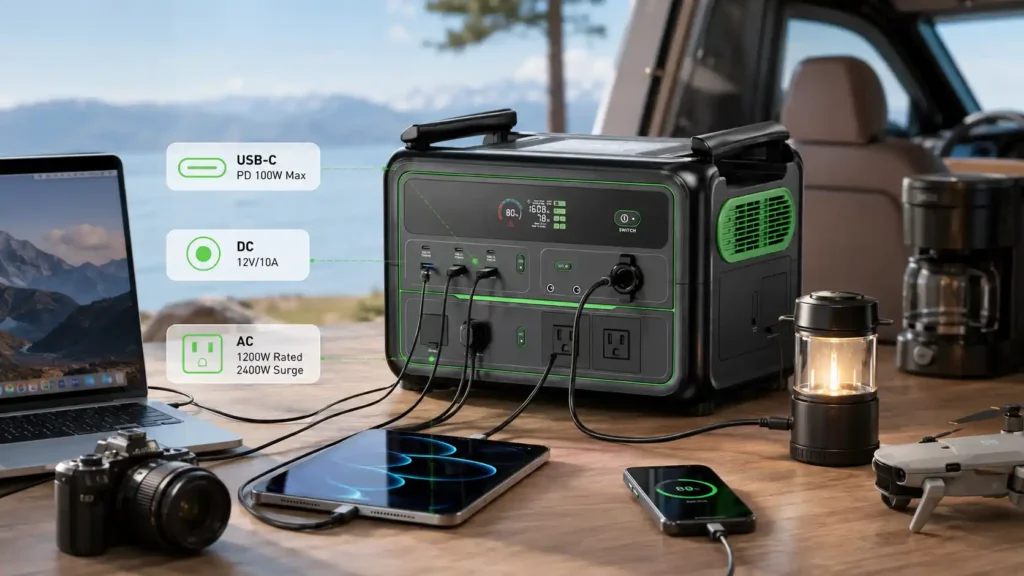

Multiple interfaces include dual AC outlets, three USB-C outputs, three USB-A outputs, a 12V/10A vehicle output and two 12V/5A DC outputs. This configuration enables multiple compatible devices to connect to one portable power system.
One USB-C interface delivers up to 100W, while two additional USB-C ports support up to 30W each. The multi-port design provides flexible DC charging for compatible mobile electronics.

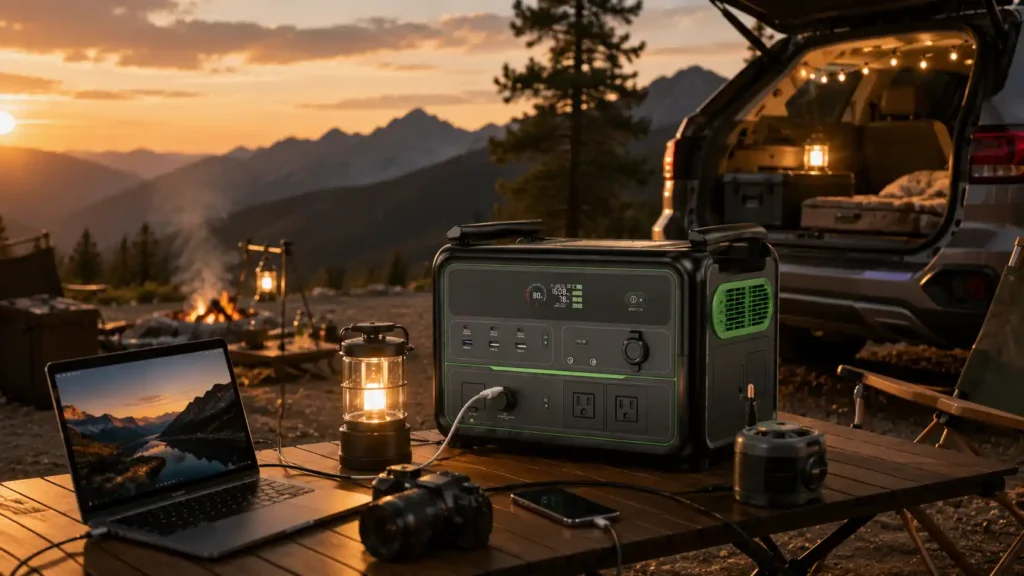

The 351 × 253 × 260mm enclosure weighs approximately 12kg and incorporates carrying handles for transportation. The system is suitable for outdoor travel, field work and emergency backup applications.
VoltCrave Power can adapt AC output standards, plug configurations and housing colors for different customer and regional requirements. The BP120B platform is suitable for OEM-oriented portable energy projects.
| Parameter | Specification |
|---|---|
| Model | BP120B |
| Battery Capacity | 1120Wh |
| Battery Voltage / Capacity | 22.4V / 50Ah |
| Battery Type | LiFePO4 |
| Cycle Life | 2000+ Cycles to 80% Available Capacity |
| Rated AC Output | 1200W |
| Surge Power | 2400W |
| Inverter Type | Pure Sine Wave |
| AC Output | 2 × AC Outlets |
| AC Output Voltage | 120V / 230V |
| Output Frequency | 50 / 60Hz |
| USB-C Output | 1 × 100W Max + 2 × 30W Max |
| USB-A Output | 1 × 22.5W Max + 2 × 12W |
| DC Output | 1 × 12V/10A Car + 2 × 12V/5A DC |
| AC Input | 800W Max |
| Solar Input | 300W Max, MPPT |
| Solar Input Range | 11–50V, 8.5A |
| LED Light | 3W |
| Dimensions | 351 × 253 × 260mm |
| Weight | 12kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 45°C |
| Customization | AC Output Standards, Plug Configuration, Housing Color |
Representative safety, transport and market-compliance documents supporting qualified VoltCrave Power battery solutions for international B2B projects. Certification availability varies by product model and target market — contact VoltCrave Power to confirm the applicable compliance documents for your selected product.
Safety
Market Compliance
Transport
Environmental
Safety Documentation
Cell Safety
No download files have been uploaded yet.
MANUFACTURING
End-to-end custom lithium battery manufacturing — from cell selection and BMS programming to enclosure design, branding, and global certification
Custom LiFePO4 battery enclosure dimensions, colors, terminal layouts, and connector types. Tailor voltage (12V / 24V / 48V) and capacity to your target market requirements.
Full OEM battery branding: laser-engraved logos, custom label nameplates, silk-screened enclosures, and exclusive retail packaging. Your brand, our lithium battery technology.
We assist distributors with CE, UL 1973, IEC 62619, UN38.3, and RoHS compliance for lithium battery imports. Complete technical documentation, MSDS, and test reports included for customs clearance.
