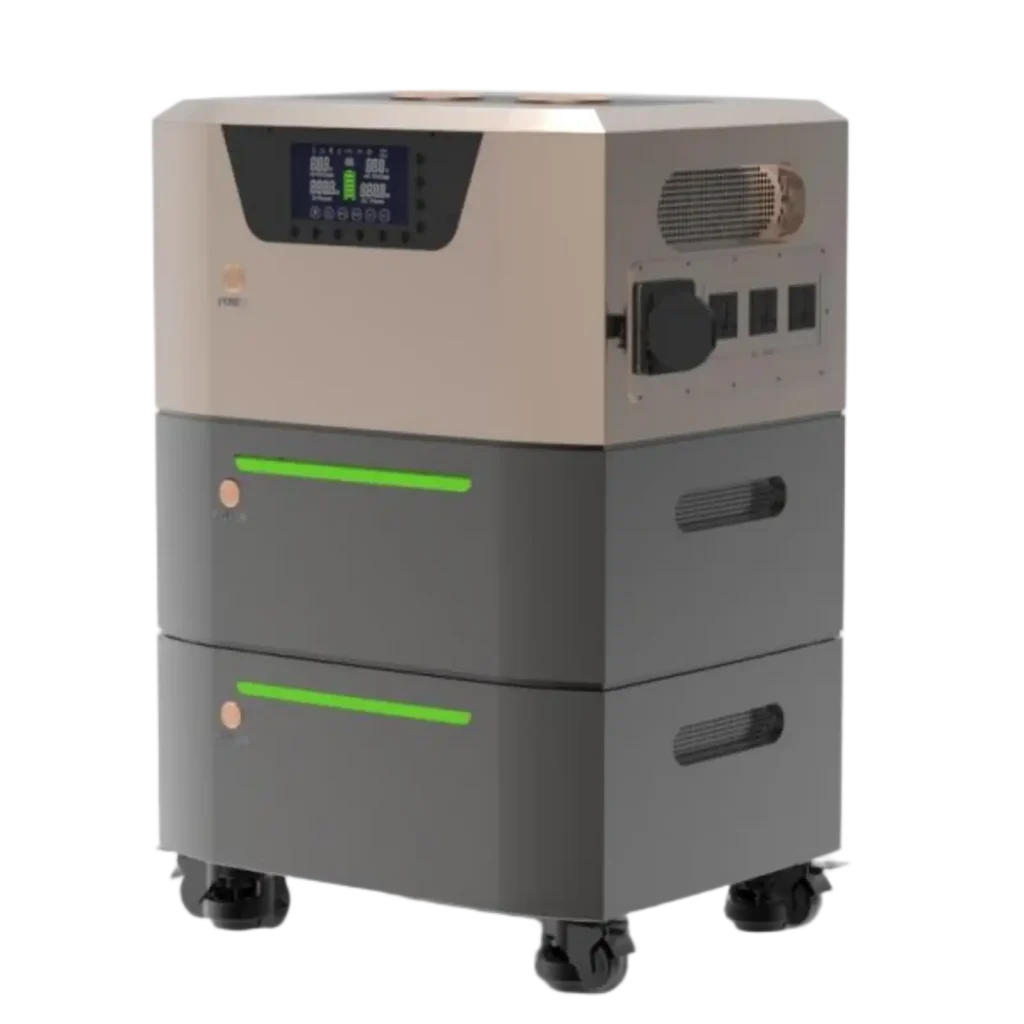

10KW stackable energy storage system with 10.24KWh 51.2V LiFePO4 battery, 120–450VDC MPPT, 10ms transfer and intelligent monitoring.
360° SAFETY
Automotive-grade battery management system with sub-100µs fault response — protecting your LiFePO4 home battery, your property, and your family around the clock
PRODUCT DETAILS
Complete product details — specifications, images, FAQ, and downloadable resources for this VoltCrave power solution
The system integrates a 10KW hybrid inverter for residential energy storage, solar integration and backup applications. Its all-in-one architecture combines power conversion and battery storage in a compact stackable system.
Two 51.2V 100Ah battery modules provide a total energy capacity of 10.24KWh. The LiFePO4 configuration is designed for repeated residential and off-grid energy-storage use.
The integrated hybrid inverter supports a 120–450VDC MPPT voltage range for photovoltaic integration. Solar energy can be managed together with battery and mains power through one system.
The LiFePO4 battery is specified for more than 6000 cycles with an 80% depth of discharge. Maximum continuous discharge current reaches 100A.
A 10ms transfer time enables rapid switching during mains power interruptions. This supports residential backup applications and compatible essential electrical loads.
RS232, RS485, CAN and WiFi communication provide multiple options for system monitoring and integration. The upper inverter module also incorporates an LCD interface for local operating information.
Active cooling supports system thermal management across an operating temperature range of -20°C to 60°C, with specified noise below 50dB. Four caster wheels simplify positioning during installation and maintenance.
VoltCrave Power provides configurable stackable energy-storage systems for B2B residential and project applications. System specifications and configurations can be customized according to customer requirements.
| Parameter | Specification |
|---|---|
| System Type | Stackable Energy Storage System |
| Inverter | 10KW Hybrid Inverter |
| Battery Type | LiFePO4 |
| Battery Energy | 10.24KWh |
| Nominal Voltage | 51.2V |
| Battery Configuration | 2 × 100Ah Modules |
| PV MPPT Voltage Range | 120–450VDC |
| AC Output Voltage | 210–230V AC |
| Output Frequency | 50Hz |
| Transfer Time | 10ms |
| Maximum Discharge Current | 100A Continuous |
| Maximum Charge Current | 100A |
| Continuous Charge Current | 40A |
| Depth of Discharge | 80% |
| Cycle Life | 6000+ Cycles |
| Communication | RS232 / RS485 / CAN / WiFi |
| Cooling | Active Cooling |
| Noise | <50dB |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | 0°C to 45°C |
| Battery Cell Configuration | LiFePO4, 16S1P |
| Warranty | 5 Years |
| Mobility | Four Caster Wheels |
| Customization | Specifications and Configurations According to Customer Requirements |
