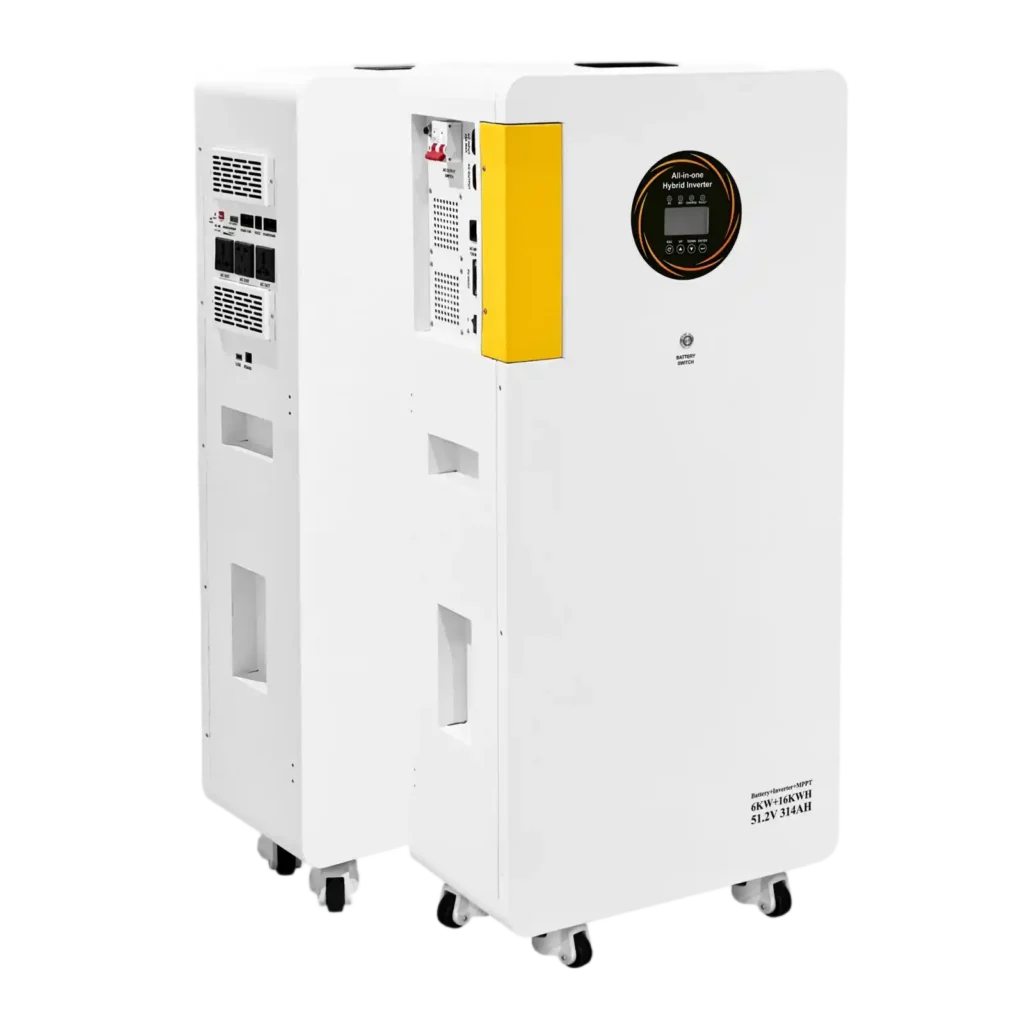

01 · Overview
The 10.24kWh LiFePO4 All-in-One ESS is an integrated residential energy storage solution combining a 6kW Hybrid Inverter and a high-capacity lithium iron phosphate battery pack in one compact cabinet. Designed for modern solar energy applications, this all-in-one power storage system provides reliable electricity storage, efficient energy conversion, and convenient installation.
This 10.24kWh home battery storage system is designed for users who require stable backup power and improved energy independence. By integrating battery storage and inverter technology, the system simplifies installation while delivering an efficient solution for residential solar energy management.
The system is suitable for homeowners, solar installers, distributors, and energy solution providers searching for reliable energy storage products. With professional manufacturing experience and customized service capability, VoltCrave Power provides stable battery solutions for global residential energy markets.
For B2B customers, this 10.24kWh LiFePO4 All-in-One ESS offers an integrated design, reliable battery technology, and flexible customization options. It is suitable for residential backup power projects, solar storage systems, and distributed energy applications.
02 · Core Features
10.24kWh LiFePO4 Battery Capacity
The system is equipped with a 10.24kWh lithium iron phosphate battery pack, providing reliable energy storage capacity for residential electricity management and backup applications.
Key features include:
- 10.24kWh battery capacity
- Lithium Iron Phosphate battery chemistry
- 51.2V battery voltage
- 200Ah battery capacity
- Stable energy storage performance
The LiFePO4 battery technology provides excellent safety characteristics and long-term stability, making it suitable for residential energy storage environments.
6kW Hybrid Inverter Output Capability
The integrated 6kW Hybrid Inverter manages energy conversion between solar input, battery storage, and household electricity demand.
Key features include:
- 6kW inverter output power
- 220V-240V output voltage
- 50Hz/60Hz frequency support
- AC and DC simultaneous input capability
The hybrid inverter design improves energy flexibility by supporting multiple charging and power management methods.
Flexible Solar Charging Methods
The 10.24kWh home battery storage system supports solar charging with a wide PV voltage range, allowing compatibility with different solar installation configurations.
Charging advantages include:
- PV charging voltage range of 60-450V
- Optimal PV voltage range of 300-400V
- Solar energy storage capability
- Integrated charging management
This flexible charging design helps users maximize renewable energy utilization and improve household energy efficiency.

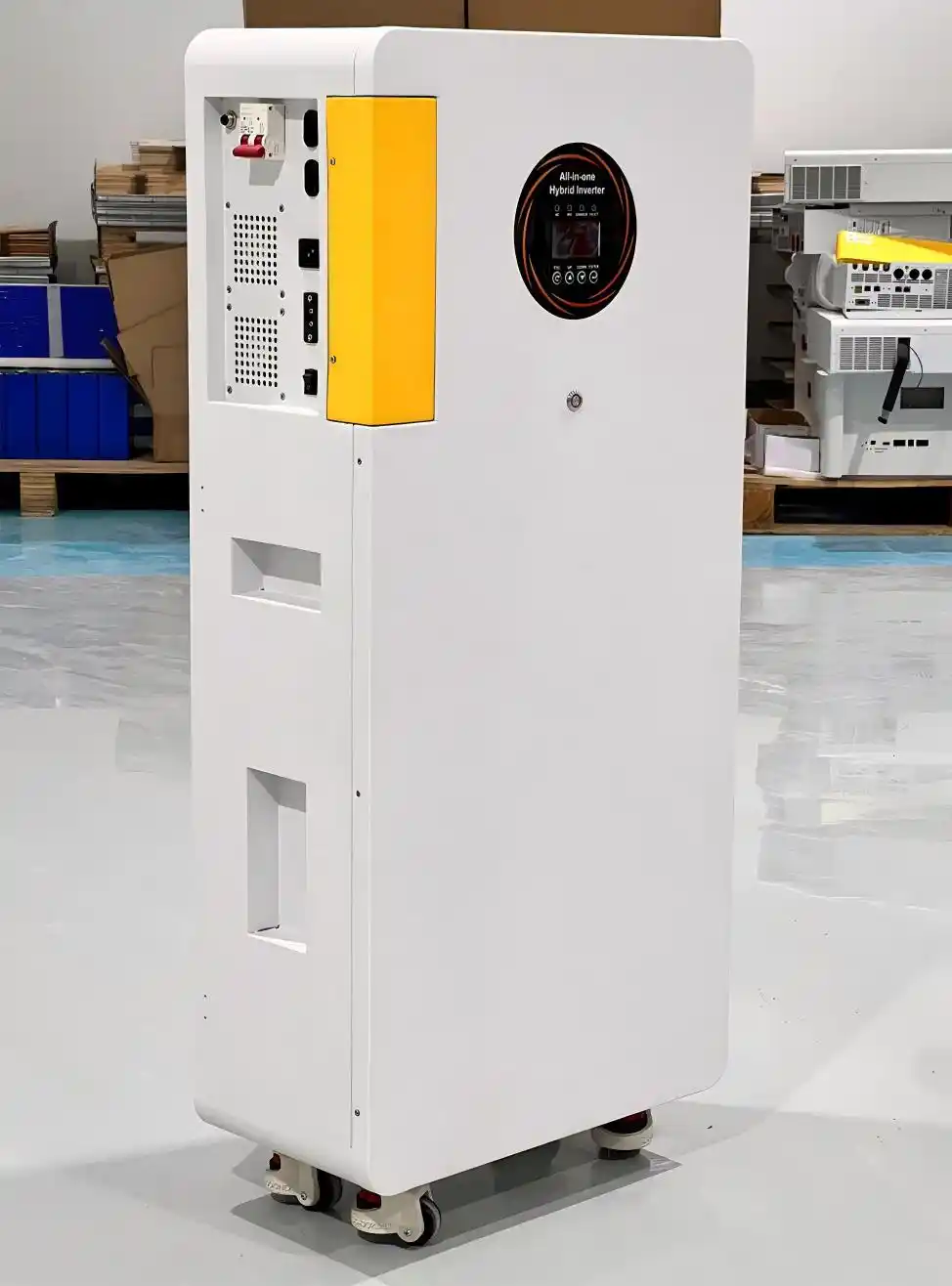

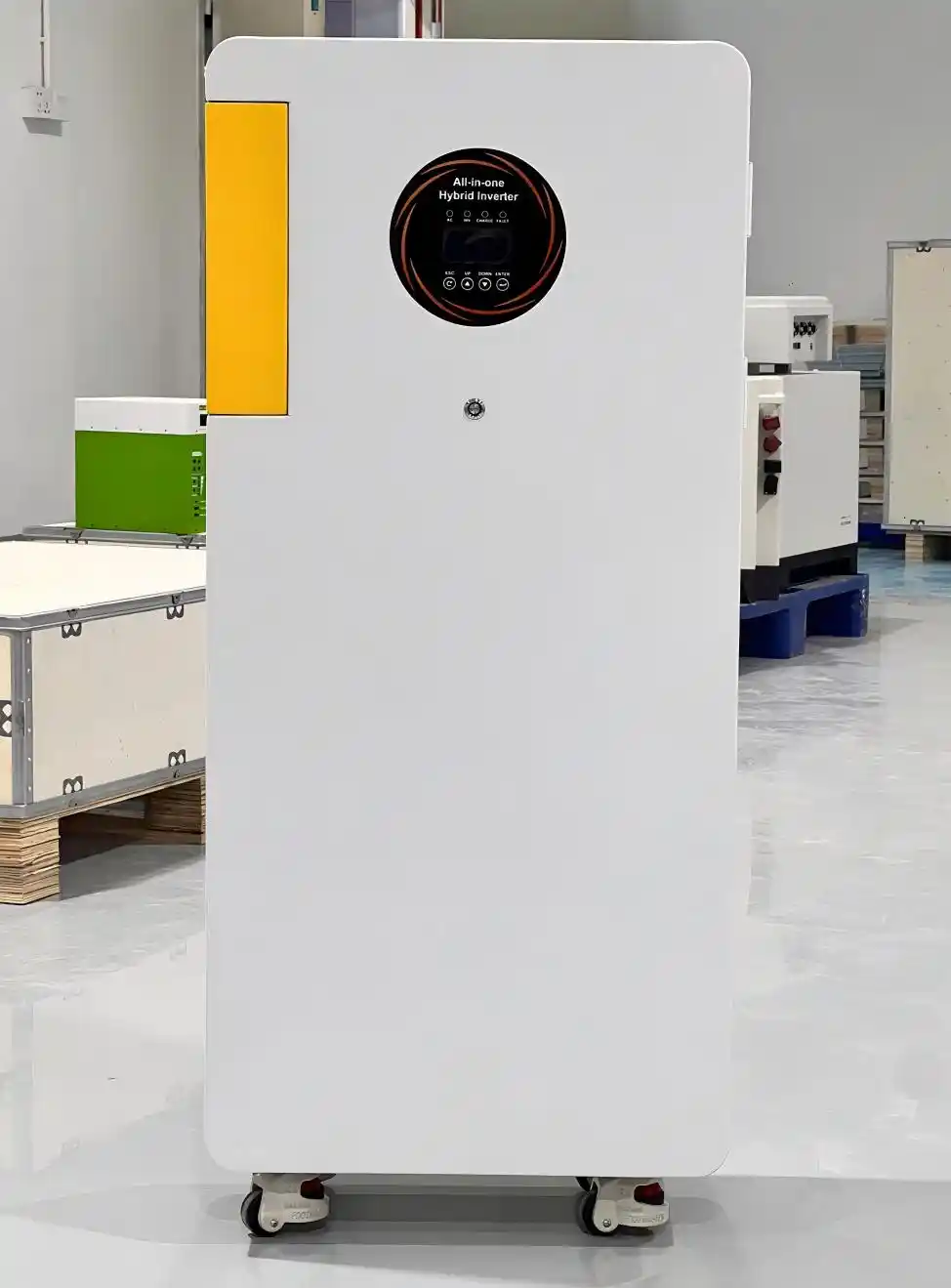

All-in-One Cabinet Design
The integrated cabinet combines the battery pack and inverter into a single system, reducing installation complexity and improving deployment efficiency.
Design advantages include:
- Integrated energy storage cabinet
- Mobile roller design
- Space-saving structure
- Convenient transportation and installation
The all-in-one design provides an efficient solution compared with traditional separated battery and inverter systems.
Residential and Commercial Energy Applications
The 10.24kWh LiFePO4 All-in-One ESS is designed for various energy storage applications.
Applications include:
- Residential backup power
- Solar energy storage systems
- Home energy management
- Distributed energy projects
The system provides reliable power support for customers requiring stable and efficient energy storage.
03 · BMS Protection and Battery Technology
Battery Management System Protection
The integrated Battery Management System Protection helps monitor battery operating conditions and improves system safety during daily operation.
Protection functions include:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short circuit protection
- Temperature protection
- Voltage protection
These protection functions help maintain stable battery operation by monitoring important battery parameters and reducing risks caused by abnormal conditions.
Battery Cell Quality
The 10.24kWh home battery storage system uses Lithium Iron Phosphate (LiFePO4) battery chemistry, which is widely applied in energy storage solutions due to its reliability and stability.
Battery quality advantages include:
- Reliable LiFePO4 battery chemistry
- Stable battery cell performance
- Professional testing process
- Long-term operational stability
VoltCrave Power focuses on strict production control and battery testing procedures to ensure consistent product quality for global customers.
04 · Simple Operation and Accessories
The system is designed for simple installation and convenient operation. The integrated structure supports plug and play installation, reducing setup complexity for installers.

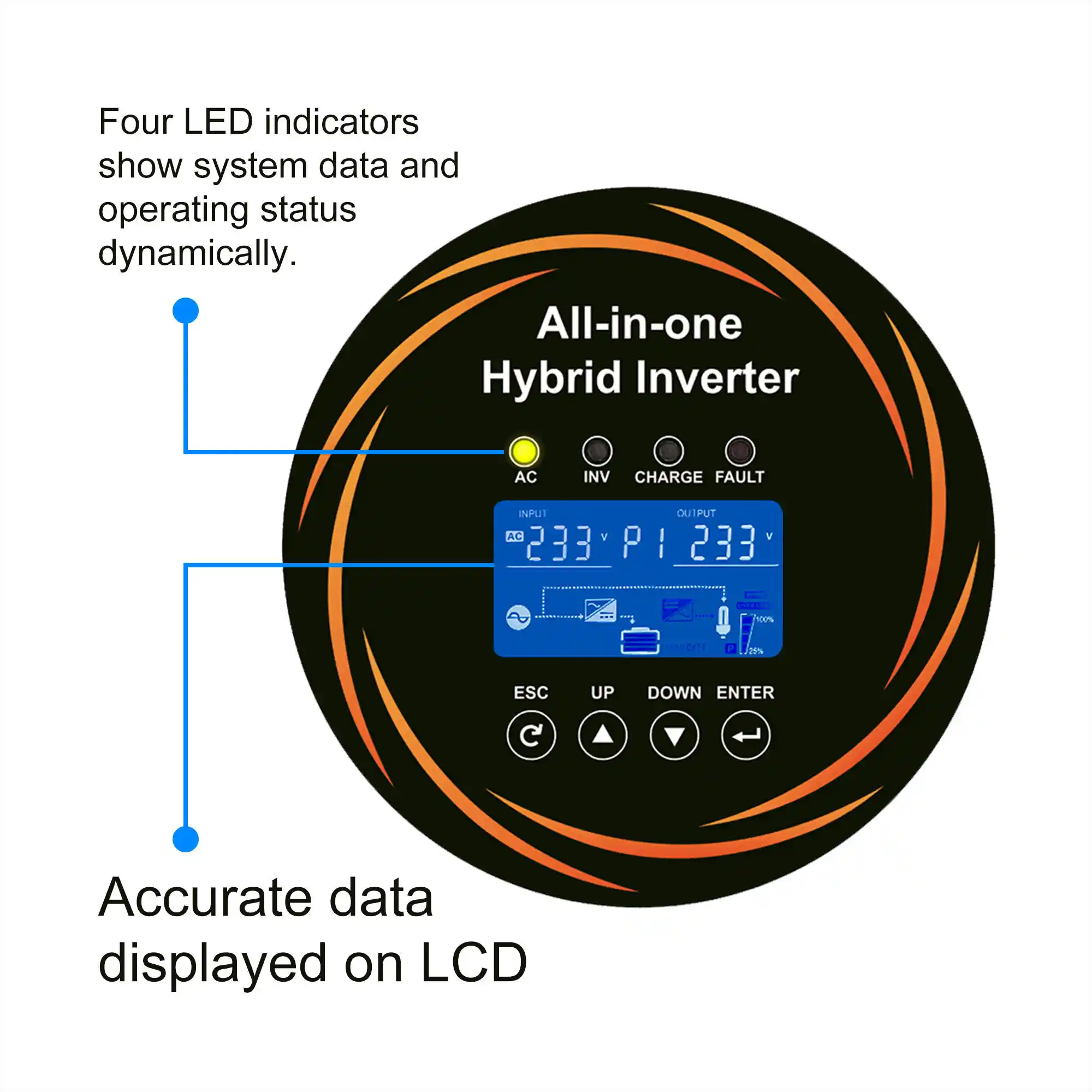

The LCD display allows users to monitor system operation information conveniently. The charging operation is designed for easy daily use in residential environments.
Included accessories:
- National standard charging cable ×1
- User manual ×1
Packaging information:
- Cabinet size: 1040×460×240mm
- Carton package size: 1050×470×250mm
- Wooden box package size: 1060×480×260mm
- Total weight: 99.8kg
For B2B partners, VoltCrave Power provides OEM packaging available and customized solutions available to support different market requirements.
05 · Why Choose VoltCrave Power
Selecting the right supplier is essential for businesses entering the energy storage market. Compared with ordinary suppliers that may experience inconsistent quality, limited customization, and weak after-sales support, VoltCrave Power focuses on providing stable manufacturing and professional service.
Manufacturer Experience
VoltCrave Power has experience in battery energy storage manufacturing and supports global partners with reliable battery solutions.
Quality Control and Battery Testing
Each product follows controlled production processes, including battery testing and system inspection to maintain consistent quality.
OEM/ODM Service
VoltCrave Power provides OEM/ODM service, OEM packaging available, and customized solutions available for distributors and energy companies.
Global Supply Capability
With stable production capability and professional support, VoltCrave Power delivers reliable energy storage solutions worldwide.
For companies searching for professional suppliers of the 10.24kWh LiFePO4 All-in-One ESS, VoltCrave Power provides stable production, reliable battery solutions, and professional support to help partners achieve long-term business growth.
