01 · Overview
The AL-Vertical 10KW.H is a 10kWh residential energy storage system designed for home solar storage, backup power, and residential electricity management. It integrates a 6KW hybrid all-in-one inverter with two 5.12kWh A-grade lithium iron phosphate battery packs, creating a clean vertical energy storage solution for household and residential solar projects.
As an All-in-One Residential ESS, this system is suitable for homeowners, solar installers, energy storage distributors, EPC contractors, and buyers searching for a dependable home battery storage supplier. With 210V-230V AC output, 50Hz/60Hz frequency support, 120V-500V DC input, and 6000W max power, it provides a practical configuration for home backup power, solar self-consumption, and residential energy storage projects.
02 · Key Features
10kWh-Class Residential Storage Capacity
The system uses two 5.12kWh lithium iron phosphate battery packs, providing a 10kWh-class energy storage solution for home use. This capacity is suitable for residential solar storage, backup power, and daily energy management.
- 5.12kWh battery pack x 2pcs
- 10kWh-class residential energy storage
- A-grade lithium iron phosphate battery
- Suitable for solar self-consumption
- Practical for home backup power projects
6KW Hybrid All-in-One Inverter
The integrated 6KW hybrid all-in-one inverter supports residential energy conversion and backup power applications. Its all-in-one design helps reduce system complexity for installers and project buyers.
- 6KW hybrid all-in-one inverter
- Max AC output power: 6000W
- AC output: 210V-230V
- Frequency: 50Hz/60Hz
- Suitable for residential solar storage systems
Wide DC Input for Solar Applications
The system supports 120V-500V DC input and 6000W max DC input power, making it suitable for residential solar energy storage projects. This wide input range gives installers more flexibility for different household solar configurations.
- DC input range: 120V-500V
- Max DC input power: 6000W
- Suitable for solar energy storage
- Designed for home backup power
- Practical for installer and EPC channels
A-Grade LiFePO4 Battery Packs
The system uses A-grade lithium iron phosphate battery packs with 3.2V 100Ah cells and 16S1P structure. LiFePO4 chemistry is widely used in residential energy storage because it supports stable long-term operation.
- A-grade LiFePO4 battery packs
- 3.2V 100Ah cell specification
- 16S1P battery structure
- Two battery packs included
- Suitable for residential ESS applications

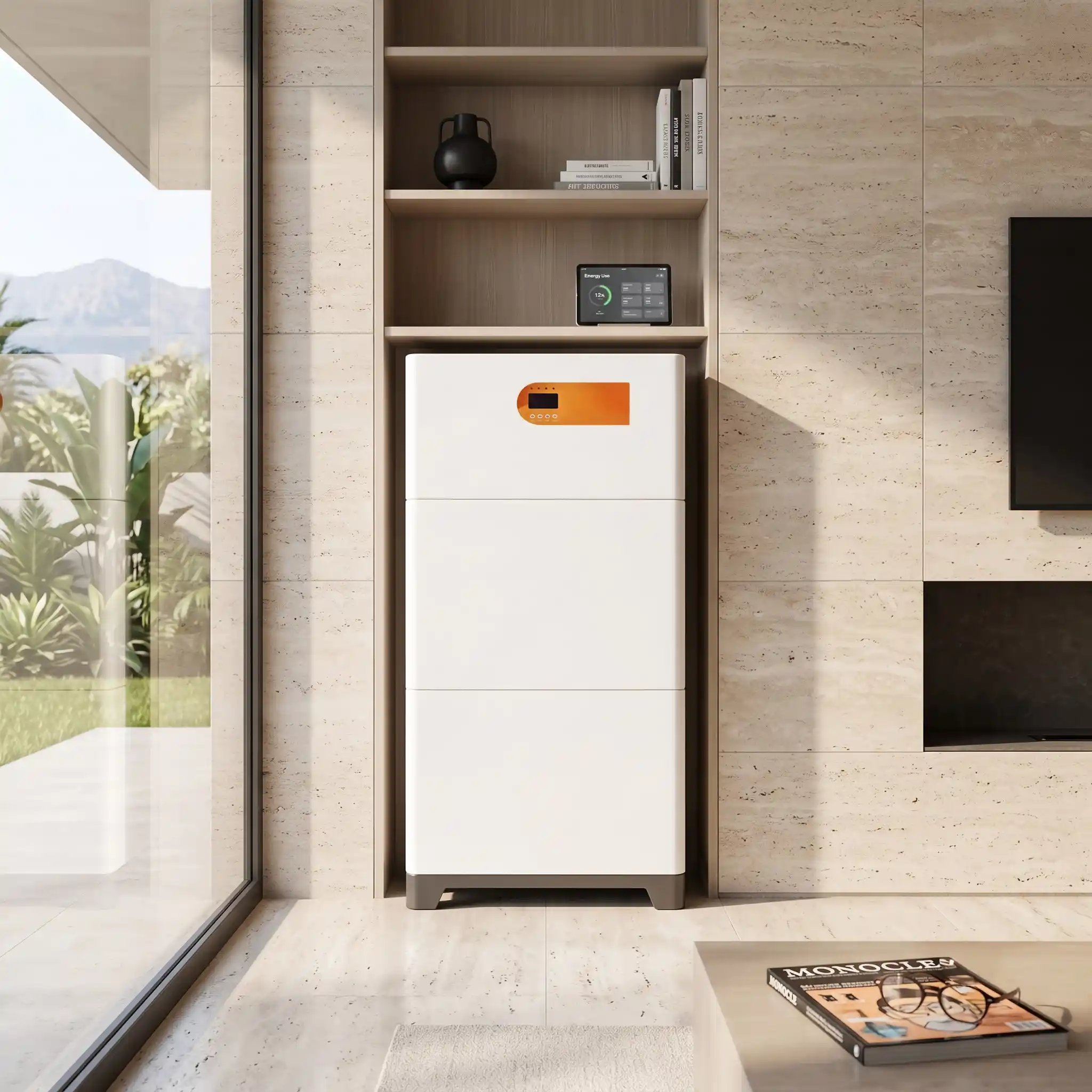

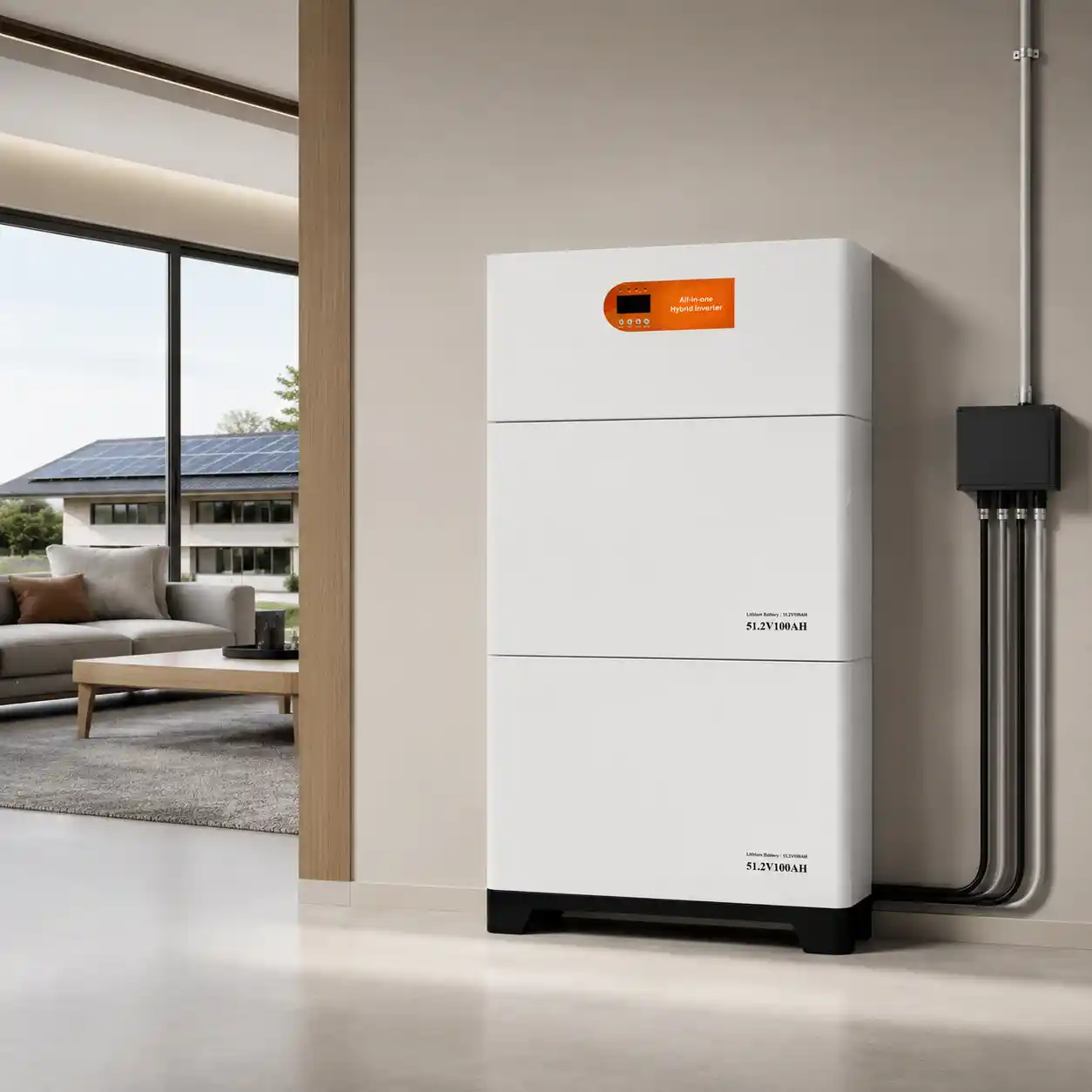

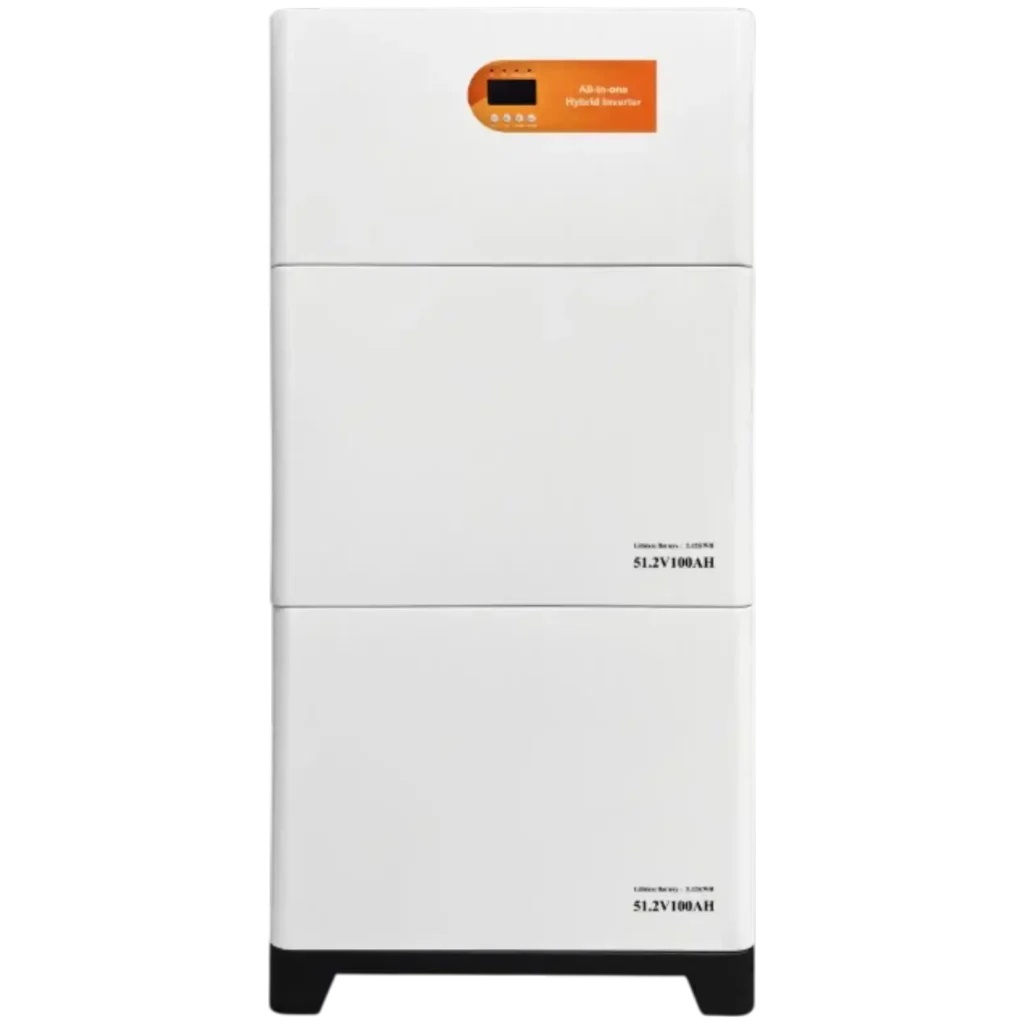

Vertical All-in-One System Design
The vertical structure combines the inverter, battery packs, and base into one residential energy storage system. This design is suitable for home environments where space saving, clean appearance, and easier installation planning are important.
- All-in-One Residential ESS structure
- Vertical integrated design
- Inverter and battery modules in one system
- Suitable for residential buildings and villas
- Clean product appearance for home use
B2B Packing and Project Supply
For B2B customers, packing size and gross weight are important for logistics, warehousing, and project planning. This system provides clear packing information for the battery packs, UN wooden boxes, and inverter with base.
- Battery packing size: 670 x 500 x 285mm x 2pcs
- UN wooden box size: 680 x 510 x 300mm x 2pcs
- Inverter + base packing size: 670 x 500 x 285mm
- Total gross weight: 17.3kg + 66.05kg + 66.05kg
- Suitable for bulk delivery and residential project supply
03 · BMS Protection
The BMS protection system is designed to support safe and stable charging and discharging in residential energy storage applications. For home ESS systems, key protection functions generally include short circuit protection, over-current protection, over-voltage protection, under-voltage protection, overload protection, and over-temperature protection. These protections help reduce risks during long-term daily operation.
The battery section uses A-grade lithium iron phosphate cells with 3.2V 100Ah specification and 16S1P structure. LiFePO4 battery chemistry is suitable for residential storage because it offers stable performance and strong safety characteristics. For B2B buyers, clear battery configuration helps improve customer trust and supports easier promotion in home solar storage markets.
04 · Simple Operation
This all-in-one ESS system is designed for professional installation and simple daily use after setup. The integrated inverter and battery structure helps reduce external system complexity and supports residential applications such as solar storage, home backup power, and household energy management.
For project supply, the system can be delivered with battery packaging, UN wooden box packaging, inverter and base packaging, and user documentation according to order requirements. For B2B orders, VoltCrave Power can support OEM packaging, product label customization, manual customization, branding support, and project configuration assistance.
05 · Why Choose VoltCrave Power
Compared with generic residential ESS suppliers, VoltCrave Power focuses on practical system configuration, A-grade LiFePO4 battery solutions, hybrid inverter integration, clear project supply information, and OEM/ODM support. This 10kWh residential energy storage system combines dual 5.12kWh battery packs, a 6KW hybrid all-in-one inverter, 120V-500V DC input, 210V-230V AC output, and B2B-ready packing details. For solar installers, distributors, EPC contractors, and energy storage brands, VoltCrave Power provides a reliable All-in-One Residential ESS solution for long-term residential market development.
