What does Ah mean on a battery? Ah stands for ampere-hour, a unit of electrical charge capacity. A 100Ah battery can theoretically provide 100A for one hour, 50A for two hours, or another equivalent current-time combination under defined conditions.
However, Ah alone does not tell you how much energy a battery stores.
For energy storage buyers, the missing variable is battery voltage. A 12.8V 100Ah battery and a 51.2V 100Ah battery both carry a 100Ah rating, but their nominal energy capacities are very different.
That is why distributors, installers, system integrators, and project buyers should compare Ah, voltage, Wh or kWh, usable capacity, and power capability together rather than selecting a battery based on amp-hours alone.
What Is Ah and Why Is It Not Enough to Compare Batteries?
Ah, or ampere-hour, describes how much electric charge a battery can store and deliver under specified conditions.
The basic relationship is:
Ah = Current (A) × Time (h)
For example, a battery rated at 100Ah represents 100 amp-hours of charge capacity.
The problem begins when two batteries have the same Ah rating but operate at different voltages.
Consider these three LiFePO4 battery configurations:
| Battery Specification | Rated Capacity | Nominal Energy |
|---|---|---|
| 12.8V 100Ah | 100Ah | 1.28kWh |
| 25.6V 100Ah | 100Ah | 2.56kWh |
| 51.2V 100Ah | 100Ah | 5.12kWh |
All three batteries are rated at 100Ah.
Yet the 51.2V battery stores four times the nominal energy of the 12.8V battery.
This is why asking only:
“How many Ah is this battery?”
is not enough for an energy storage project.
A more useful question is:
What are the battery’s nominal voltage, Ah rating, and total energy capacity in kWh?
Ah vs Wh vs kWh: What Is the Difference?
Ah, Wh, and kWh describe related but different battery characteristics.
| Unit | What It Measures | Why It Matters in Energy Storage |
|---|---|---|
| Ah | Electrical charge capacity | Useful for describing cells and battery modules |
| Wh | Electrical energy | Combines voltage and Ah into an energy value |
| kWh | Electrical energy | Common capacity unit for ESS and battery banks |
| kW | Power | Shows how quickly energy can be delivered to a load |

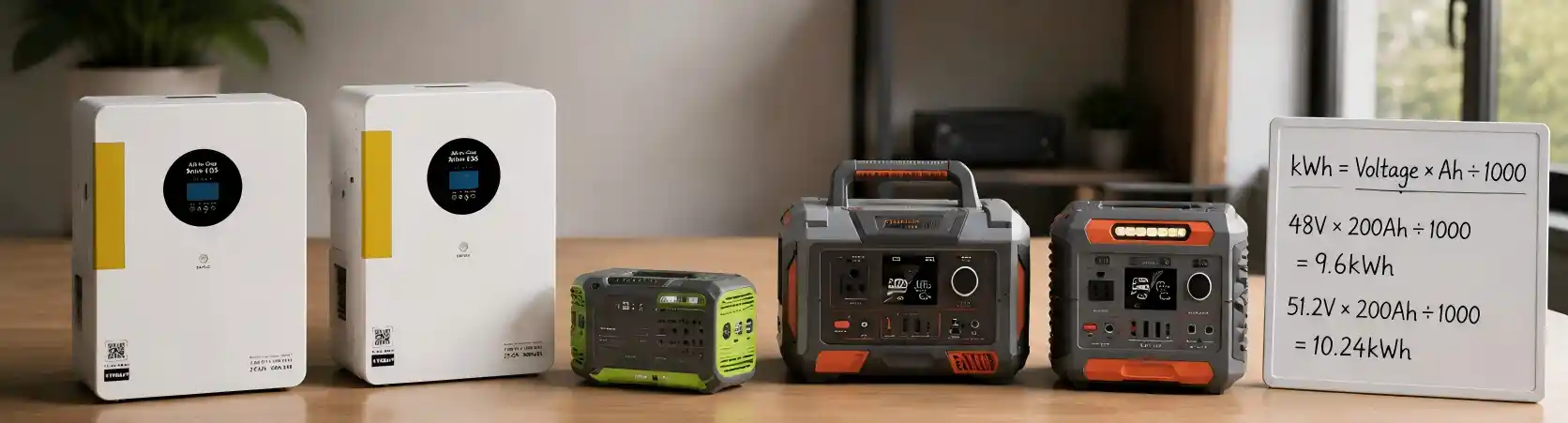

The conversion is straightforward:
Wh = Nominal Voltage × Ah
and:
kWh = Nominal Voltage × Ah ÷ 1000
For a common 51.2V 100Ah LiFePO4 rack battery:
51.2V × 100Ah = 5,120Wh
or:
5.12kWh
This 5.12kWh figure is usually more useful than 100Ah when comparing the energy capacity of different battery systems.
Why the Same 100Ah Rating Can Mean Very Different Battery Capacity
One of the most common mistakes in battery comparison is assuming that a higher Ah rating automatically means a larger battery.
It does not.
For example:
12.8V × 200Ah = 2.56kWh
while:
51.2V × 100Ah = 5.12kWh
The first battery has twice the Ah rating but only half the nominal energy.
This matters when reviewing battery specifications or supplier quotations.
If Supplier A offers a 200Ah battery and Supplier B offers a 100Ah battery, the Ah number alone does not tell you which system stores more energy.
You first need to know the operating voltage.
This is especially important when comparing:
- low-voltage batteries
- 48V-class LiFePO4 systems
- rack-mounted batteries
- telecom backup batteries
- residential ESS
- higher-voltage commercial storage systems
For cross-system comparison, kWh provides a much clearer picture of stored energy than Ah alone.
Nominal Capacity vs Usable Battery Capacity
Even kWh needs context.
A battery may be advertised as 5.12kWh, 10kWh, or 20kWh, but that figure normally represents nominal battery energy.
It does not automatically mean all of that energy will be available to the connected load under every operating condition.
Nominal battery capacity
Nominal capacity is calculated from the rated battery voltage and Ah capacity.
For example:
51.2V × 100Ah = 5.12kWh nominal
It provides a useful standardized value for comparing battery sizes.
Usable battery capacity
Usable capacity is the portion of nominal energy that can actually be used within the system’s permitted operating range.
It may be influenced by:
- configured state-of-charge window
- permitted depth of discharge
- BMS protection limits
- low-voltage cutoffs
- battery temperature
- battery condition
- reserve settings
- inverter and system losses
For this reason:
Nominal kWh and usable kWh should not be treated as the same specification.
This distinction becomes particularly important when a project has a defined backup-runtime requirement.
Two batteries with the same nominal kWh may provide different practical results if their operating limits, BMS settings, or system configurations are different.
For B2B comparison, buyers should therefore ask suppliers whether a quoted capacity is:
- nominal energy,
- usable battery energy,
- or estimated delivered energy under a specific system condition.

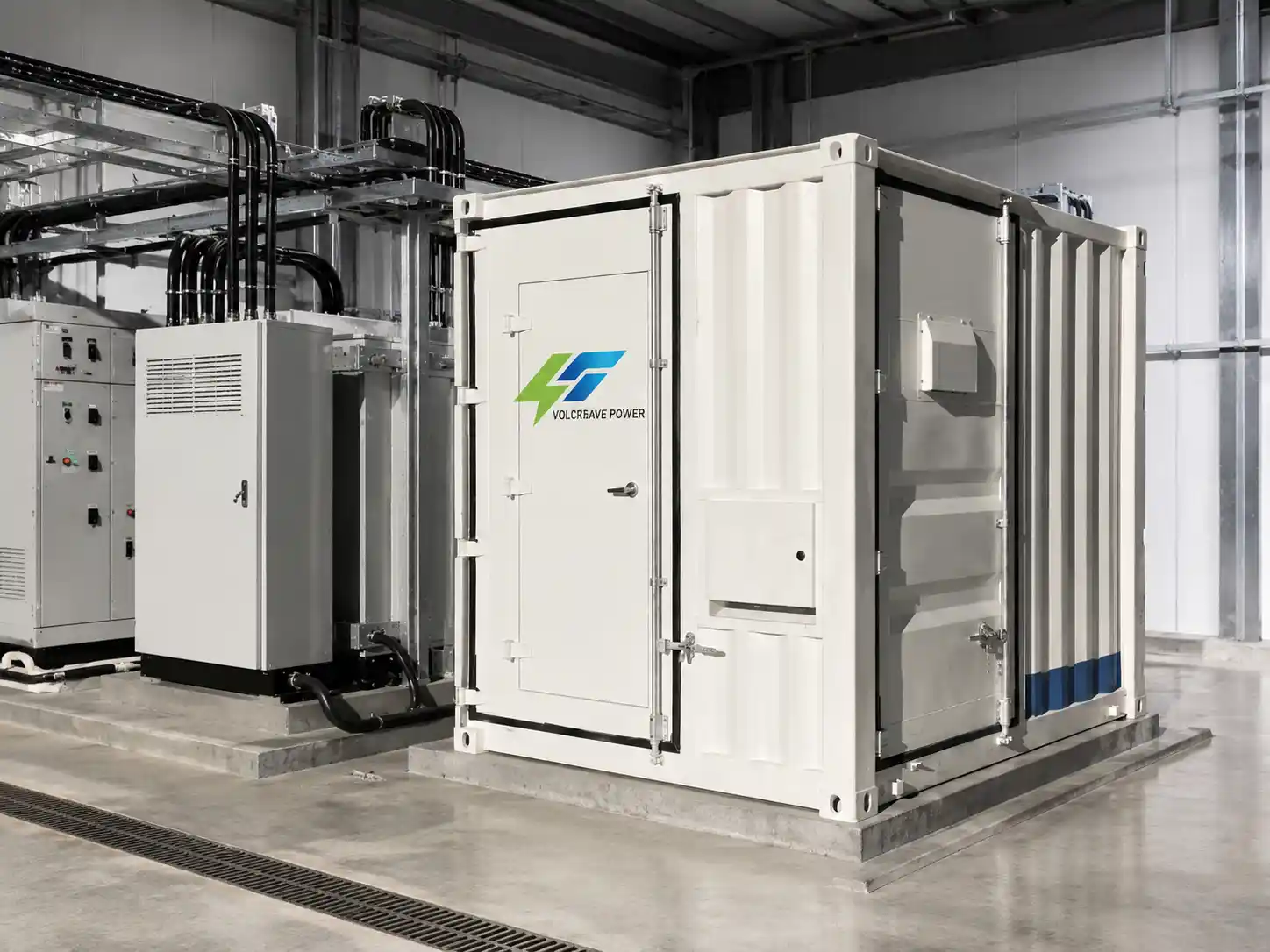

Battery Capacity Is Not Battery Power: kWh vs kW
Another frequent specification mistake is treating battery capacity and battery power as the same thing.
They are not.
kWh answers:
How much energy can the battery store?
kW answers:
How much power can the battery deliver at one time?
A 5.12kWh battery does not automatically mean it can continuously support a 5kW load.
The battery’s power capability can also depend on:
- nominal voltage
- continuous discharge current
- BMS continuous-current limit
- peak-current capability
- number of battery modules
- inverter DC demand
- temperature-dependent limits where applicable
For example, suppose two batteries are both rated at 5.12kWh.
One may have a higher continuous discharge-current capability than the other.
They contain similar amounts of energy, but they may not support the same inverter load.
This is why a battery specification should never be evaluated only by:
100Ah
or even only by:
5.12kWh
For system integration, energy capacity and power capability must be checked separately.
How Battery Capacity Affects Backup Runtime
Battery energy capacity is one of the main factors that determines backup duration.
At a conceptual level:
Estimated Runtime = Usable Battery Energy ÷ Load Power
For example, a battery bank with more usable kWh can generally support the same load for longer.
However, real backup time may also be affected by:
- inverter conversion losses
- inverter standby consumption
- BMS operating limits
- load variation
- temperature
- reserve SOC
- battery condition
This is why simply dividing Ah by load current can become misleading in an AC backup or energy storage system.
For telecom, UPS, server, and commercial backup projects, it is usually better to work from:
load power in kW
and:
usable battery energy in kWh
rather than trying to estimate the entire system from Ah alone.
How Should B2B Buyers Compare Battery Capacity Across Supplier Quotations?
This is where Ah becomes especially important from a procurement perspective.
Two supplier quotations may both advertise:
100Ah LiFePO4 battery
while describing materially different products.
Before comparing price, normalize the specifications.
| Specification | What to Verify |
|---|---|
| Nominal voltage | Determines energy represented by the Ah rating |
| Ah capacity | Shows charge capacity |
| Nominal kWh | Allows basic energy comparison |
| Usable capacity | Better reflects practical available energy |
| Continuous discharge current | Helps determine sustained power capability |
| Peak current | Relevant to short-duration demand |
| BMS current limits | May limit actual system output |
| Operating SOC / DoD range | Affects accessible capacity |
| Module expansion | Determines how total system capacity scales |
| Warranty conditions | May affect permitted operating range |
A quotation showing only:
51.2V / 100Ah
is less useful than one that clearly explains:
- nominal energy
- usable capacity
- continuous current capability
- BMS limits
- operating conditions
The objective is not simply to find the battery with the largest number on the datasheet.
It is to identify the battery configuration that provides the required energy, power, runtime, and system compatibility.
Why Usable kWh Is Often More Useful Than Ah for Procurement
Ah remains an important battery specification, especially at the cell and module level.
But for complete energy storage systems, usable kWh is often more useful for comparing how much energy a system can actually provide.
Consider two suppliers offering batteries with similar Ah ratings.
If their:
- nominal voltages,
- usable SOC ranges,
- BMS current capabilities,
- or system architectures
are different, an Ah-only comparison can create a false equivalence.
For a more meaningful commercial comparison, buyers can evaluate:
price relative to usable energy, together with power capability, cycle-life conditions, warranty, certifications, communication compatibility, and after-sales requirements.
No single metric should determine a supplier decision.
But Ah alone is rarely sufficient.
Battery Capacity Checklist Before Requesting a Quote
Before requesting or comparing an energy storage battery quotation, confirm:
- What is the battery’s nominal voltage?
- What is the Ah capacity?
- What is the nominal energy in kWh?
- What usable capacity is available under the intended operating conditions?
- What is the continuous discharge-current limit?
- What peak current is supported?
- What limits are enforced by the BMS?
- What SOC or DoD range applies to normal operation?
- How does capacity scale when additional modules are installed?
- Is the required inverter/load power within the battery bank’s capability?
- What battery capacity is required for the target backup duration?
This approach makes it much easier to compare energy storage products on equivalent technical terms.
Final Takeaway: Do Not Compare Energy Storage Batteries by Ah Alone
So, what does Ah mean on a battery?
Ah measures electrical charge capacity.
It is an important specification, but it does not independently describe battery energy.
To understand actual battery energy capacity:
Voltage × Ah = Wh
and:
Voltage × Ah ÷ 1000 = kWh
For energy storage projects, buyers should then go one step further and evaluate:
- nominal kWh
- usable battery capacity
- continuous power capability
- BMS current limits
- operating conditions
- required runtime
The most important takeaway is simple:
Ah tells you how much charge a battery is rated to hold. Voltage and Ah together determine nominal energy, while usable kWh and power limits determine how useful that energy is in the actual system.
FAQs
What is Ah in a battery?
Ah stands for ampere-hour, a measure of electrical charge capacity. It describes how much current a battery can theoretically provide over time under specified conditions.
What does 100Ah mean on a battery?
A 100Ah rating describes charge capacity, not total energy by itself. You also need battery voltage. For example, 51.2V × 100Ah equals 5.12kWh of nominal energy.
Is a higher Ah battery always better?
No. Higher Ah does not automatically mean more energy or more power. Voltage, kWh, BMS current limits, usable capacity, and application requirements must also be compared.
What is the difference between Ah and kWh?
Ah measures electrical charge capacity. kWh measures stored energy. To convert Ah to kWh, multiply Ah by nominal battery voltage and divide by 1,000.
Does connecting batteries in series or parallel change Ah?
For identical modules, a series connection increases voltage while Ah remains the same. A parallel connection keeps voltage the same while Ah increases. Total nominal energy depends on the total number of modules used.
